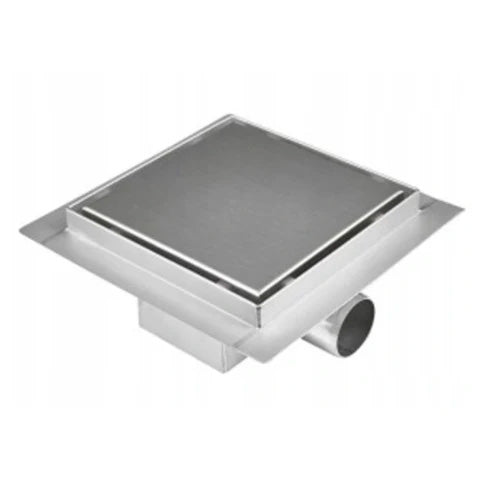

Chrome Linear Square Shower Drain

A Chrome Linear Square Drain (shower gully) is an ideal solution in a modern bathroom with tiles. It is intended for draining water from shower cubicles and open shower spaces. The aesthetic appearance and simplicity are undoubted advantages of linear outflows.

Dimensions:

• The width of 120mm/150mm
• Depth of 59mm
• Material: Stainless steel
• Steel - AISI 304
• Width: 120mm/150mm
• Water throughput: 50L / minute
• Siphon type: Metal

Product Specifications:

• Gutter and grate steel thickness of 1.2mm
• Grate Depth- 12mm
• Linear drainage (full package)
• Feet and sealing collar included
• Grid for tiles - width 120x120mm/150x150mm
• The outflow is equipped with a collar around 2 cm, which facilitates laying the tiles
• Low steel siphon with the possibility of cleaning from the top
• Mounting depth only 52 mm

The set includes:

• A drainage channel with a mounting flange
• Two Sided Grate (optional for pasting tiles)
• Siphon with 40/50 mm outlet with dirt trap with gasket
• Feet for levelling with the possibility of disassembly
• Sealing collar
• Installation instructions
