Wall Hung Toilet Frames & Concealed Cisterns

At Bathroom Store Ireland we stock frames and in-wall cistern kits from Geberit and Grohe in every common height, so there is a fit for compact ensuites, standard family bathrooms and awkward under-window installs alike.

Which frame height do I need?

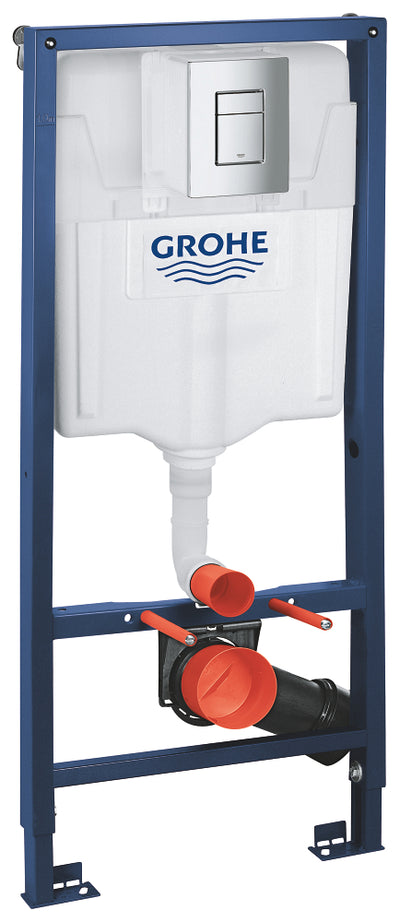

• Standard 112 cm — the default choice for a full-height stud wall. Pick this unless something stops you.
• Mid 98 cm — for a lower boxed-in wall or where a shelf runs above the toilet.

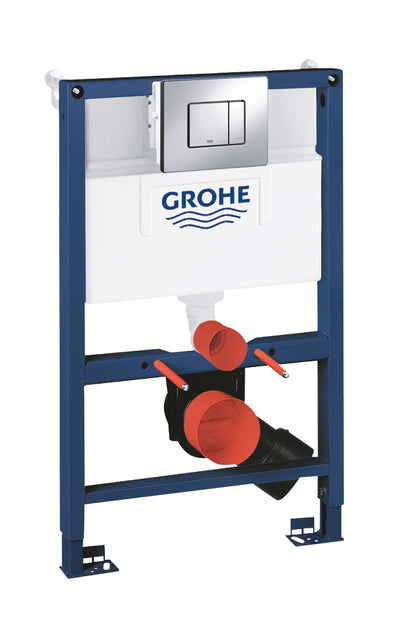

• Low 82 cm — the answer when the frame has to sit under a window.
• Slim 8 cm depth — an ultra-thin 80 mm frame for narrow partitions where you cannot lose floor space.

Frame vs. concealed cistern — what is the difference?

The frame is the load-bearing metal support; the cistern is the water tank clipped inside it. Nearly every kit here ships as a complete frame-plus-cistern unit, so you buy one item rather than sourcing them separately. Check the product spec if you are replacing only one half of an existing system.

What else do I need to order?

1. A frame and concealed cistern kit from this page.
2. A wall hung toilet pan, or a back to wall pan if you would rather the pan sat on the floor.
3. A flush plate in your chosen finish — matte black, white, chrome or brushed gold.
4. A seat, if the pan does not include one. See our toilet seats.

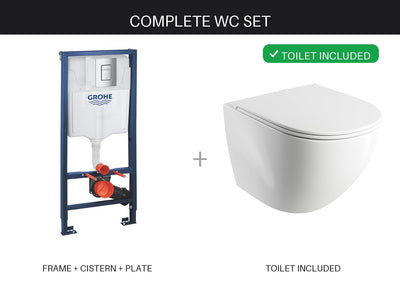

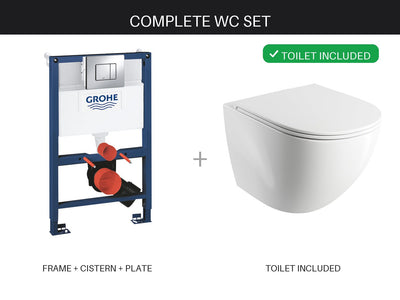

Prefer to buy it as one bundle? Have a look at our ready-matched toilet packages.

Installation and maintenance

The frame is bolted to the floor and the wall, then a stud partition is built around it to conceal the cistern and waste pipe. Once boxed in, the cistern stays fully serviceable — the flush plate lifts out to give access to the valves, so a future repair does not mean opening the wall. Load ratings on these frames are typically 400 kg. We recommend a qualified Irish plumber for the first fix.

Frequently asked questions

Can I fit a concealed cistern in a solid block wall? Yes — either chase a recess into the block or build a false stud wall in front of it. The slim 8 cm frame is designed for exactly this situation.

Will a Geberit frame work with any pan? Almost always. Wall hung pans use standard 180 mm fixing centres and a 90 mm waste connection, so brands mix freely. Double-check the spec sheet on unusual designer pans.

How much wall depth does it take? Allow roughly 15 cm for a standard frame plus board, or about 11 cm with the slim version.

Is a concealed cistern harder to fix than a normal one? No. Everything that wears — the fill valve and flush valve — comes out through the flush plate aperture.

---

Quick summary

Bathroom Store Ireland supplies Geberit and Grohe wall hung toilet frames and concealed cistern kits in 112 cm, 98 cm and 82 cm heights plus a slim 8 cm option. Pair one with a wall hung or back to wall pan and a flush plate for a hygienic, space-saving toilet with nothing on show. Nationwide delivery across Ireland.
