Geberit Omega 98cm Duofix Cistern Installation Frame

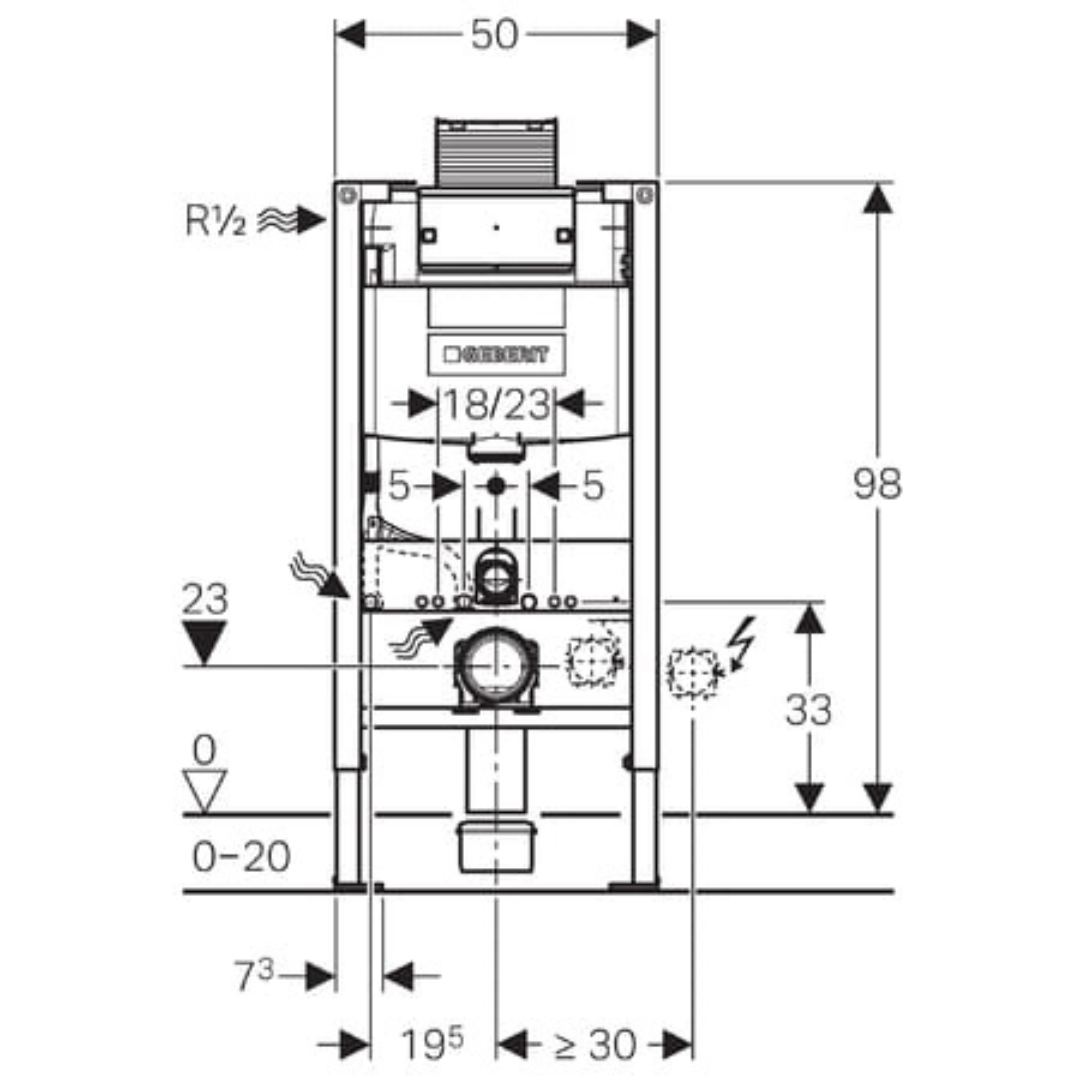

Geberit Omega 98cm Duofix Cistern Installation Frame front specification
Geberit Omega 98cm Duofix Cistern Installation Frame side specification

Geberit Omega 98cm Duofix Cistern Installation Frame

SKU: 111.030.00.1

€480.00 €528.00
save 9%
VAT included. Shipping calculated at checkout.

Geberit Omega 98cm Duofix Cistern Installation Frame Description

Geberit Duofix installation element for wall-hung toilets, 98 cm, with Omega concealed cistern 12 cm

Additional information:

Possibility to set 4 and 2 liter flush

Technical data:

Pressure 10-1000 kPa
Maximum water temperature 25 °C
Factory settings for flushing volume 6 and 3 l
Large volume flushing adjustment range 4.5 / 6 / 7.5 l
Small volume flush adjustment range 3-4 l
Design flow 0.11 l/s
Minimum pressure flow for the design flow of 50 kPa

More Info:

For light installation
For installation in installation walls with partial room height
For installation in Geberit Duofix system walls not at the full height of the room
For wall-hung toilet bowls with connection dimensions in accordance with EN 33:2011
For wall-hung toilet bowls up to 62 cm long
For dual flushing
For height of floor layers 0–20 cm


Features:

Self-supporting frame, powder coated.
Frame with a ø 9 mm drilled hole for mounting in a wooden structure.
Prepared frame for brackets in toilet bowls with a small contact surface.
Brackets for mounting legs, galvanized.
Brackets for mounting legs with adjustable position in the range of 0–20 cm.
Brackets for mounting legs with self-locking function
Reversible
feet Depth of feet suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails
Fixing of the drain elbow without the use of tools with the possibility of adjusting the depth in 6 positions, adjustment range of 45 mm
Acoustic-insulated connection elbow mounting
Concealed cistern with activation from top or front
Concealed cistern with anti-dew insulation
In factory settings, re-flushing is possible immediately
Water connection on the left side or rear left
Protective casing of the inspection opening protects against moisture and dirt
