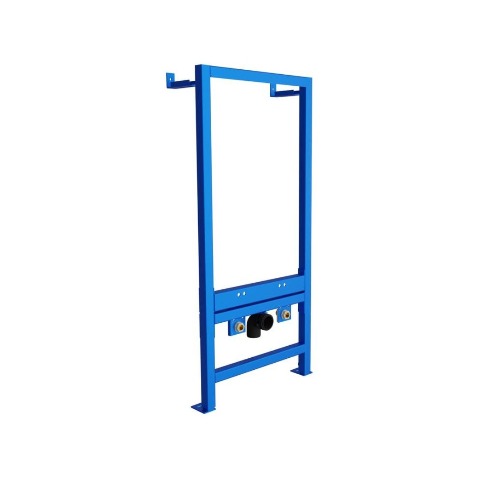

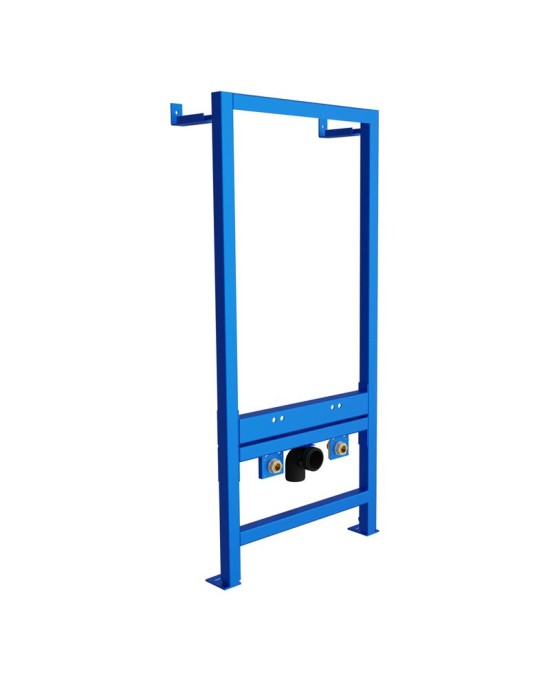

Bidet Support Frame 500mm – Concealed Installation Kit

The 500mm Bidet Installation Frame is a heavy-duty solution for safely mounting a wall-hung bidet while keeping plumbing and supports hidden.
Made from high-quality, corrosion-resistant steel, this frame ensures durability and structural stability for years of reliable use.

Pre-assembled and designed for easy installation, it fits within stud walls or solid wall constructions. Adjustable height and depth settings allow precise positioning and comfort, making it ideal for both new builds and bathroom renovations.

Key Features

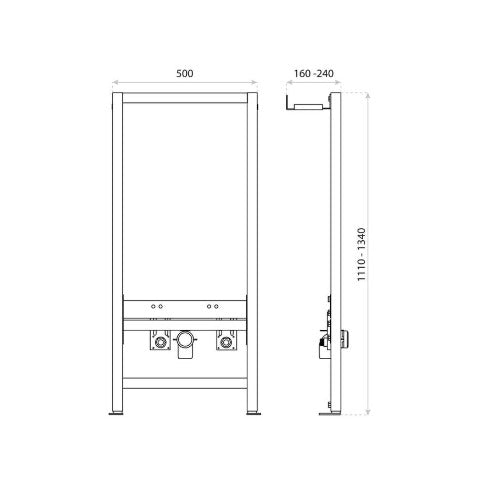

• Frame Width: 500mm

• Frame Height: Adjustable 1110mm – 1340mm

• Frame Depth: Adjustable 160mm – 240mm

• Heavy-duty galvanized steel construction for strength and corrosion resistance

• Height-adjustable fixing bolts for a custom installation

• Compatible with most standard wall-hung bidets

• Designed for concealed plumbing and a sleek modern look

• Pre-assembled for fast and secure installation

Technical Specifications

• Material: Galvanized steel

• Width: 500mm

• Height Range: 1110mm – 1340mm

• Depth Range: 160mm – 240mm

• Installation Type: Suitable for both stud walls and solid wall installations

• Load Capacity: Up to [insert kg if specified]

Why Choose This Frame?

This 500mm bidet installation frame provides a safe, adjustable, and minimalist solution for mounting wall-hung bidets. Its adjustable dimensions ensure a perfect fit, while the concealed design keeps pipework hidden for a clean and modern bathroom aesthetic.
