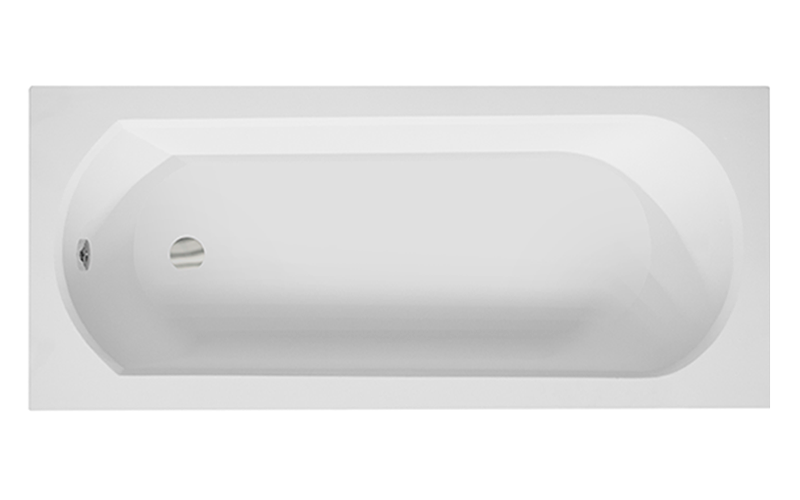

Intrica rectangular acrylic bath with slim 35mm rim, top view

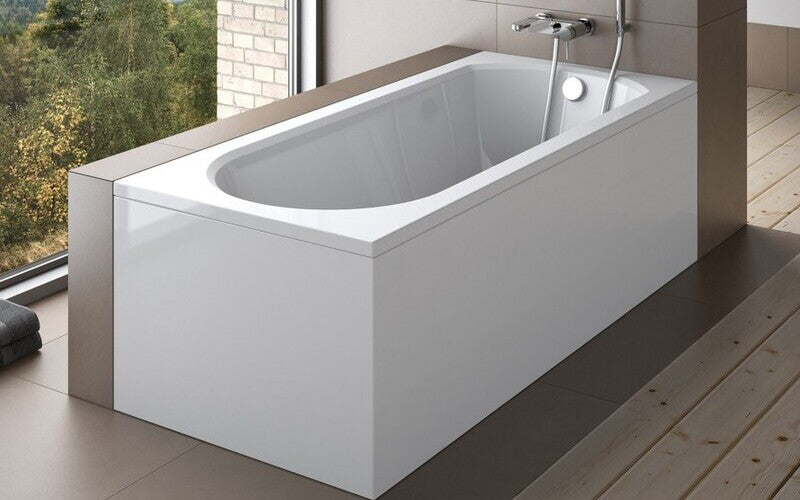

Intrica bath fitted with a white gloss panel in a modern bathroom

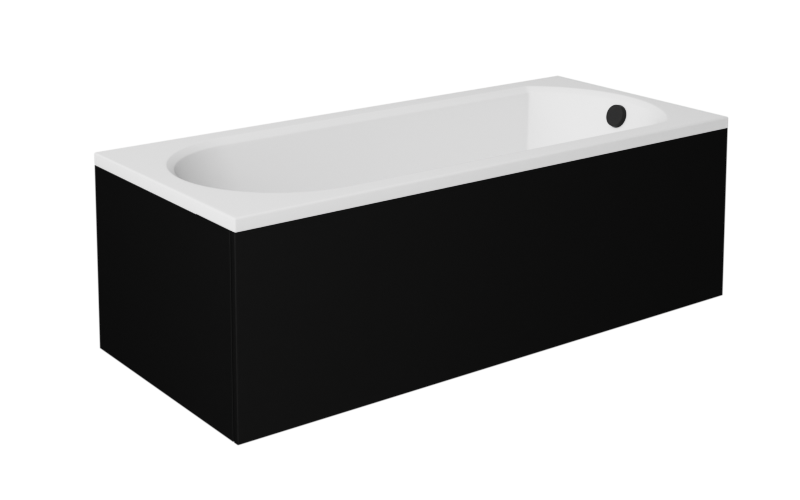

Intrica bath with matt black front panel

Intrica Rectangular Bath with Support Frame

Name: Intrica Rectangular Bath with Support Frame
Brand: Bathroom Store Ireland
SKU: 66004080066909
Price: 395.00 EUR
Availability: InStock

SKU: #WAIN-160-PK

€395

VAT included. Shipping calculated at checkout.

Available to order Estimated delivery: 5–7 working days

Size

1600x750mm 1700x750mm

Have a question before ordering? Message our bathroom experts on WhatsApp. Ask a Question on WhatsApp

Intrica Rectangular Bath with Support Frame Description

The Intrica is a rectangular acrylic bath built for modern bathrooms where clean lines matter. Its sharp, straight-sided geometry and generous 750 mm width give you a roomier bathe than a standard 700 mm tub, while the flat 35 mm rim gives solid support and makes it ideal for fitting a bath screen for showering over the bath.

What's in the box

Bath tub and adjustable support legs only.

✓ Acrylic bath tub
✓ Steel support frame with height-adjustable legs
✓ Fixing hardware for the frame
✗ Bath panel is NOT included — front and side panels are ordered separately
✗ Bath waste and overflow are NOT included — please add a waste to your order
✗ Tap / mixer not included

If you are not sure which panel or waste you need for this bath, give us a call on 042 942 2401 or drop into the showroom in Dundalk and we will put the full set together for you.

Features

Premium sanitary acrylic with good thermal insulation — water stays warm longer
Smooth, antibacterial surface, resistant to scratches, discolouration and UV
Flat 35 mm rim — solid support and screen-friendly
Reinforced steel support frame with height-adjustable legs included
Light enough for two people to carry — under 20 kg with the frame
Suits all standard tap and waste styles
10-year guarantee on shape and surface colour

Dimensions & weight

Nominal size	1600 × 750 mm and 1700 × 750 mm
Actual overall length (1600 model)	1595 mm
Internal length / width at rim	1460 / 585 mm
Internal length at base	1115 mm
Bath height	415 mm
Installed height on frame	555 mm
Rim thickness	35 mm
Overflow	⌀51 mm, 90 mm below the rim
Waste centre	300 mm from the end of the bath
Weight (bath + frame)	approx. 19.7 kg (1600 mm) / 20 kg (1700 mm)

See the technical drawing in the image gallery for the full dimensioned layout.

Specification

Material	Sanitary acrylic
Supplied with	Support frame with adjustable legs
Panel	Sold separately (white gloss or matt black)
Waste & overflow	Sold separately
Guarantee	10 years on shape and surface colour, 2 years on other components — full guarantee terms
