Geberit Monolith Sanitary Module for Wall-Hung WC 101cm

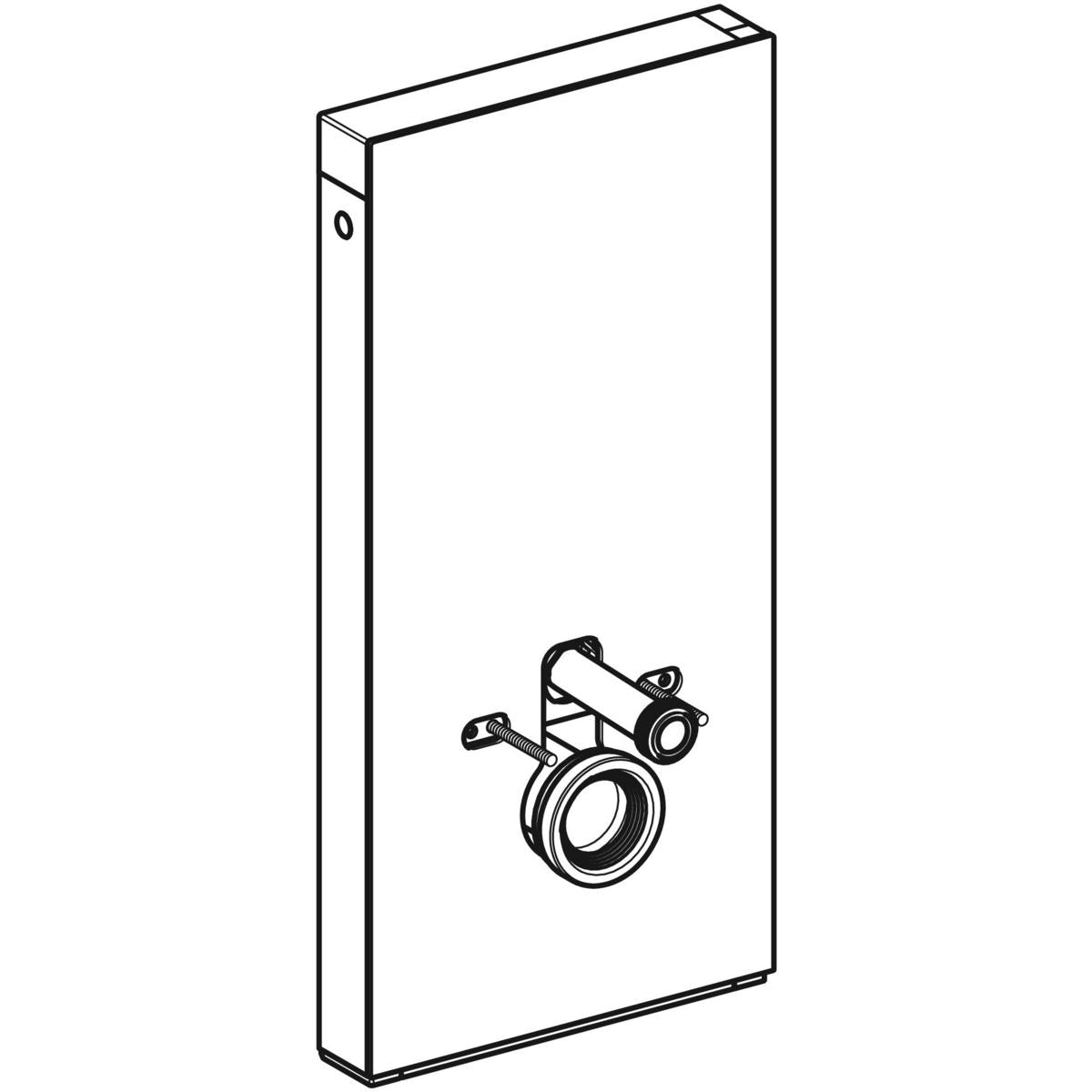

The Geberit Monolith is a complete sanitary module for a wall-hung WC. The cistern, the water connections and the flush actuation are all built into one slim 101 cm unit behind a glass front, so it mounts against a finished wall — no stud wall to build and no tiling to open up. It is the practical way to get the look of a concealed system in a renovation.

Availability: Ordered in from Geberit — contact us for the current lead time.

Please note: the WC ceramic appliance and seat are not included and are ordered separately.

Choose your finish

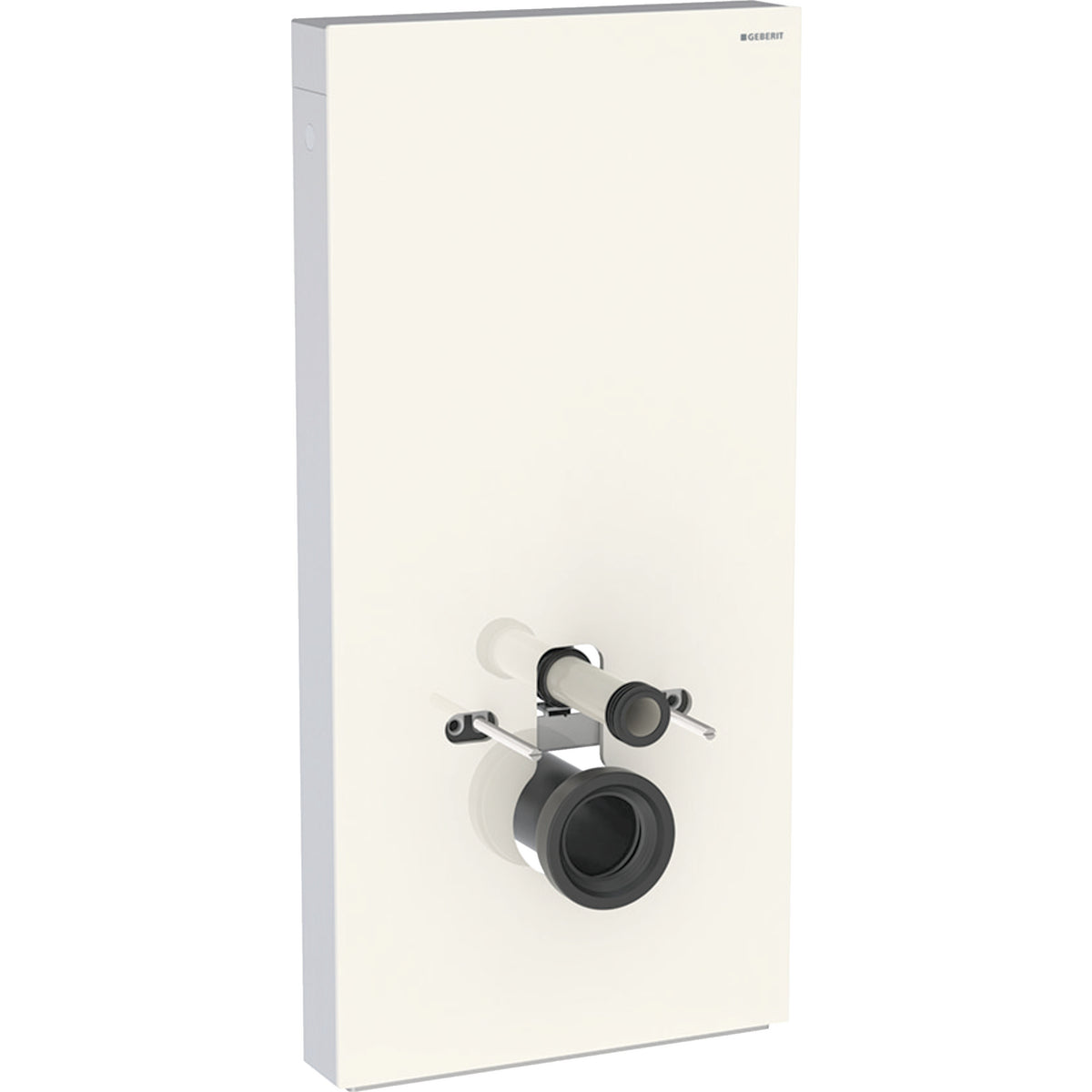

• White glass with brushed aluminium side cladding — art. 131.021.SI.5
• Black glass with black brushed aluminium side cladding — art. 131.021.SJ.6

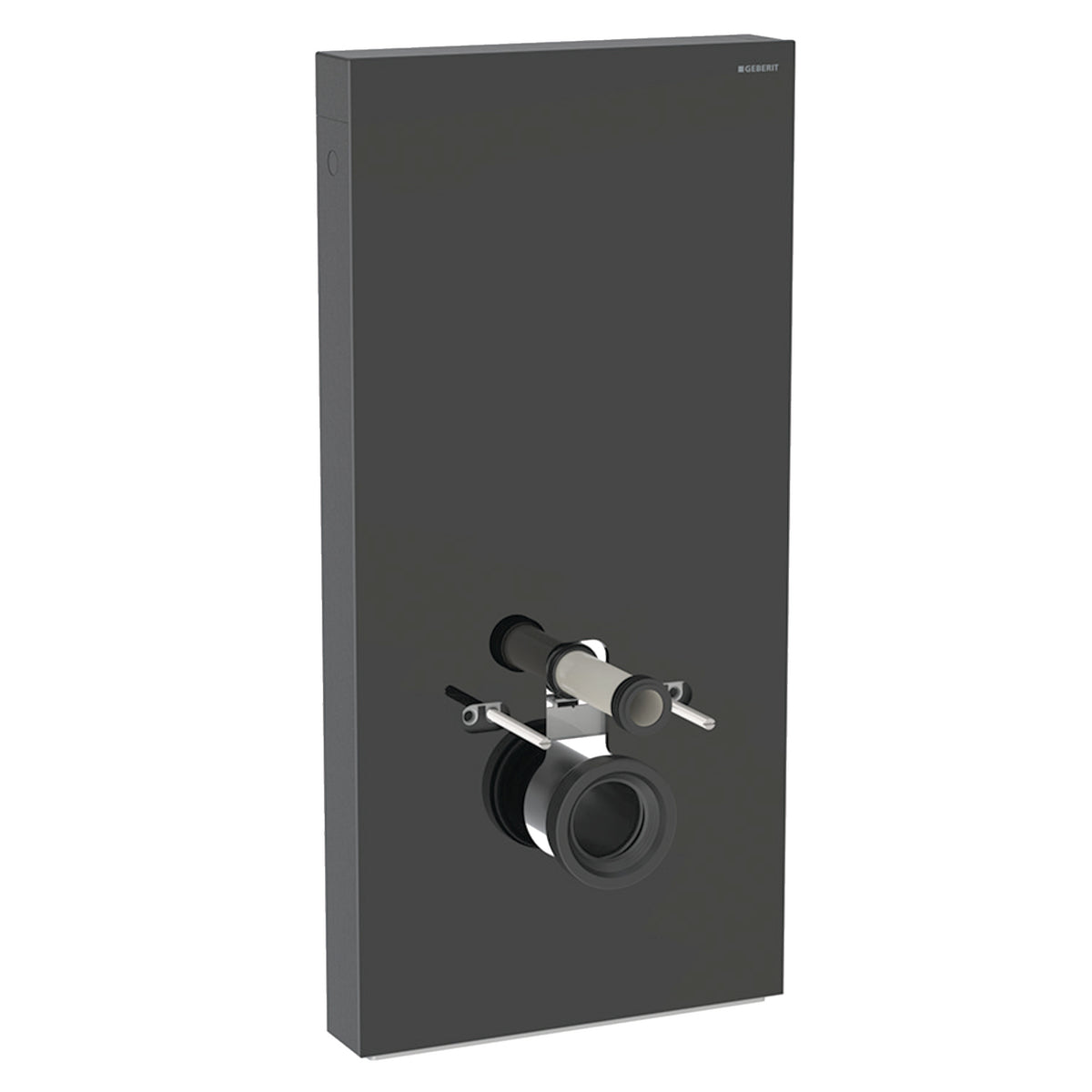

• Lava glass with black brushed aluminium side cladding — art. 131.021.JK.5

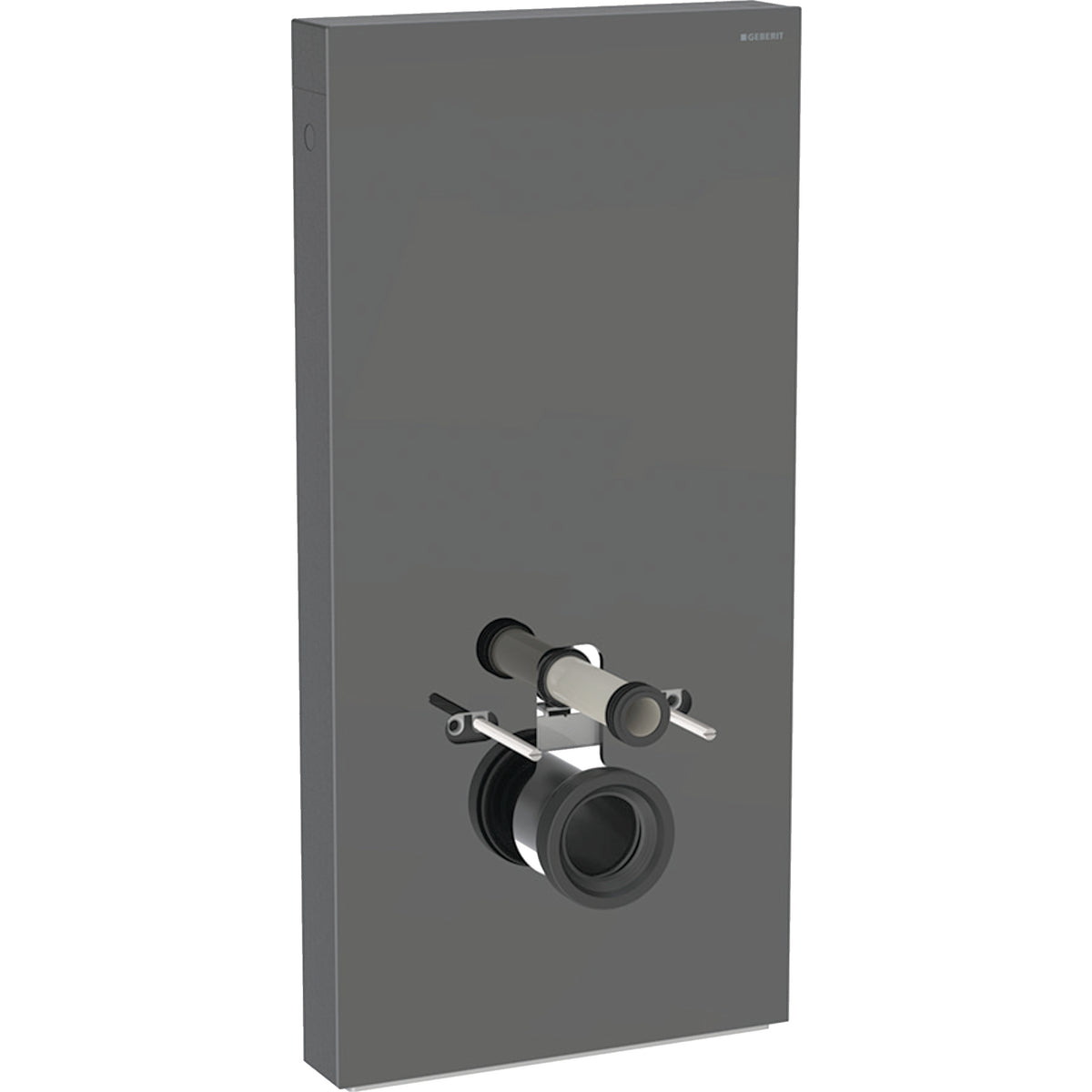

• Sand grey glass with brushed aluminium side cladding — art. 131.021.JL.5

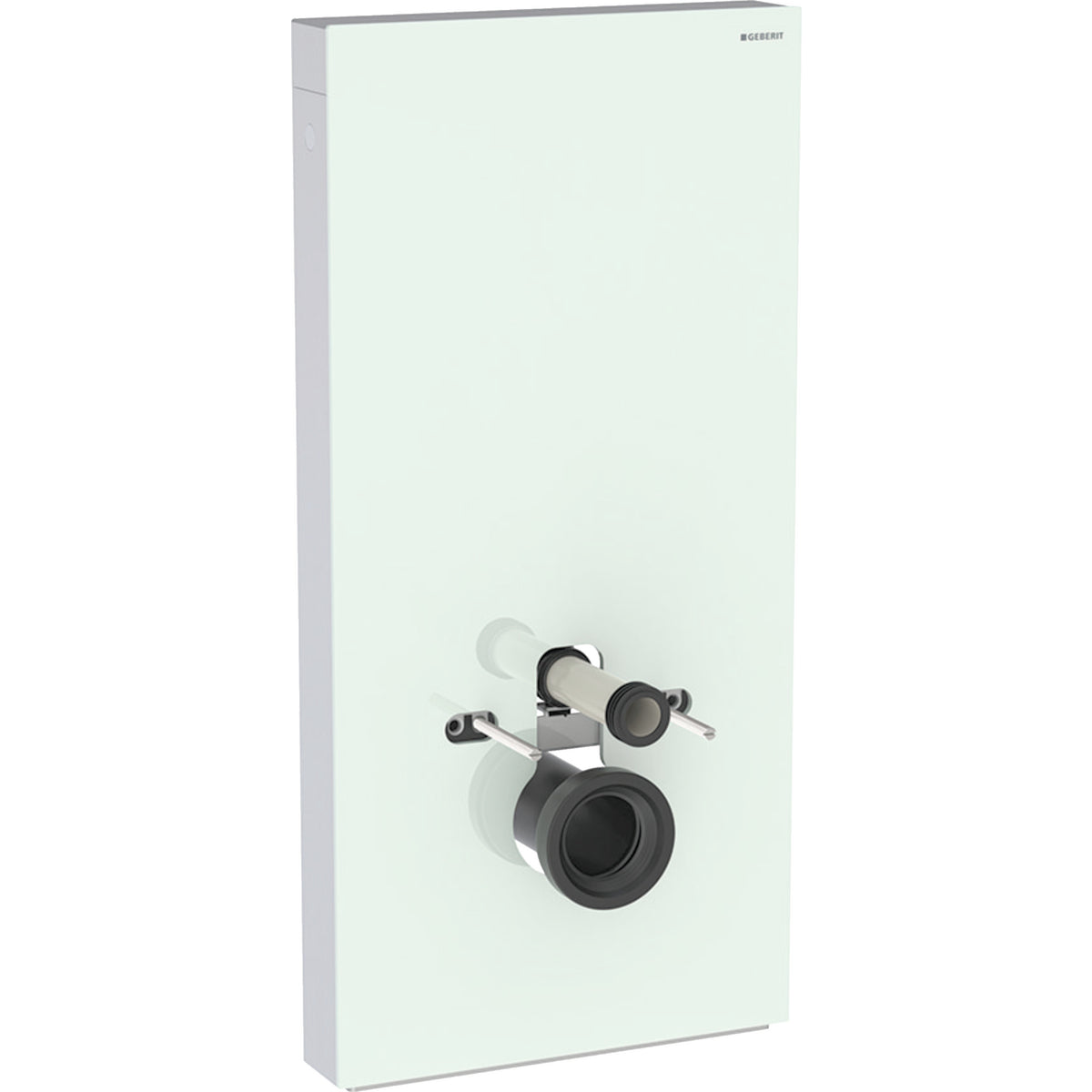

• Mint glass with brushed aluminium side cladding — art. 131.021.SL.5

Glass thickness is 8 mm on every finish except mint, which is 6 mm. Everything else — cistern, flush, connections and dimensions — is identical across the range.

Key features

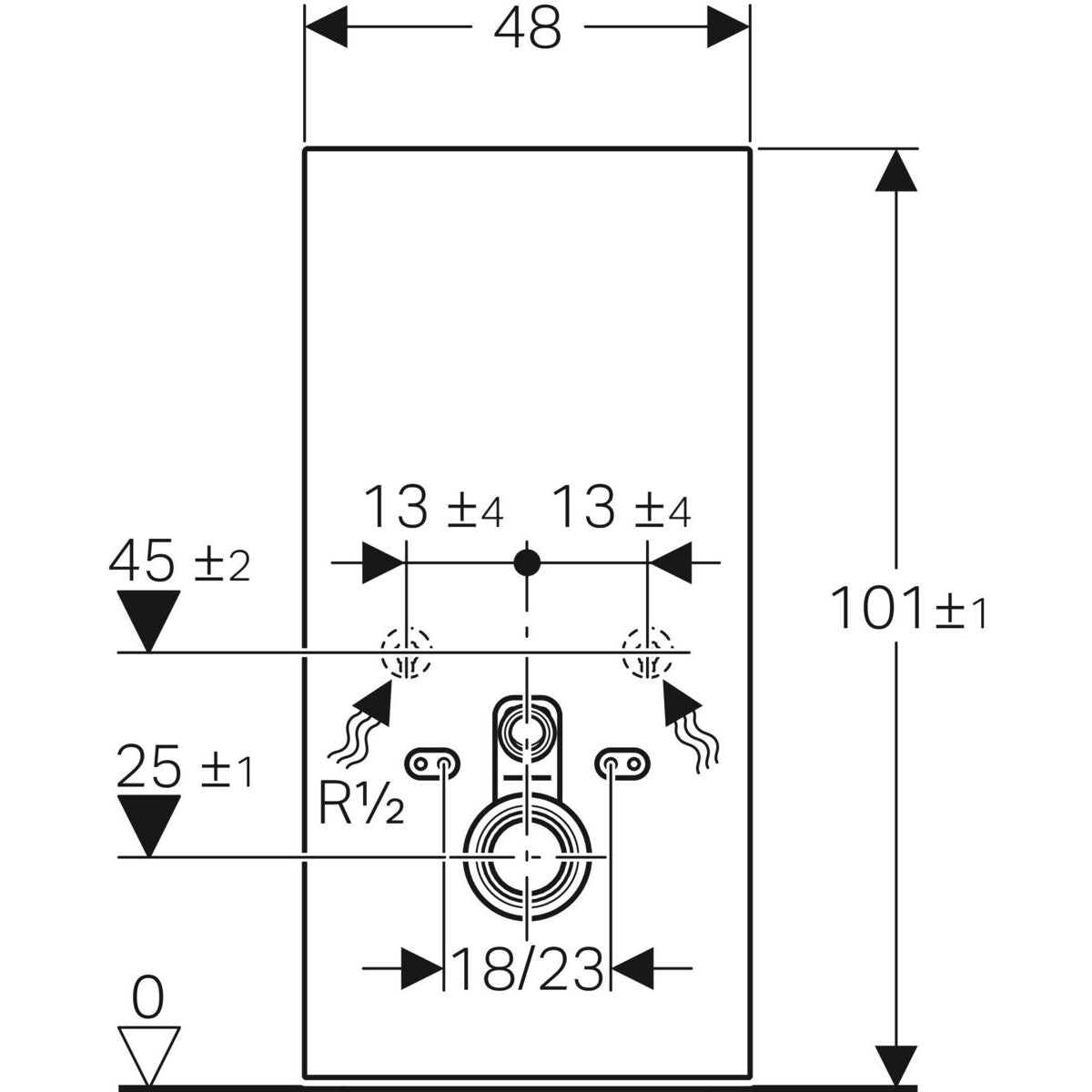

• Sanitary module for wall-hung WC, 101 cm high, 48 cm wide
• Dual flush, factory set to 6 / 3 litres (full flush adjustable 4.5–6 l)
• Self-supporting — mounts on a finished floor, in front of drywall or solid walls
• Height-adjustable up to 7 cm; WC fastening height 35 ± 1 cm
• Cistern fully insulated against condensation
• Water supply connection on the bottom; left or right possible with accessories
• Components in contact with drinking water are lead-free
• Ready for Geberit AquaClean shower toilet complete solutions (enhancement solutions with accessories)

Technical data

• Flow pressure 0.1–10 bar
• Max. water temperature 25 °C
• Flush volume, factory setting 6 / 3 l — small flush 3 l

Supplied with

• Water supply connection set with 2 angle stop valves, 1/2"
• Flush bend extension 160 mm
• EPDM sleeve ø 44 / 55 mm
• PE-HD straight connector ø 90 mm and adaptor socket ø 90 / 110 mm
• 2 threaded rods M12, sound insulation set, base cover and fastening material

Brand: Geberit | Range: Monolith, 101 cm, glass front

Geberit data sheets (PDF): White · Black · Lava · Sand grey · Mint

Straight from Geberit

• This module in the official Geberit product catalogue — all five finishes, full technical data, accessories and the installation film
• Geberit's official YouTube channel
