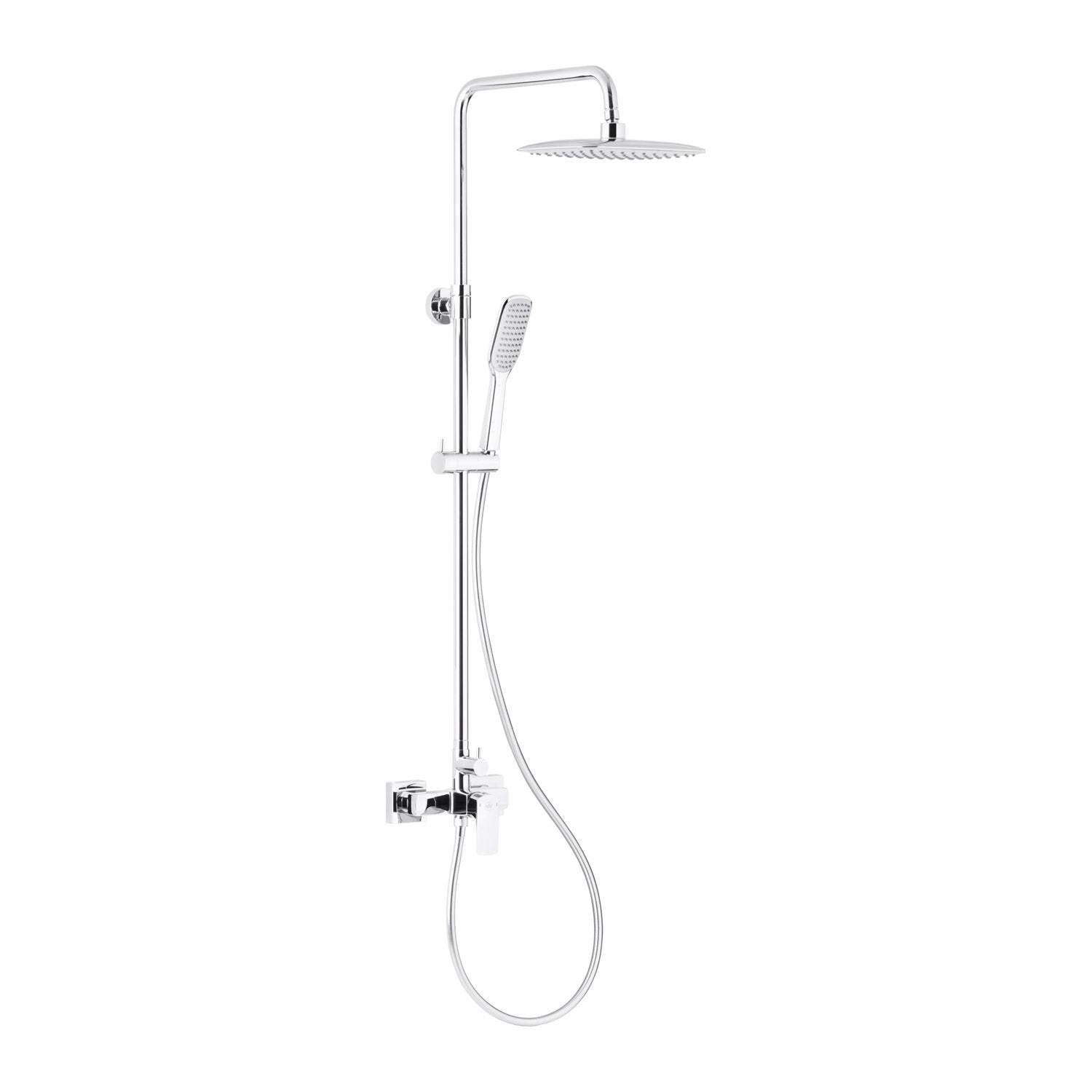

KFA Mokait rainshower set with manual mixer in chrome

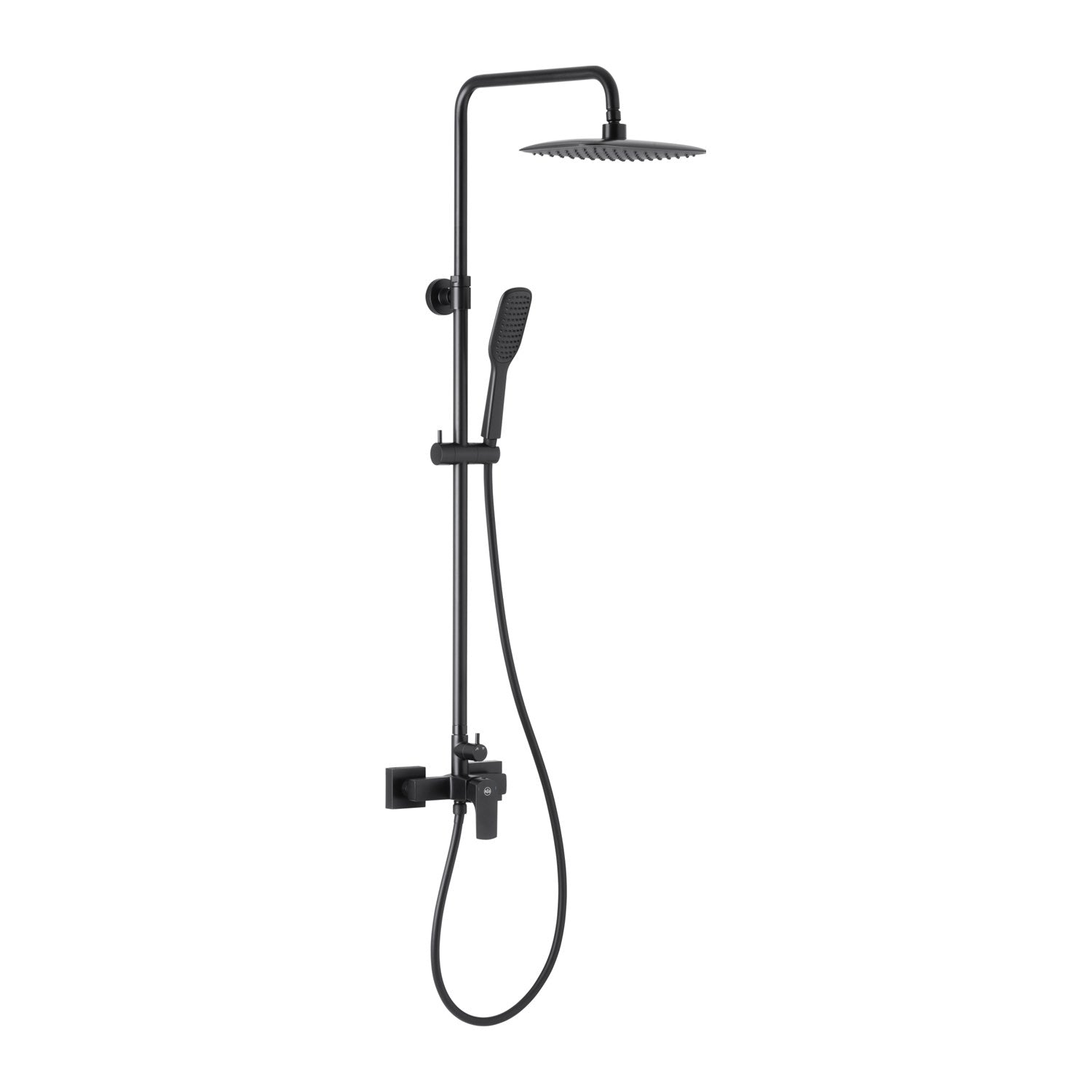

KFA Mokait rainshower set with manual mixer in matt black

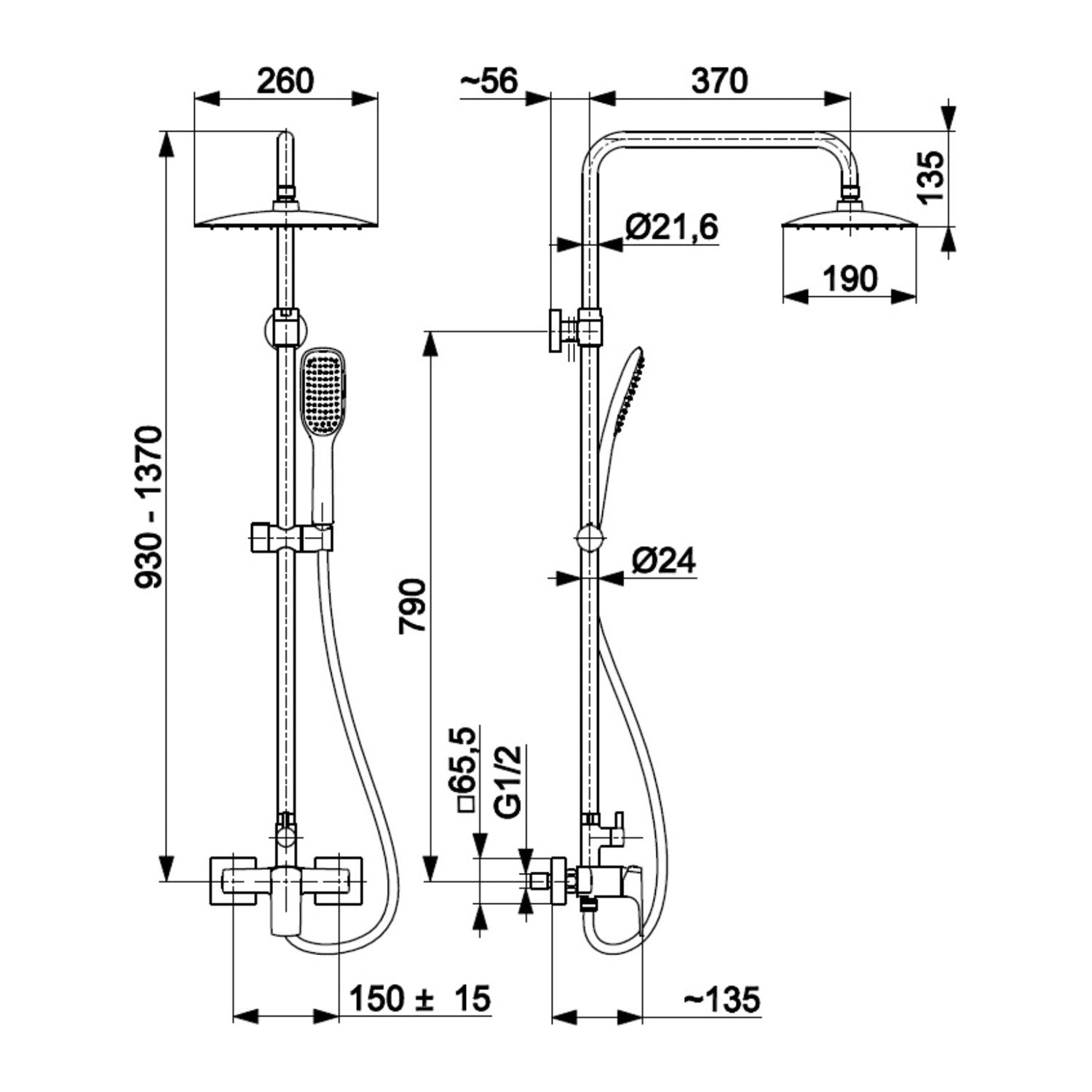

KFA Mokait rainshower set 5536-910 technical drawing with dimensions

Mokait Rainshower Set with Manual Shower Mixer

Name: Mokait Rainshower Set with Manual Shower Mixer
Brand: KFA
SKU: 65699247030621
Price: 268.00 EUR
Availability: InStock

SKU: 5536-910-00

€268

VAT included. Shipping calculated at checkout.

Available to order Estimated delivery: 2–3 weeks

Delivery from €13.95

Colour

Chrome Black

Have a question before ordering? Message our bathroom experts on WhatsApp. Ask a Question on WhatsApp

Mokait Rainshower Set with Manual Shower Mixer Description

A complete exposed shower column in the angular Mokait range: a rectangular 260 × 190 mm rain head on a rigid bar, a single-jet hand shower on a 1500 mm PVC hose, and a manual mixer at the bottom. The rectangular head is the point of difference — it matches the square plates and flat lever, where every other KFA column in this price band uses a round head.

It bolts onto existing 150 ± 15 mm feeds, so it replaces an old bar shower in an afternoon with no tiling; eccentrics, rosettes and the bar bracket are supplied. This is the manual version — you set the temperature by hand and it will move if a tap runs elsewhere, so for a household with a small child or an older user pick a thermostatic column instead. Flow is modest at 8.3 l/min from the head and 8.6 from the handset, which means it works on an unpumped gravity system rather than needing mains pressure.

Specification

Product code	5536-910
Material	Brass
Type	Wall-mounted exposed rainshower set, manual mixer
Control element	Ø35 mm ceramic cartridge
Shower head	Articulated, 260 × 190 mm
Hand shower	1 spray pattern
Flow rate	Shower head 8.3 l/min / hand shower 8.6 l/min
Hose	PVC, 1500 mm
Working pressure	3 bar
Max water temperature	90 °C (65 °C recommended)
Connector centres	150 ± 15 mm
Acoustic group	II
Supplied with	Mixer, upper and lower shower bar, articulated head, hand shower, mounting set (2 eccentrics with gaskets and rosettes, 1 bar wall bracket), PVC hose 1500 mm
Warranty	24 months statutory + KFA 10 years for tightness of the mixer and failure-free operation of ceramic cartridges
Certification	PN-EN 817 / PN-EN 1112 / PN-EN 1113, Construction sign, Hygienic Attestation, National Declaration of Performance

Downloads

Technical datasheet (PDF) — dimensions, EAN and certification. The dimension drawing is also in the gallery. See our returns and warranty policy for how to make a claim.

Part of the Mokait range — basin, bidet, bath and shower mixers in chrome and matt black.
