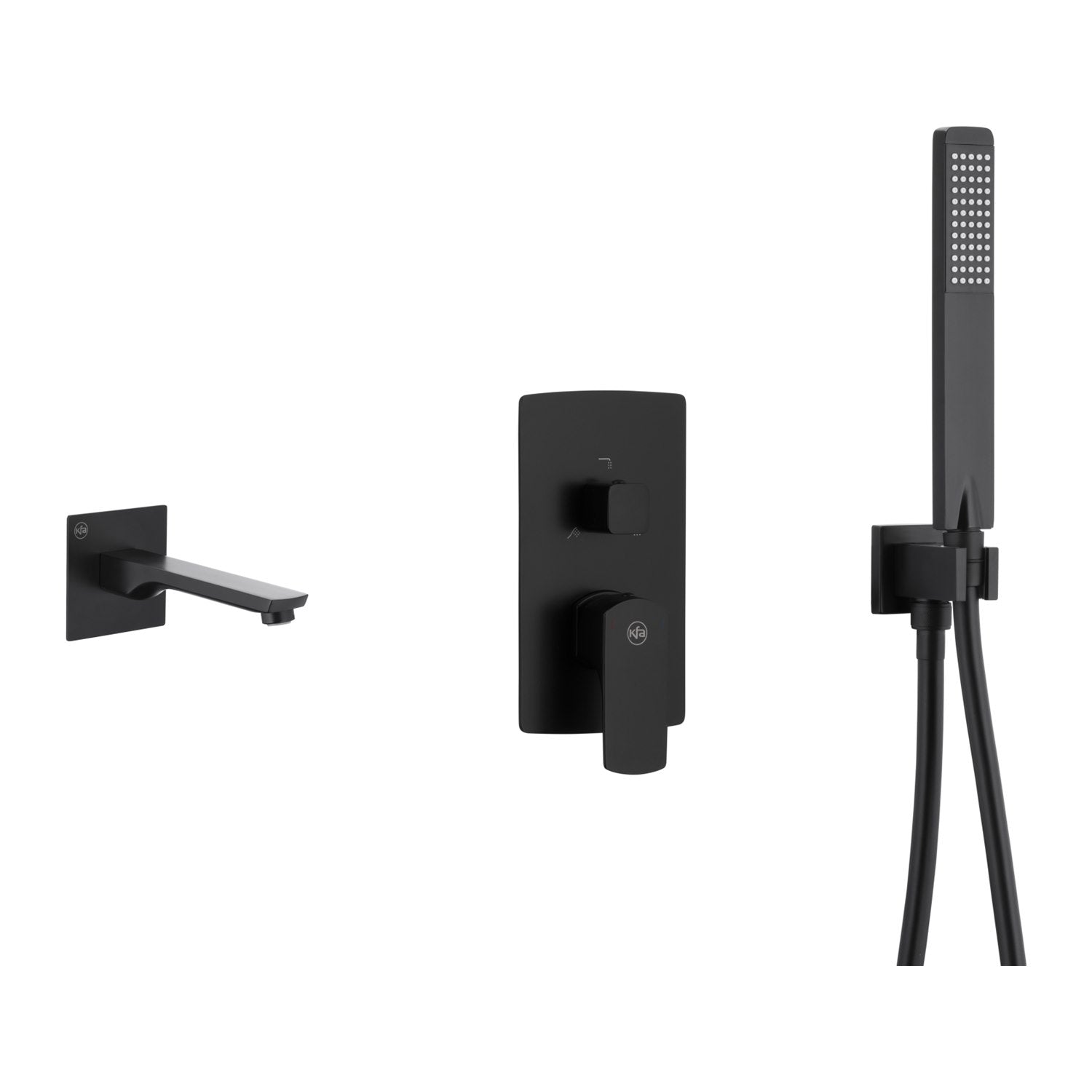

KFA Mokait concealed bath set in matt black

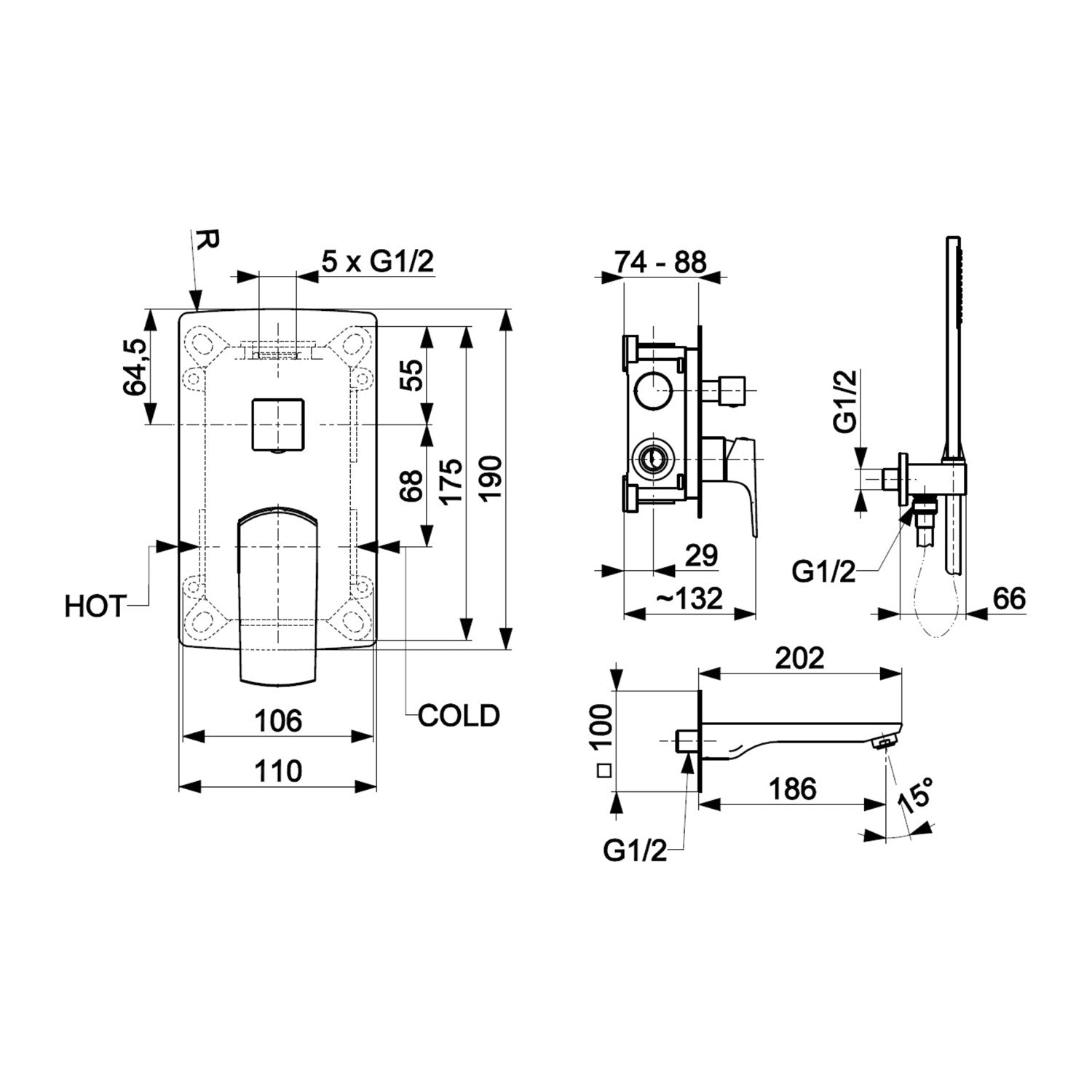

KFA Mokait concealed bath set 5539-401 technical drawing with dimensions

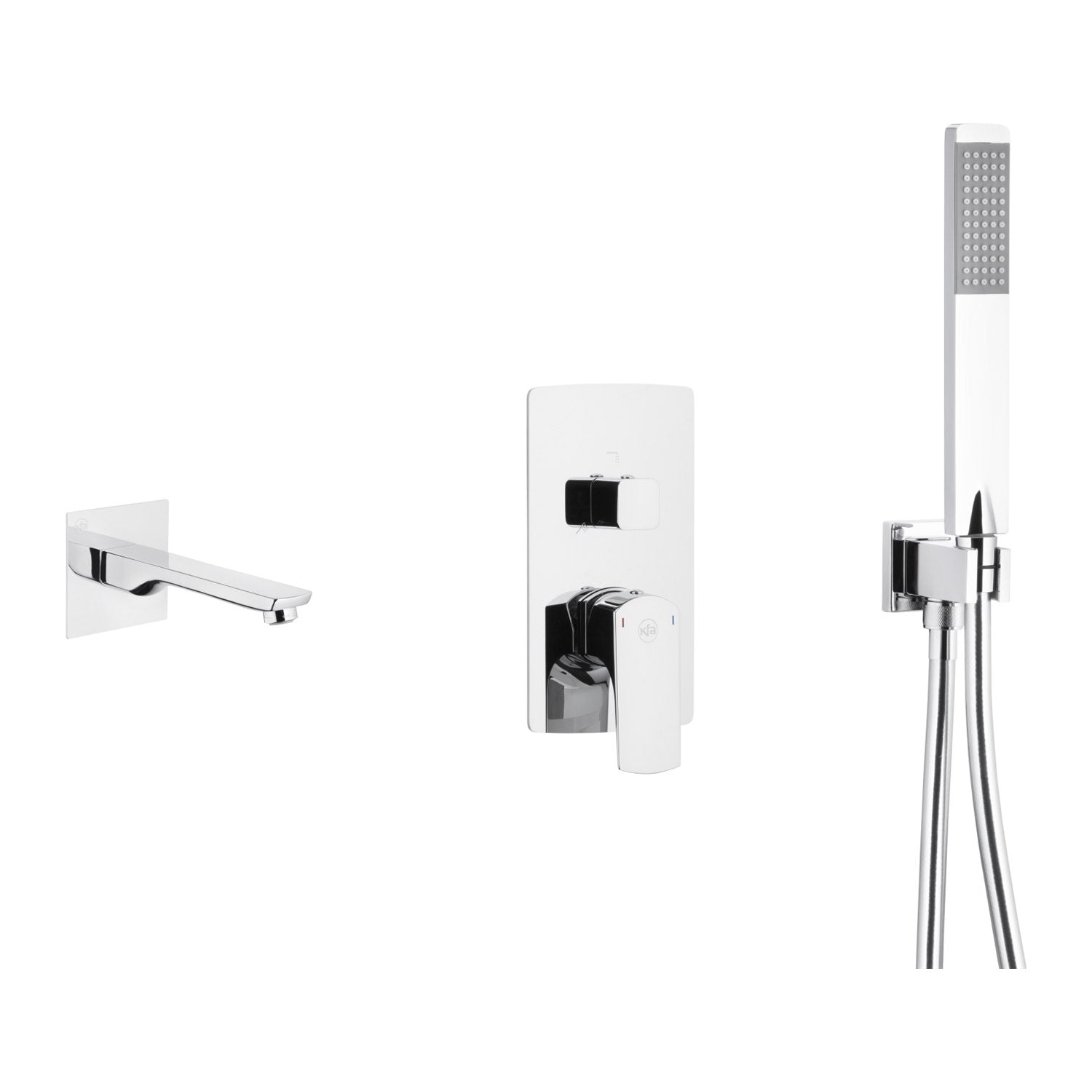

Mokait Concealed Bath Set

Name: Mokait Concealed Bath Set
Brand: KFA
SKU: 65699277406557
Price: 404.00 EUR
Availability: InStock

SKU: 5539-401-00

€404

VAT included. Shipping calculated at checkout.

Available to order Estimated delivery: 2–3 weeks

Delivery from €13.95

Colour

Chrome Black

Have a question before ordering? Message our bathroom experts on WhatsApp. Ask a Question on WhatsApp

Mokait Concealed Bath Set Description

A built-in bath set from the angular Mokait range on a single concealed plate: a 202 mm bath spout, a hand shower on a 1500 mm PVC hose and a ceramic diverter, all from one lever. The 202 mm projection is generous — it reaches over the rim of a deep or wide bath where a 180 mm spout would pour onto the edge, so measure yours against the drawing.

It is a first-fix job: the valve body is built into the wall before tiling, so this belongs at the start of a bathroom rather than as a swap for an existing tap. Two functions, so spout or handset but not both together. Spout runs 17.5 l/min, handset 15, and the handset has an easy-clean face you rub limescale off with a thumb. The angled wall connection and the manual are in the box. Ø35 mm ceramic cartridge, brass body.

Specification

Product code	5539-401
Material	Brass
Type	Wall-mounted concealed bath set, 3-function mixer
Control element	Ø35 mm ceramic cartridge
Shower diverter	Ceramic
Spout	Fixed, 202 mm
Flow rate	Spout 17.5 l/min / hand shower 15 l/min
Hand shower	1 spray pattern, easy clean
Hose	PVC, 1500 mm
Working pressure	3 bar
Max water temperature	90 °C (65 °C recommended)
Acoustic group	II
Supplied with	Complete mixer set, concealed bath spout, hand shower, angled wall connection, installation and user manual
Warranty	24 months statutory + KFA 10 years for tightness of cast parts and failure-free operation of ceramic cartridges
Certification	PN-EN 817 / PN-EN 1112 / PN-EN 1113, Construction sign, Hygienic Attestation, National Declaration of Performance

Downloads

Technical datasheet (PDF) — dimensions, EAN and certification. The dimension drawing is also in the gallery. See our returns and warranty policy for how to make a claim.

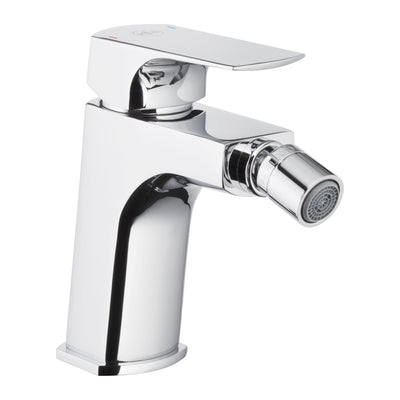

Part of the Mokait range — basin, bidet, bath and shower mixers in chrome and matt black.
