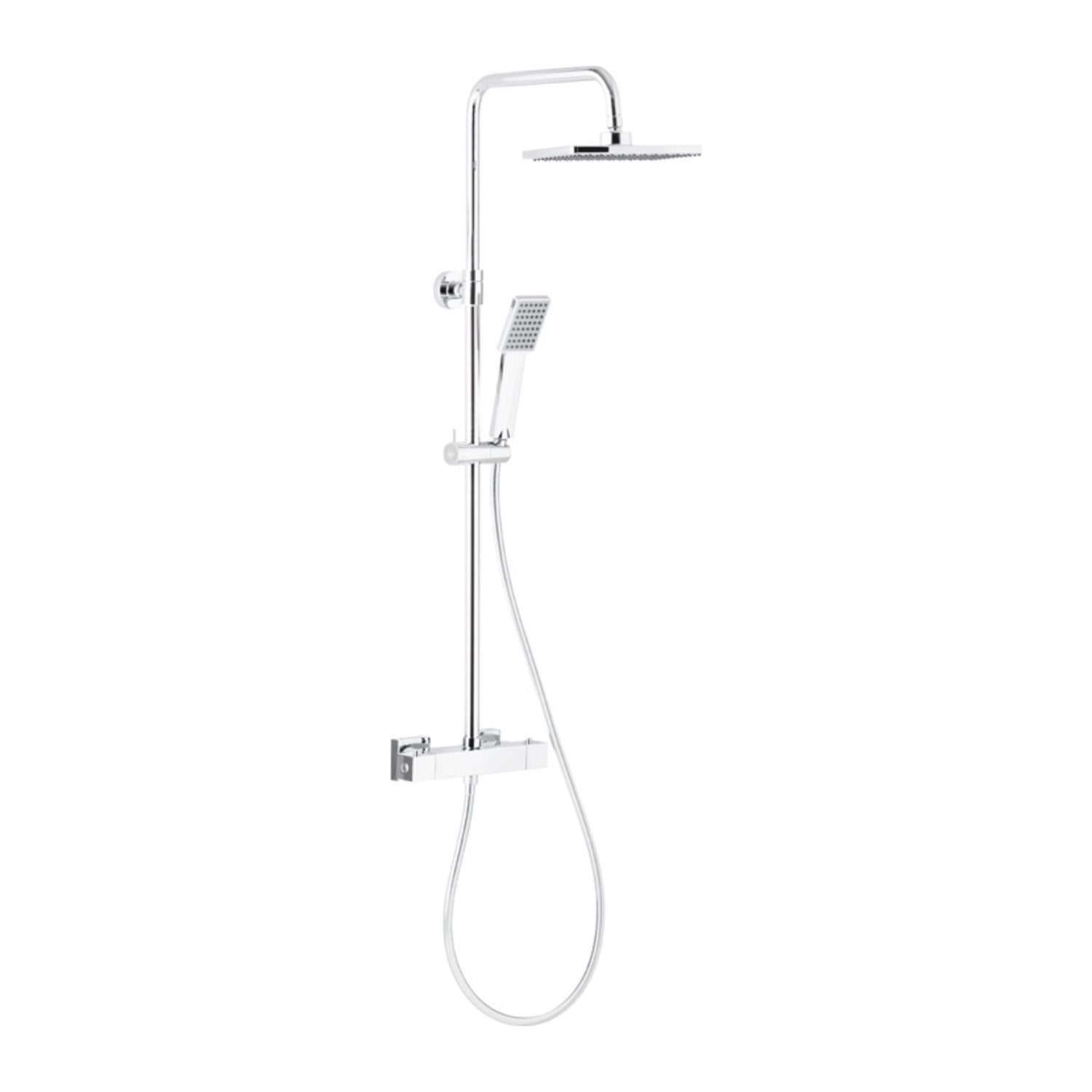

KFA Logon thermostatic rainshower set in chrome

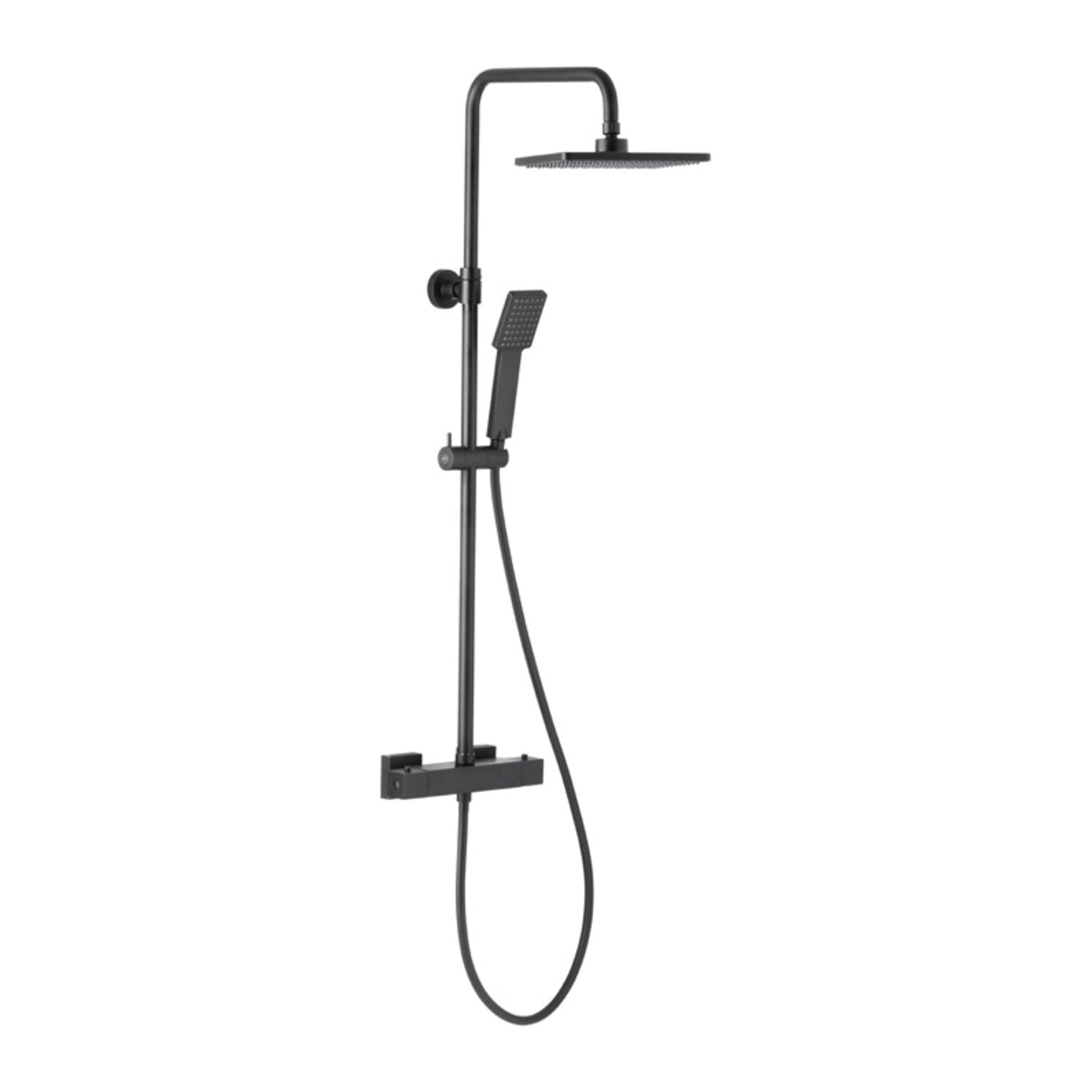

KFA Logon thermostatic rainshower set in matt black

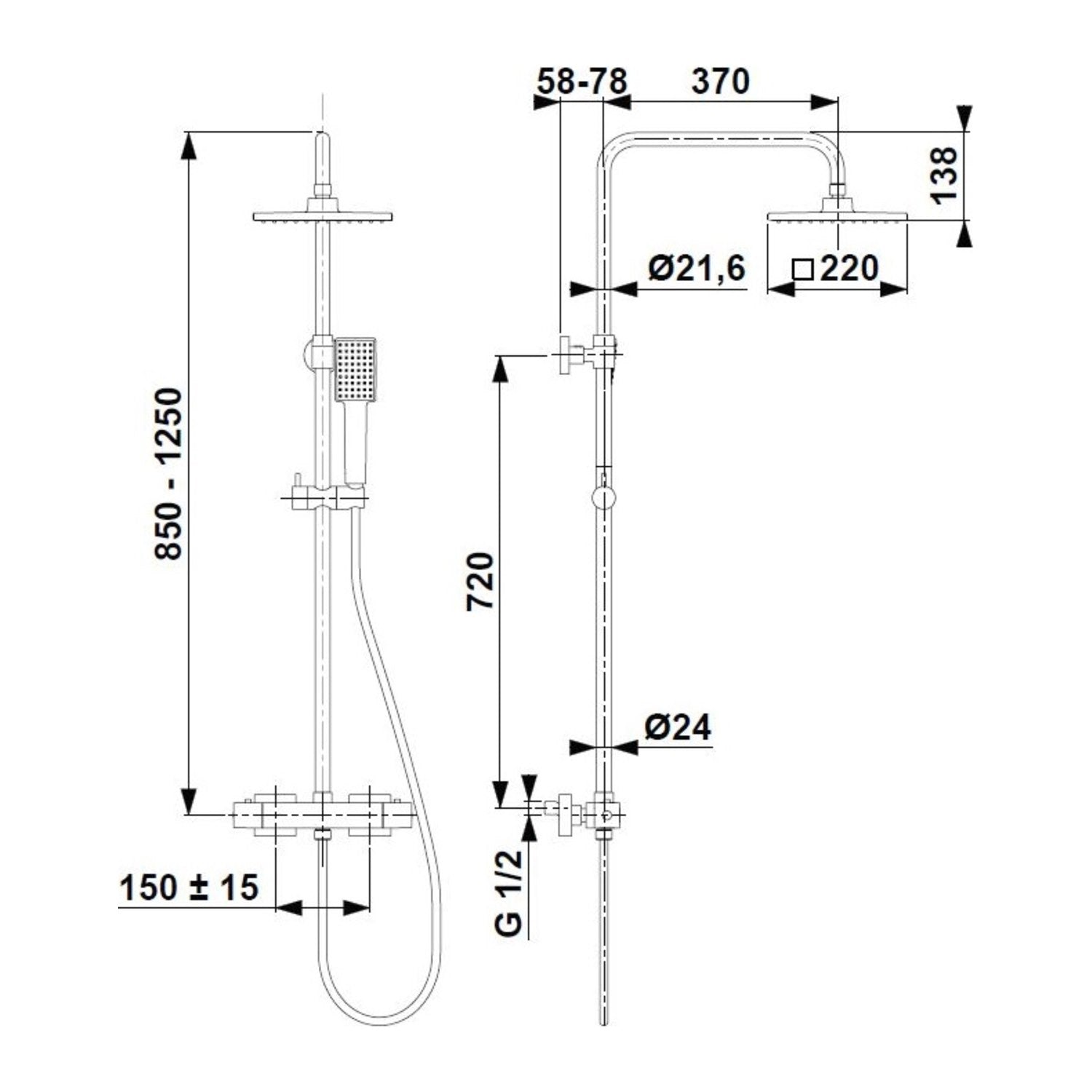

KFA Logon thermostatic rainshower set 5746-910 technical drawing with dimensions

Logon Thermostatic Rainshower Set

Name: Logon Thermostatic Rainshower Set
Brand: KFA
SKU: 65700172955997
Price: 316.00 EUR
Availability: InStock

SKU: 5746-910-00

€316

VAT included. Shipping calculated at checkout.

Available to order Estimated delivery: 2–3 weeks

Delivery from €13.95

Colour

Chrome Black

Have a question before ordering? Message our bathroom experts on WhatsApp. Ask a Question on WhatsApp

Logon Thermostatic Rainshower Set Description

The thermostatic Logon shower column: a square 220 × 220 mm articulated rain head on a rigid bar, a hand shower, and a SEDAL thermostatic cartridge that holds the temperature you set even when a tap runs elsewhere in the house. That is the reason to choose thermostatic over manual — no cold shock when the washing machine fills, and no scald risk for a child or an older user.

Flow is 18.5 l/min at the head and 14 at the handset, both high for this price band, so it needs a system that can actually deliver it. The head has an easy-clean face you rub limescale off with a thumb. It fits existing 150 ± 15 mm feeds, so it swaps for an old bar shower with no tiling; eccentrics, square rosettes and the wall bracket are supplied. If you want the larger head and a metal handset, the Logon Premium set is the step up.

Specification

Product code	5746-910
Material	Brass
Type	Wall-mounted exposed shower set, thermostatic
Control element	SEDAL thermostatic cartridge
Shower head	Articulated, 220 × 220 mm
Hand shower	1 spray pattern
Flow rate	Shower head 18.5 l/min / hand shower 14 l/min
Cleaning system	Easy Clean
Working pressure	3 bar
Max water temperature	90 °C (65 °C recommended)
Connector centres	150 ± 15 mm
Acoustic group	II
Supplied with	Shower bar, articulated shower head, hand shower, mounting set (2 eccentrics with gaskets and square rosettes, wall bracket)
Warranty	24 months statutory + KFA manufacturer cover; see the datasheet for the thermostatic cartridge term
Certification	PN-EN 817:2008, Construction sign, Hygienic Attestation, National Declaration of Performance

Downloads

Technical datasheet (PDF) — dimensions, EAN and certification. The dimension drawing is also in the gallery. See our returns and warranty policy for how to make a claim.

Part of the Logon range — basin, bidet, bath and shower mixers in five finishes.
