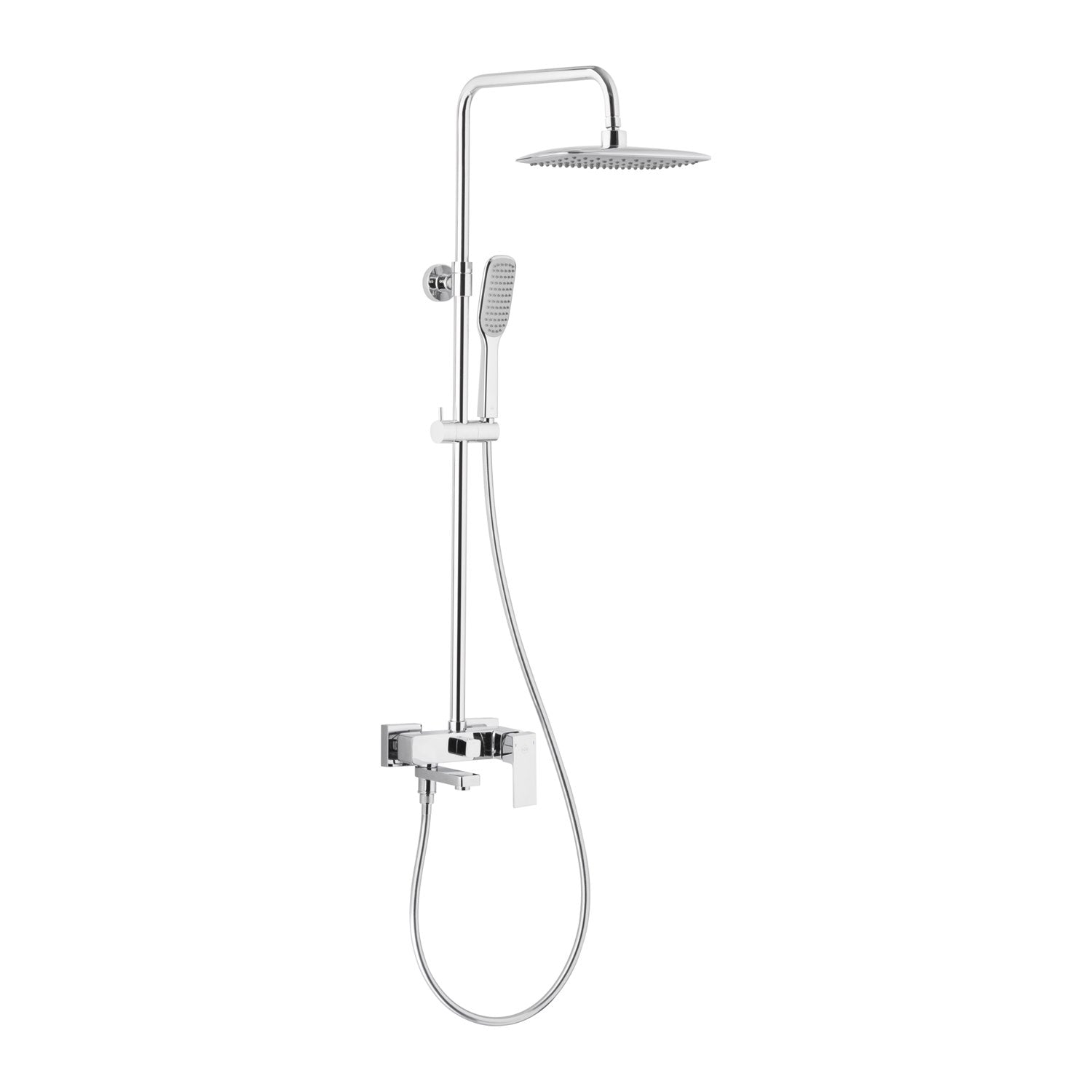

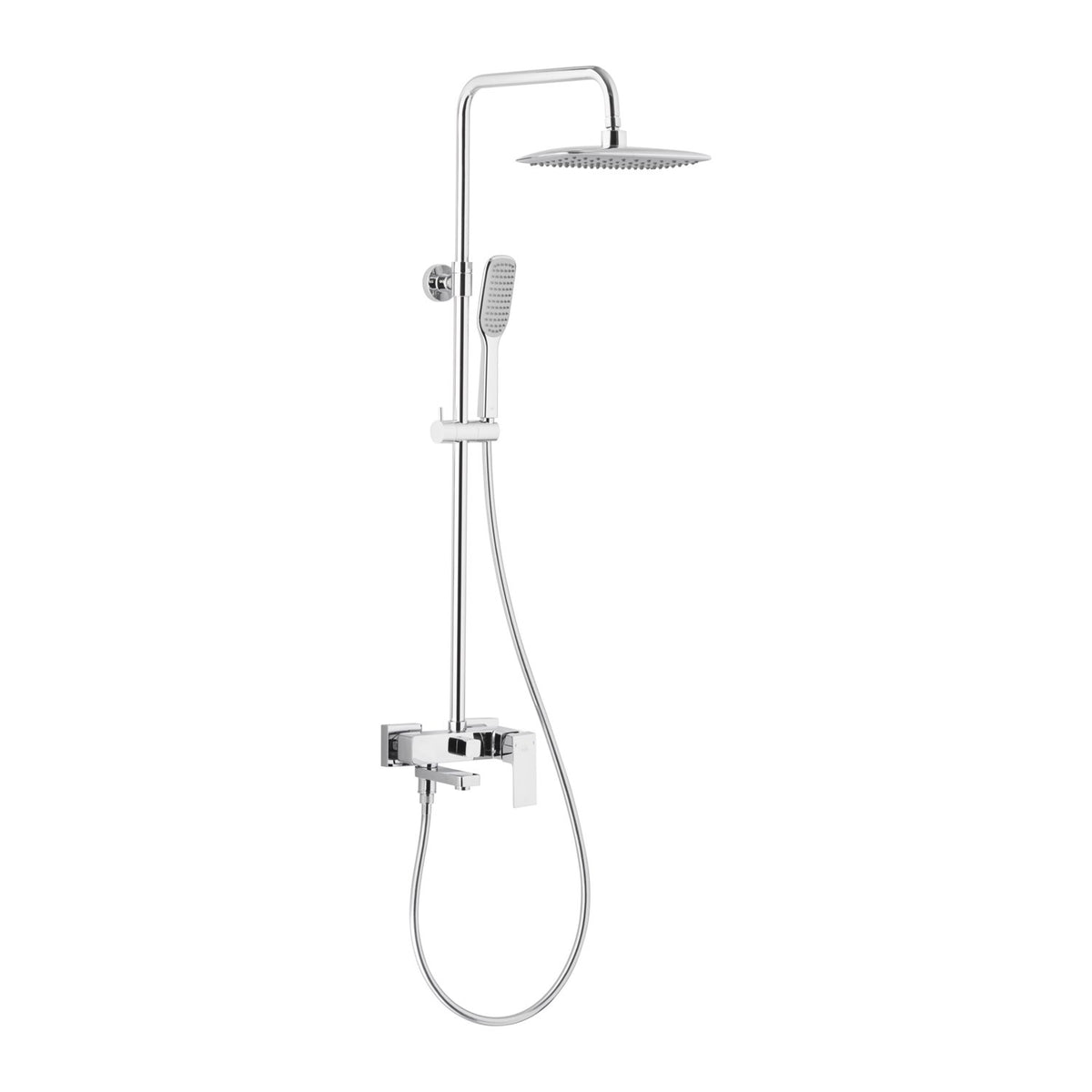

KFA Logon rainshower set with folding bath spout in chrome

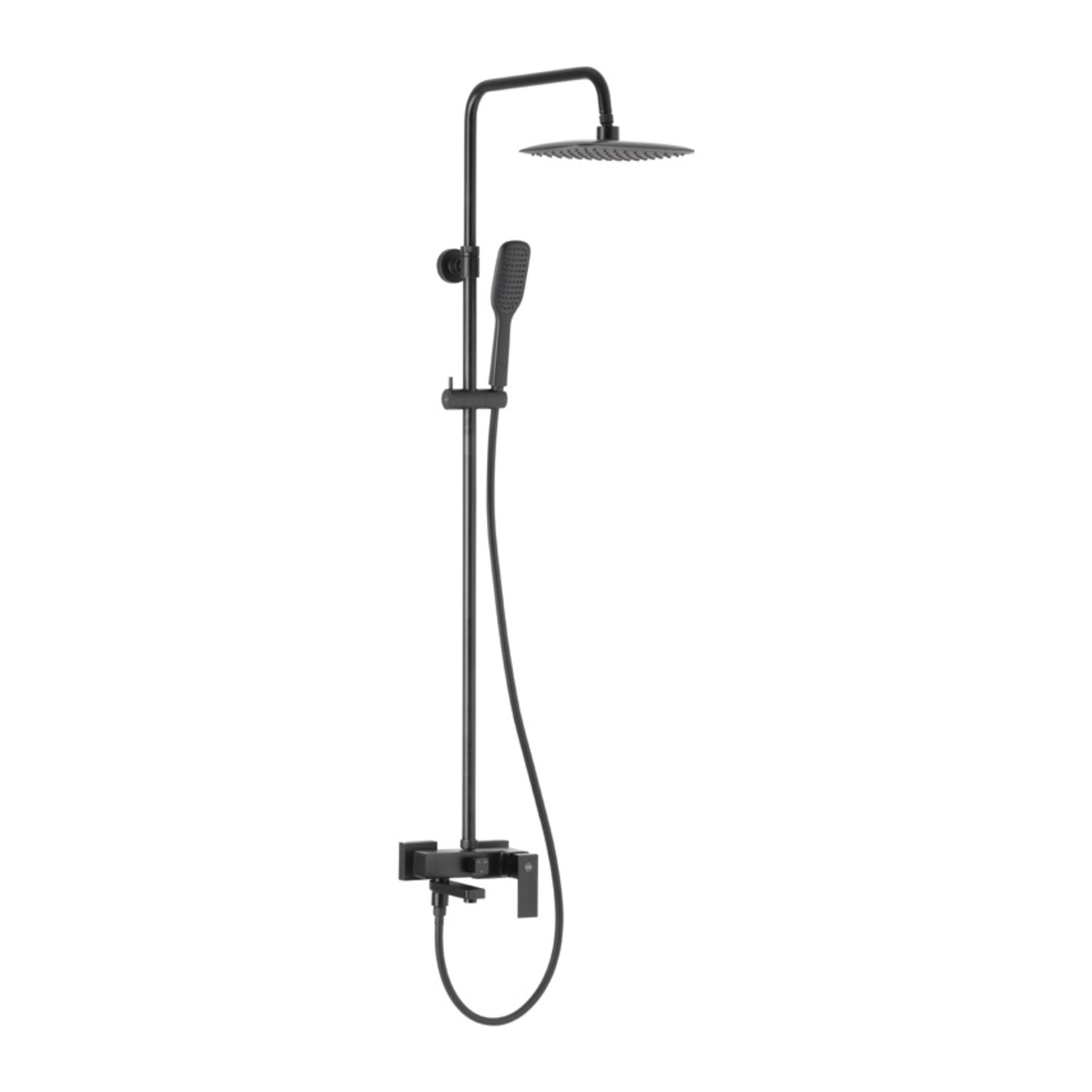

KFA Logon rainshower set with folding bath spout in matt black

KFA Logon rainshower set with folding bath spout in brushed light gold with metal head and handset

KFA Logon rainshower set with folding bath spout in brushed rose gold with metal head and handset

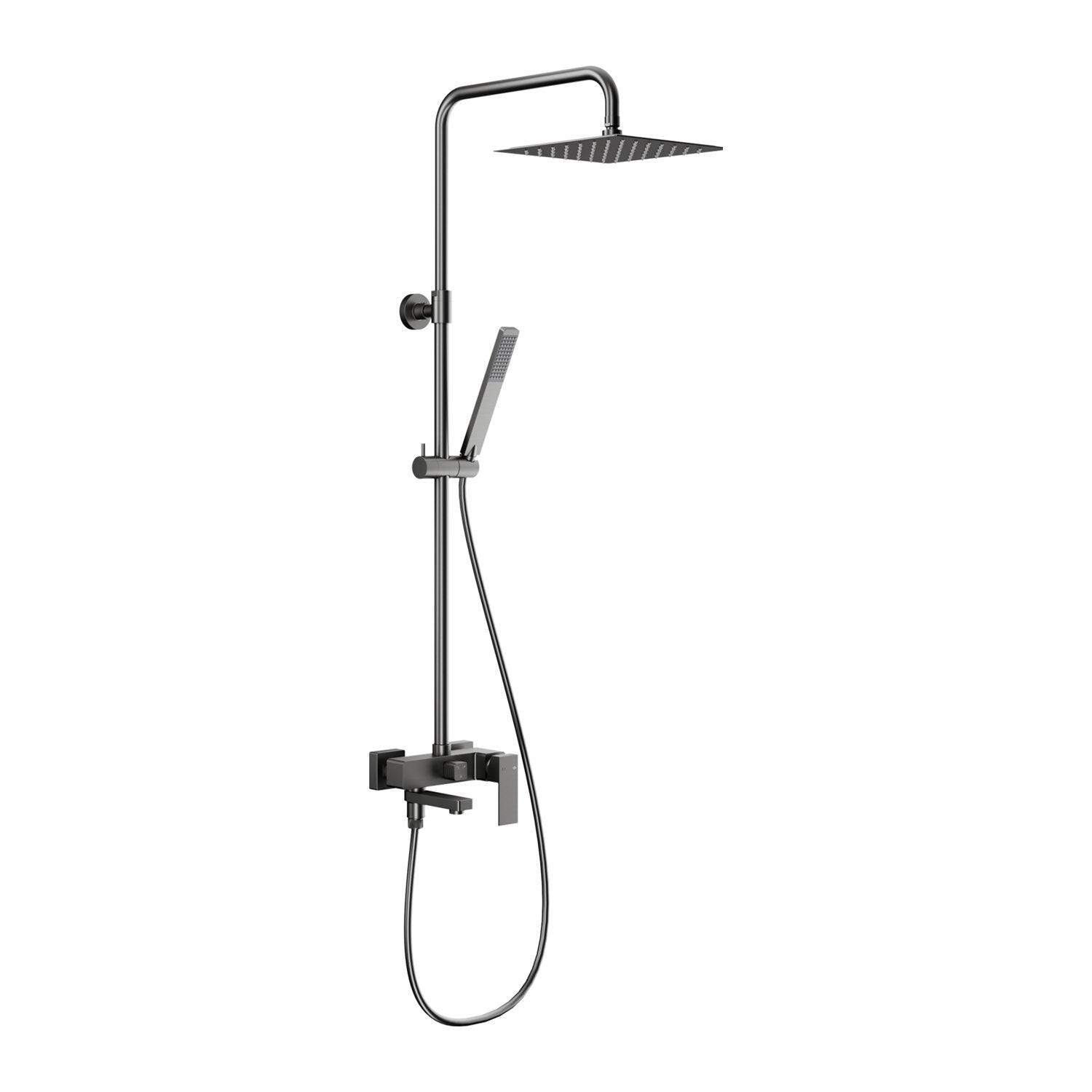

KFA Logon rainshower set with folding bath spout in gun metal grey with metal head and handset

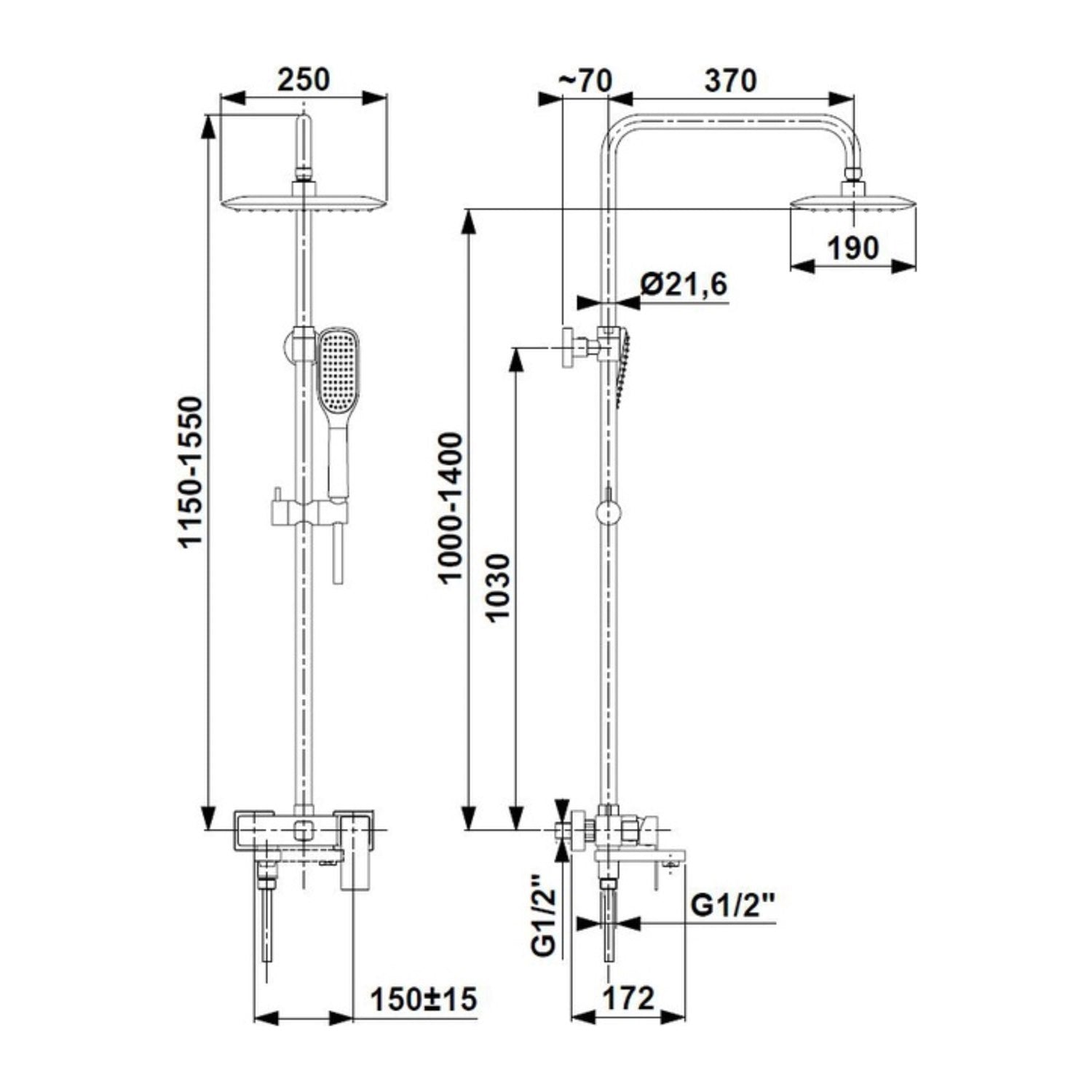

KFA Logon rainshower set with folding bath spout 5136-915 technical drawing with dimensions

Logon Rainshower Set with Folding Bath Spout

Name: Logon Rainshower Set with Folding Bath Spout
Brand: KFA
SKU: 65700159947101
Price: 314.00 EUR
Availability: InStock

SKU: 5136-915-00

€314

VAT included. Shipping calculated at checkout.

Available to order Estimated delivery: 2–3 weeks

Delivery from €13.95

Colour

Chrome Black Brushed Light Gold Brushed Rose Gold Gun Metal Grey

Have a question before ordering? Message our bathroom experts on WhatsApp. Ask a Question on WhatsApp

Logon Rainshower Set with Folding Bath Spout Description

An exposed shower column for over a bath, with the detail that makes it work in a small bathroom: the bath spout folds up out of the way when you are showering, so you are not standing over a fixed spout at shin height. A ceramic diverter switches between the articulated rain head, the hand shower and the spout.

One thing worth knowing that the manufacturer's page does not make obvious. The three PVD finishes — brushed light gold, brushed rose gold and gun metal grey — are a different build: they ship with a metal head and handset (code 5136-925), where chrome and matt black use plastic ones (5136-915). That is most of the price difference, and it is a genuine durability gain rather than just colour.

It bolts onto existing 150 ± 15 mm feeds, so it replaces an old over-bath shower with no tiling; eccentrics, rosettes and the wall bracket are supplied. Manual mixer, so the temperature will move if a tap runs elsewhere. Head 10 l/min, handset 8 l/min.

Specification

Product code	5136-915 (chrome, black) / 5136-925 (PVD finishes)
Material	Brass mixer; head and handset metal on PVD finishes, plastic on chrome and black
Type	Wall-mounted exposed rainshower set with folding bath spout
Control element	Ø35 mm ceramic cartridge
Shower diverter	Ceramic
Spout	Folding, with aerator
Hand shower	1 spray pattern
Flow rate	Shower head 10 l/min / hand shower 8 l/min
Working pressure	3 bar
Max water temperature	90 °C (65 °C recommended)
Connector centres	150 ± 15 mm
Acoustic group	II
Supplied with	Shower bar, articulated shower head, hand shower, mounting set (2 eccentrics with gaskets and rosettes, wall shower bracket)
Warranty	24 months statutory + KFA 10 years for tightness of the mixer and failure-free operation of ceramic cartridges
Certification	Construction sign, Hygienic Attestation, Declaration of Conformity

Downloads

Technical datasheet (PDF) — dimensions, EAN and certification. The dimension drawing is also in the gallery. See our returns and warranty policy for how to make a claim.

Part of the Logon range — basin, bidet, bath and shower mixers in five finishes.
