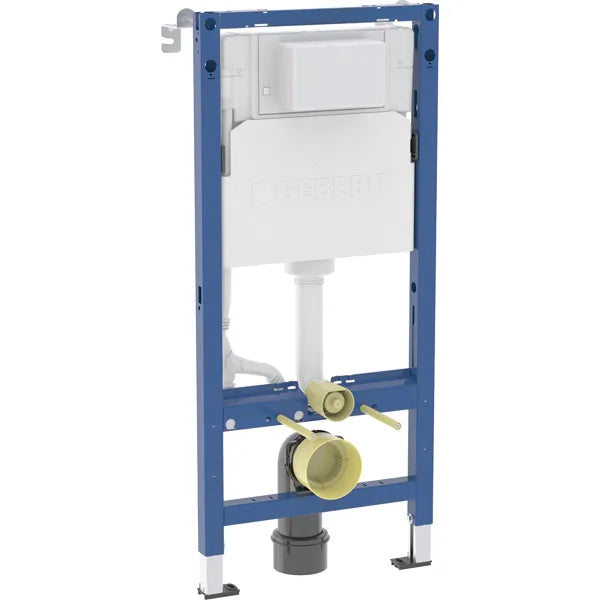

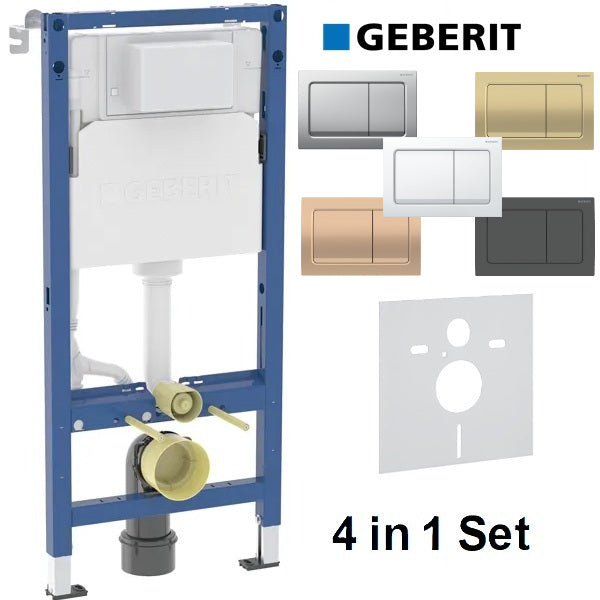

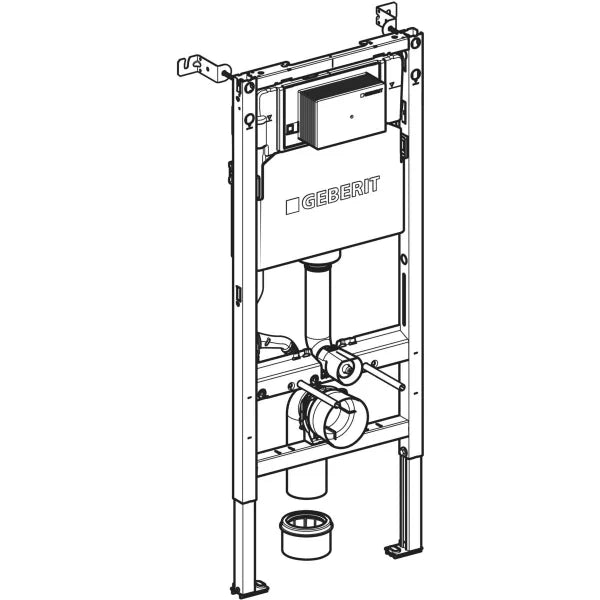

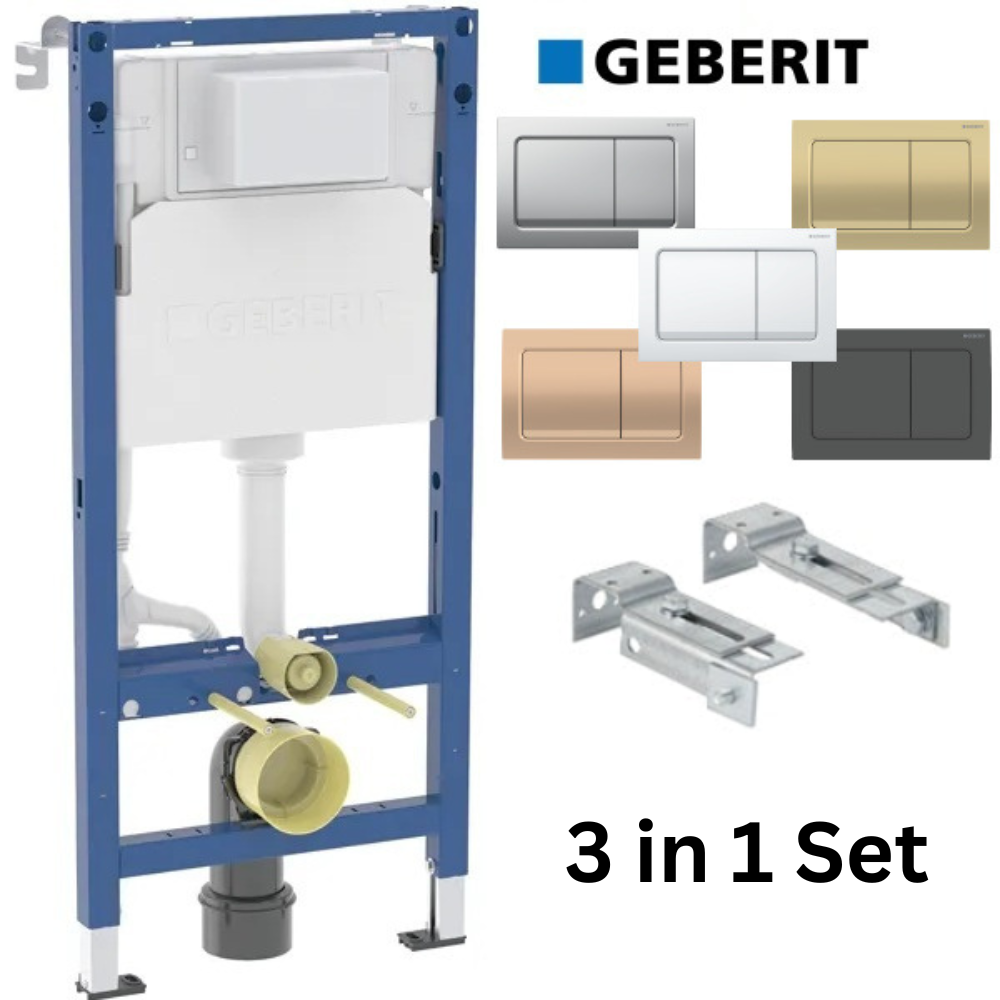

Geberit Alpha WC Frame Concealed Cistern with Brackets
Technical data
· Flow pressure: 0.1-10 bar
· Operating temperature, water max: 25 °C
· Flush volume, factory setting: 5.8 / 3 l
· Flush volume small, adjustment range: 3–4 l
Application purposes
· For metal and woods frame walls
· For installation in part or room height prewalls
· For installation in room height partition walls

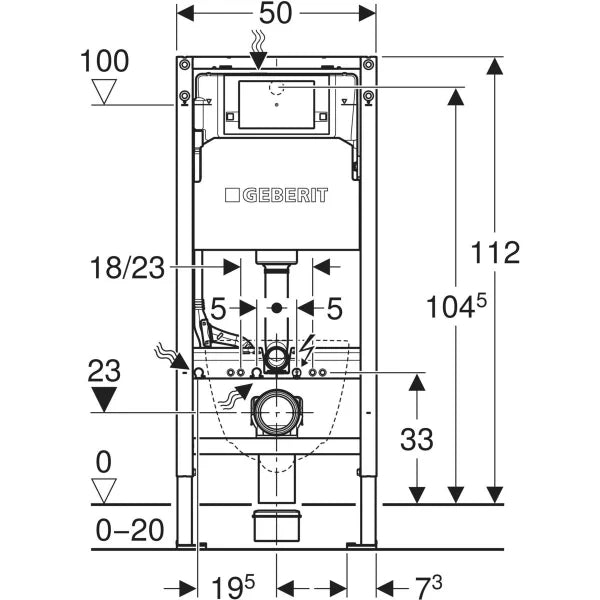

· For floor construction 0-20cm
Characteristics
· Statically self-supporting frame, protected against corrosion with powder coating

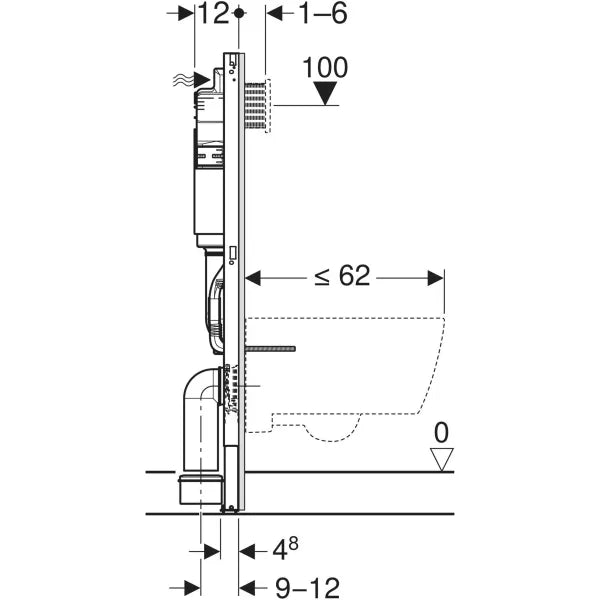

· Frame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 62 cm
· Alternative fastening point for wall anchors
· Foot plates made of plastic
· Foot plate depth suitable for installation in U-profiles UW 50
· Galvanised leg supports protected against corrosion
· Connection bend can be mounted without tools
· Geberit Alpha concealed cistern 12 cm fully insulated against condensation
· Cistern fulfils standard requirements in accordance with EN 14055, Class II
· For front actuation, suitable for dual flush
· Immediate post flush possible with factory setting
· Water supply connection on the rear or top centre
· Protection box for service opening, can be cut to length, protects against moisture and dirt
· With conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cable
· Fastening option for electrical connection
Scope of delivery
· Water supply connection unit R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and adapter ring
· Protection box for service opening
· 2 wall anchors
· 2 fixing brackets
· Connection set for WC, ø 90 mm
· Connection bend 90° made of PE-HD, ø 90 mm
· Adaptor socket made of PE-HD, ø 90 / 110 mm
· Fastening and protection material

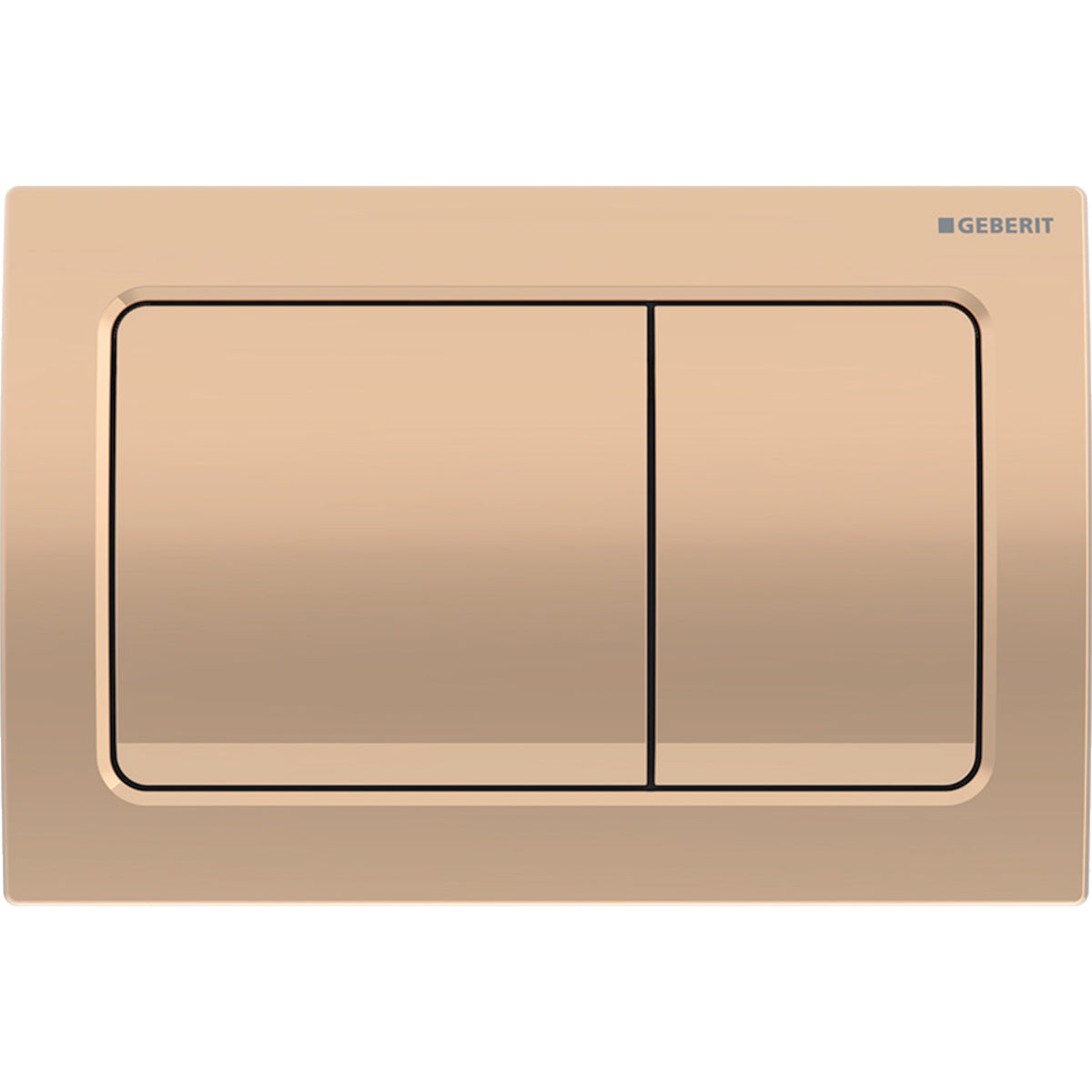

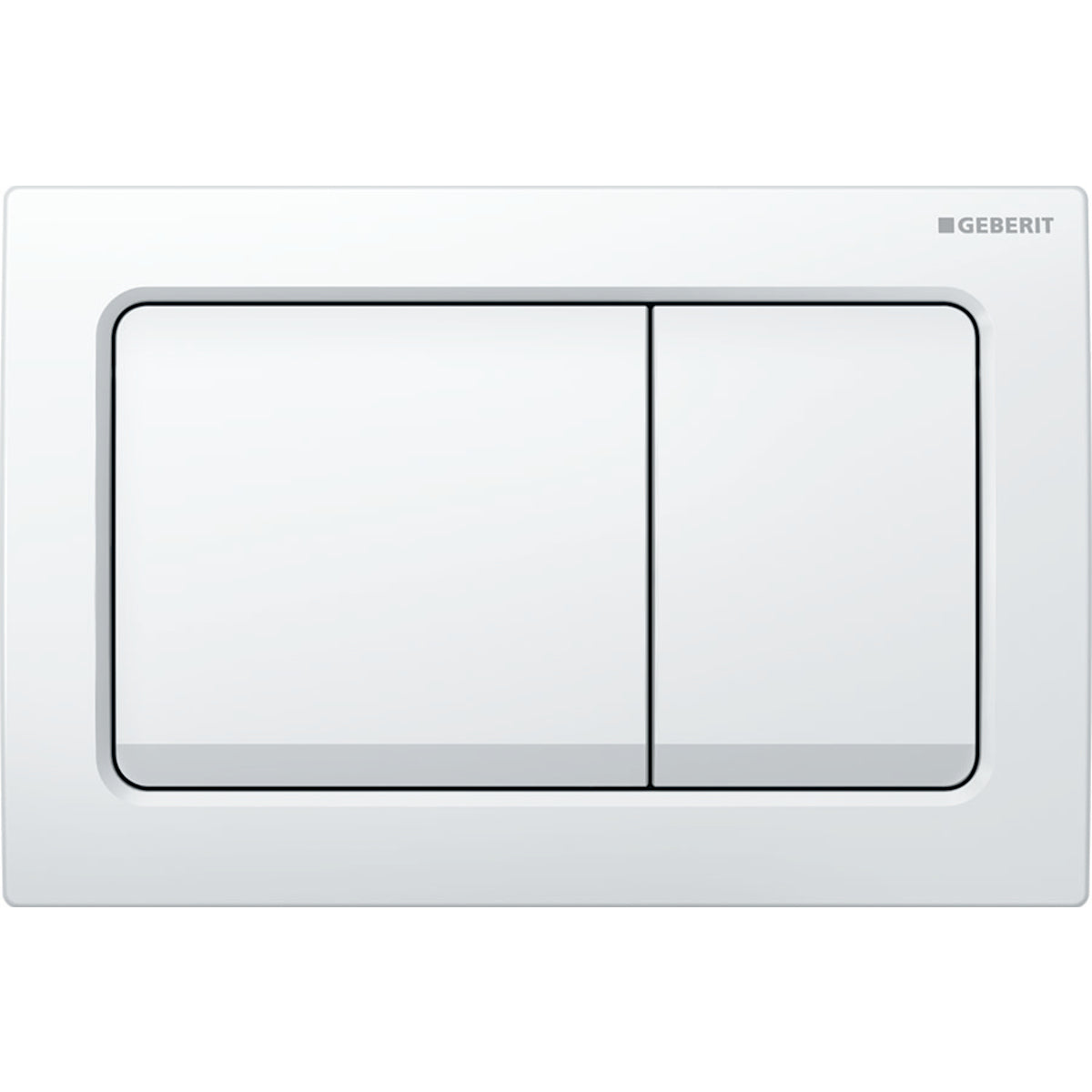

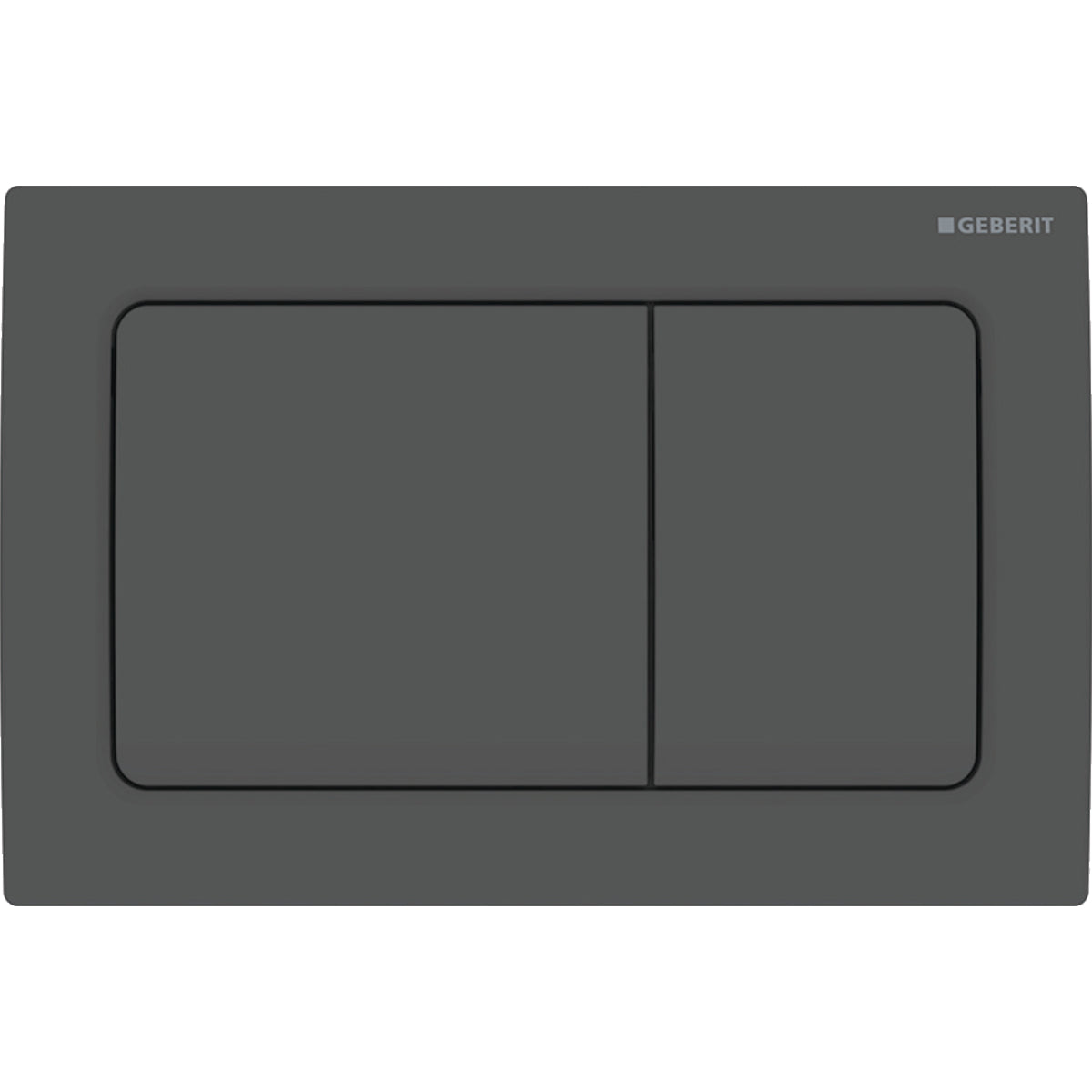

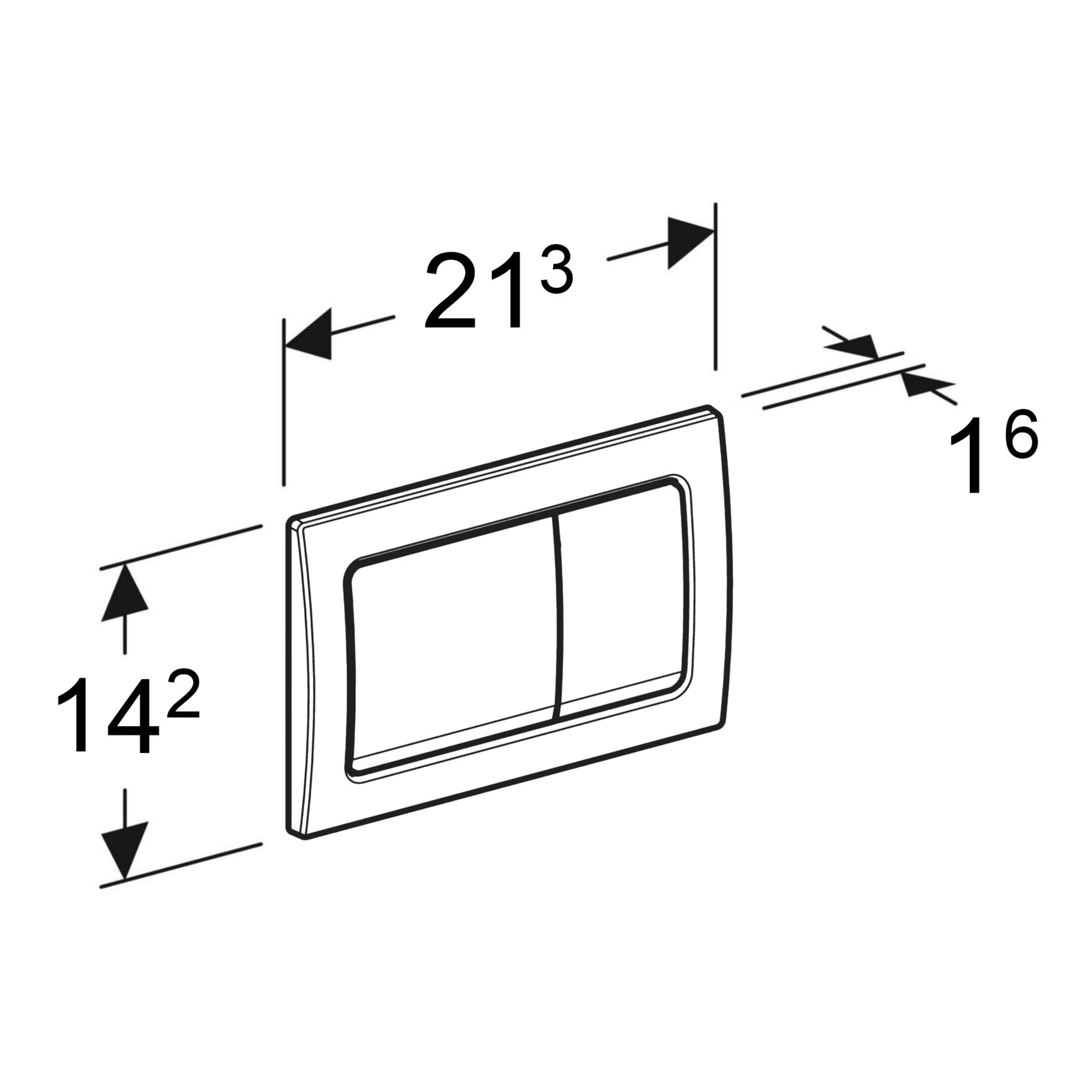

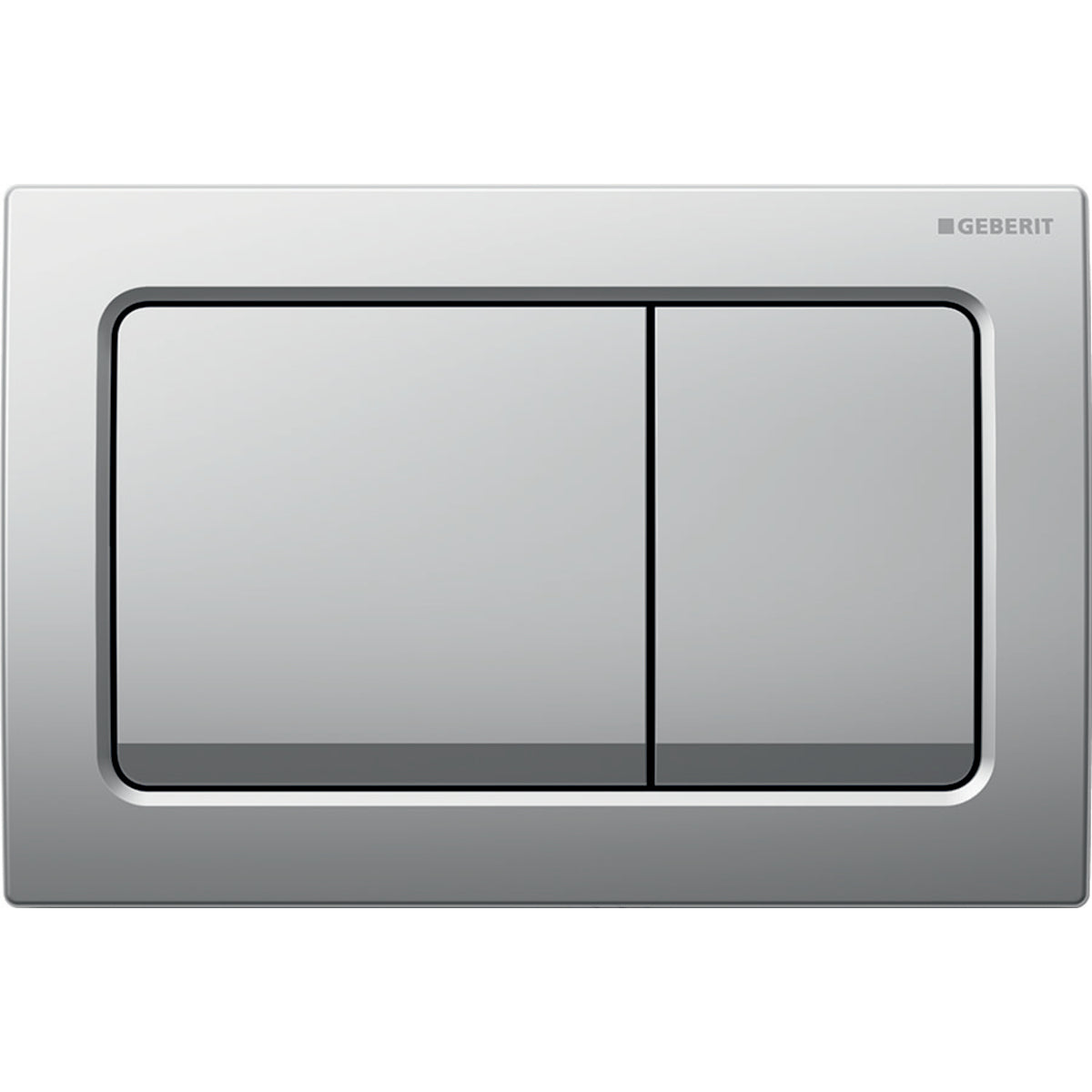

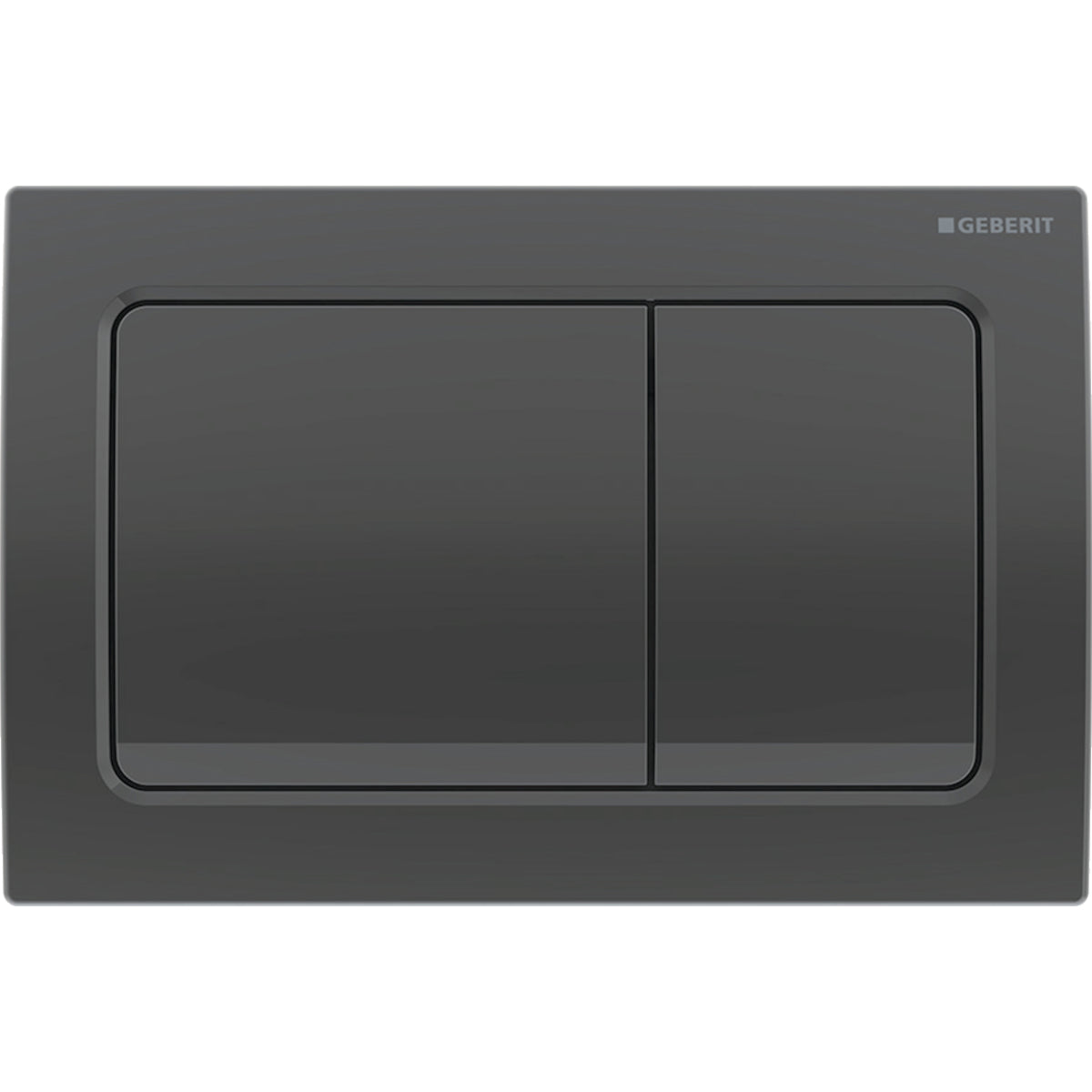

Geberit Alpha flush plate
· Actuation force max – 20 N
· Button shape – square
· For flush actuation with Alpha concealed cisterns only
· Top/front actuation
· 2 actuator rods
· Fastening material

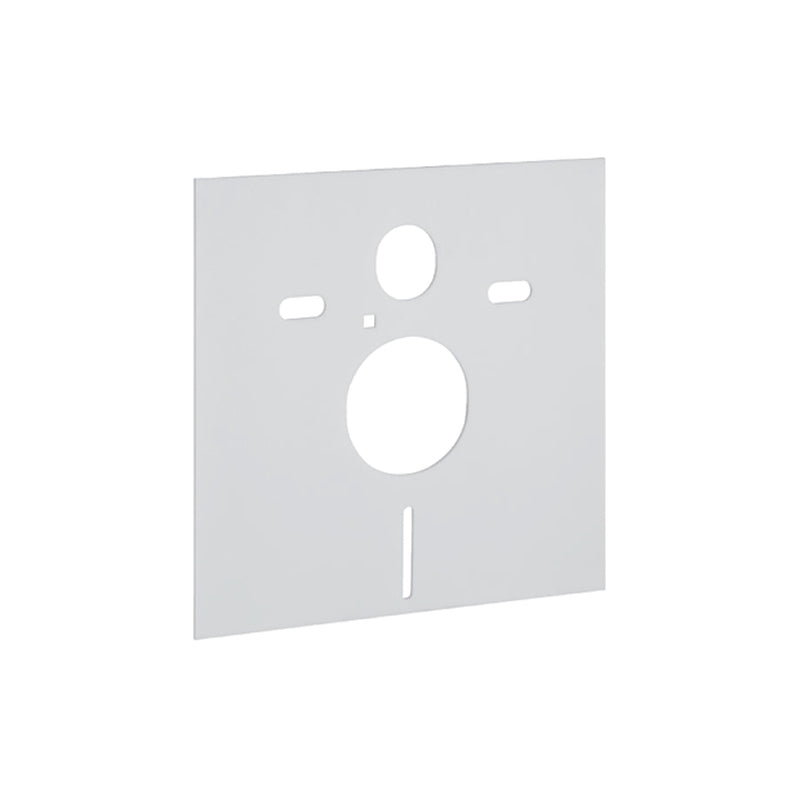

· Acoustic mat
