Vital Toilet set concealed 6 in 1

SKU: CDVS6WPW

Description

• Dual button, allowing adjustment of the amount of water used for flushing

Hard and durable ceramics does not lose its properties with long use

Ceramic products are characterized by special hardness and endurance. They have high colour durability and do not absorb smells. The surface of ceramic products does not discolour and looks as new even after long use.

Antibacterial coating, preventing the growth of microorganisms

The antibacterial coating prevents the development of microorganisms and promotes hygiene. Thanks to this, we can avoid many infections. The antibacterial coating is also an ally in everyday cleaning.

Dedicated cleaning agent, safe for cleaned surfaces

The use of dedicated agents means that the surfaces do not deteriorate and remain smooth for long, facilitating another cleaning. A specially selected composition removes the most common dirt extremely effectively. On the other hand, the preparations are delicate for a given type of surface (metal, granite, ceramics and others), without entering into chemical reactions with them. The preparations are biodegradable and thus safe for the environment. With Deante cleaning products, keeping things in order will be very easy!

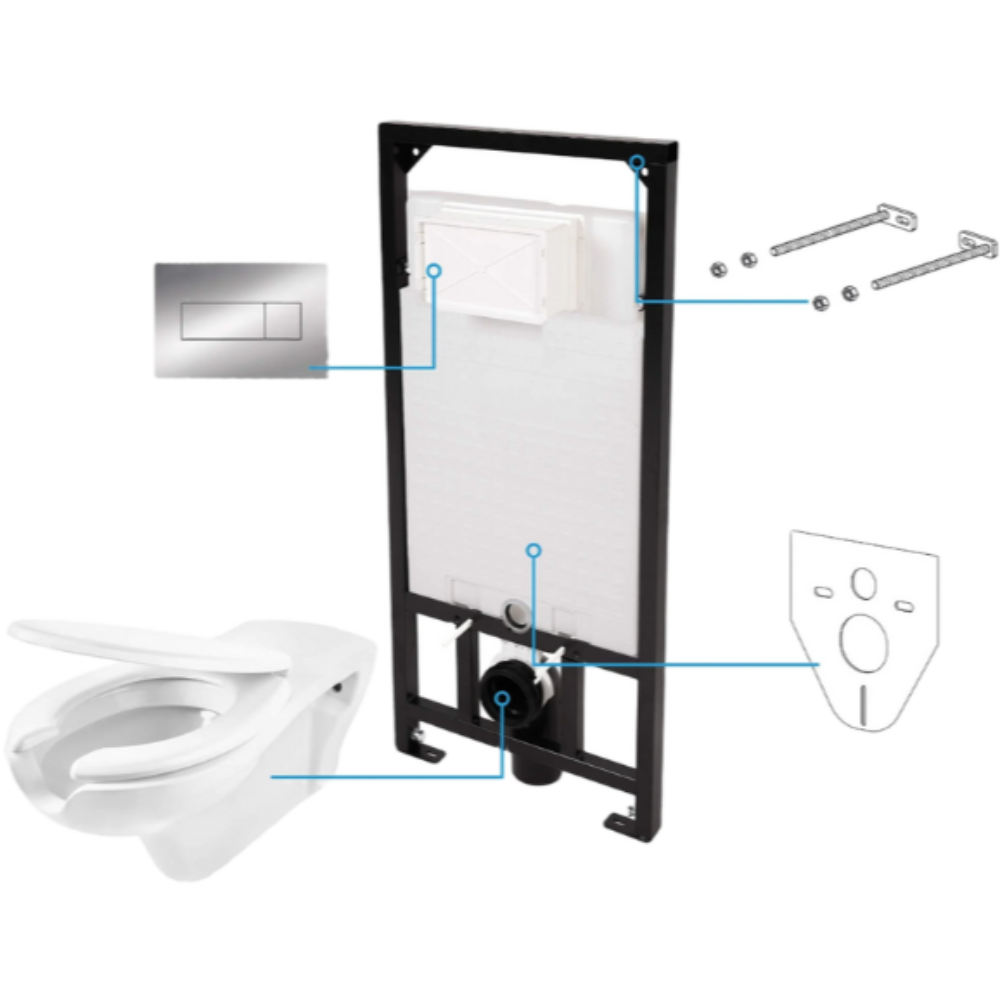

Innovative concealed frame

Easier and faster installation is ensured by the innovative tank with the new one-piece angle valve from Schell. Thanks to the openings in the frames, the mounting system can be easily attached to plasterboard structures, living quarters and wooden buildings. The filling valve is quiet, fast and extremely resistant to impurities in the water. New hinges for tanks with two-component insulation effectively protect against noise. The flush-mounted frame has an Easy Lock mounting kit for quicker and easier installation.

Soft-closing toilet seat

The biggest advantage of Deante toilet seats is the quiet and soft closing mechanism. Thanks to this, you prevent damage to sanitary ceramics, but also the seat itself.

Product specification

Series	Vital
Frame height adjustment [mm]	200
Tank capacity [l]	9
Double flushing [i]	3/6
Designated for light casing	Yes
Designated for installation in front of the load-bearing wall	Yes
Connection valve g1/2"	Yes
Silent flushing and filling	Yes
Mounting bolts spacing 180 mm and 230 mm	Yes
Finish	white
Type	wall-mounted
Rim type	rim
Slow-close toilet seat	Yes
Quick seat detachment	Yes
Antibacterial	Yes
Finish	chrome
Surface type	shine
Button type	duple

Files to download

File type	File name	Extension	Download
technicalDrawing	CDVS6WPW.pdf	pdf	Download
instruction	CST_X50X_manual.pdf	pdf	Download
instruction	CST_X51P_manual_2.pdf	pdf	Download
instruction	Instrukcja piel%C4%99gnacji - ceramika.pdf	pdf	Download
instruction	Instrukcja_VITAL_2022.pdf	pdf	Download
model3d	CDV_6WPW.3ds	3ds	Download
model3d	CDV_6WPW.dwg	dwg	Download
model3d	CDV_6DOZ.obj	obj	Download
model3d	CDV_6DOZ.dxf	dxf	Download
model3d	CDV_6DOZ.3ds	3ds	Download
model3d	CST_x51P.dwg	dwg	Download
model3d	CST_x51P.dxf	dxf	Download
model3d	CST_x51P.skp	skp	Download
warrantyCard	Deante_Gwarancje_Warranty-od-18_05_2021-_19287.pdf	pdf	Download
hygienicCertificate	Atest-PZH-Ceramika.pdf	pdf	Download
declaration	Declaration of performance toilet sets.pdf	pdf	Download
