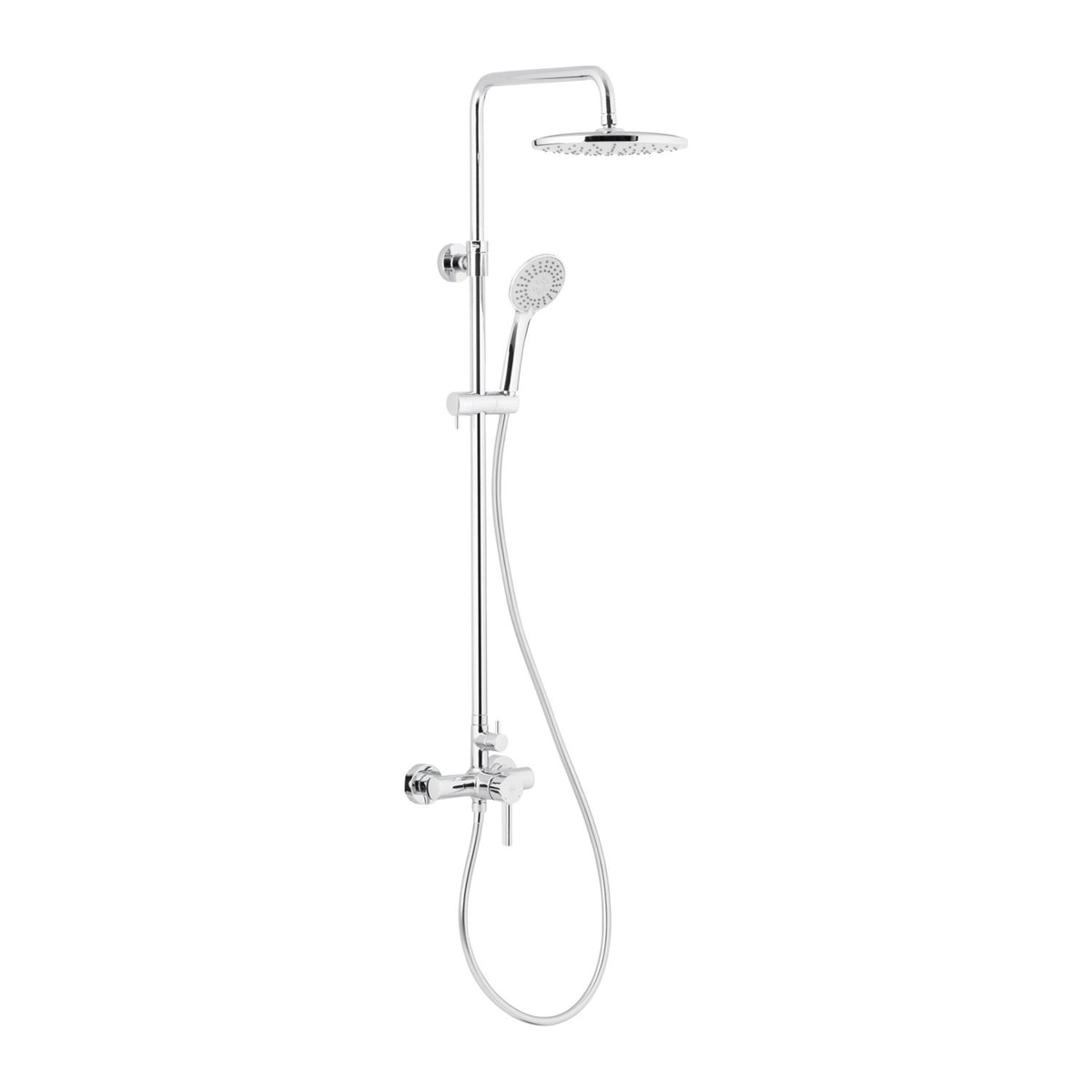

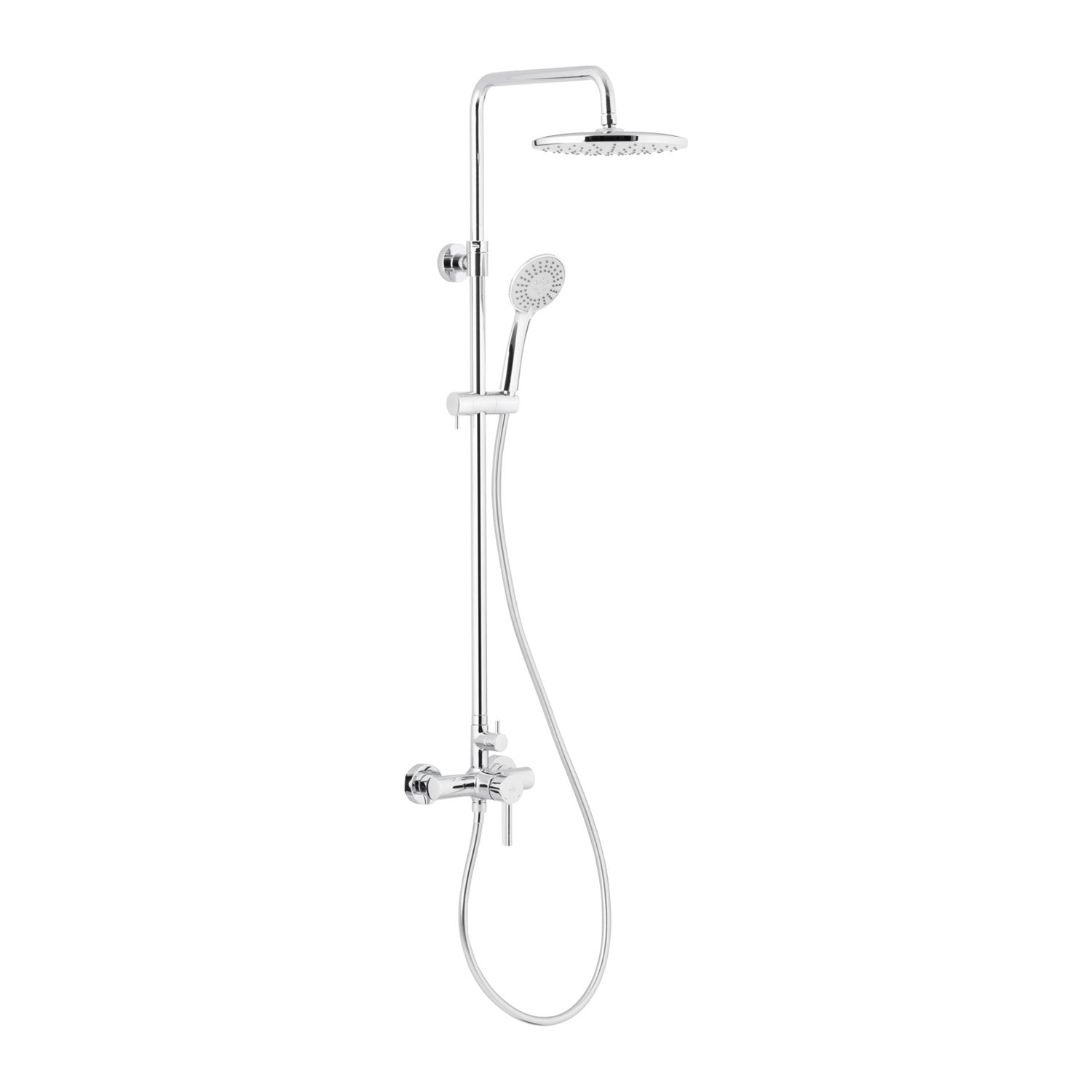

KFA Moza exposed rainshower set with manual mixer in chrome

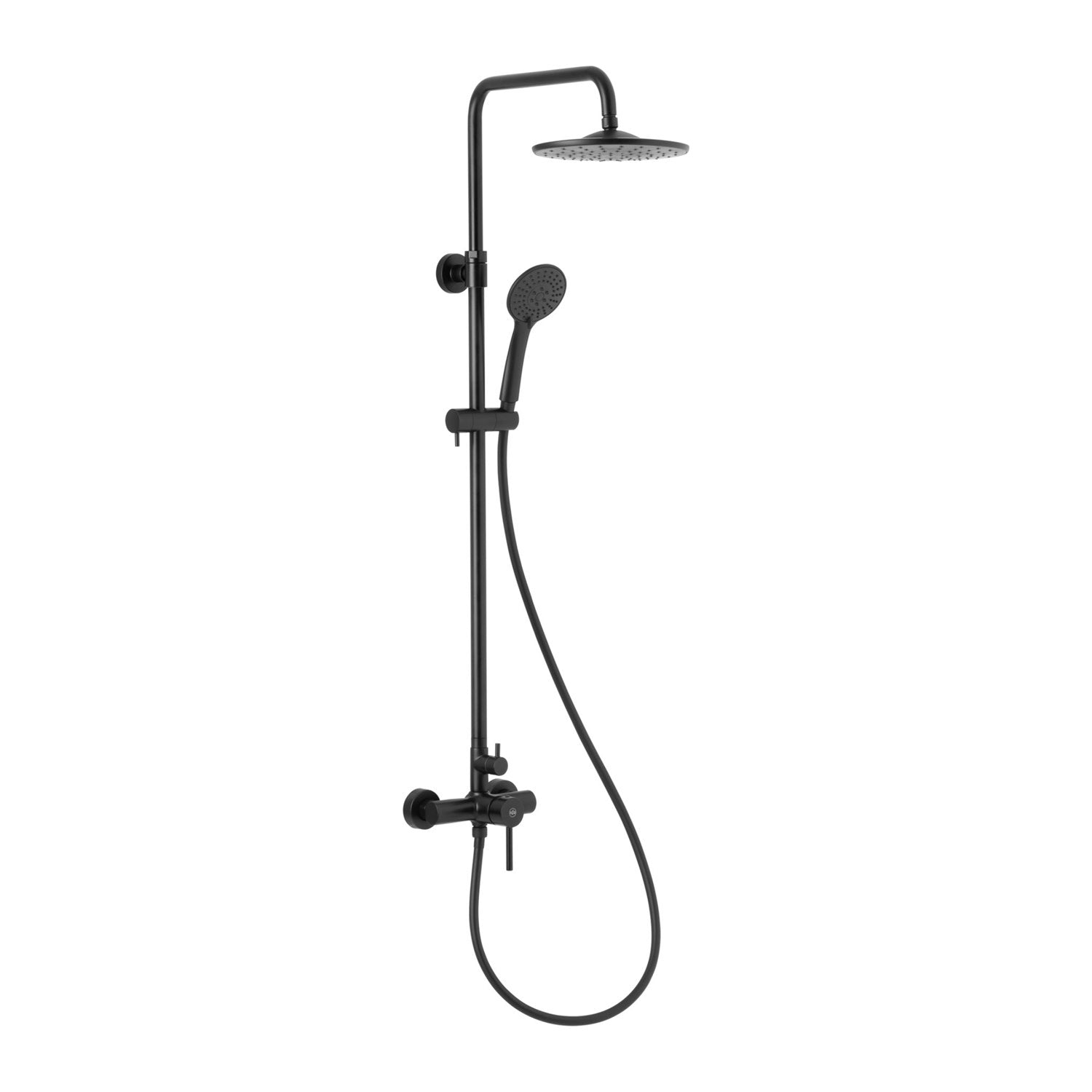

KFA Moza exposed rainshower set with manual mixer in matt black

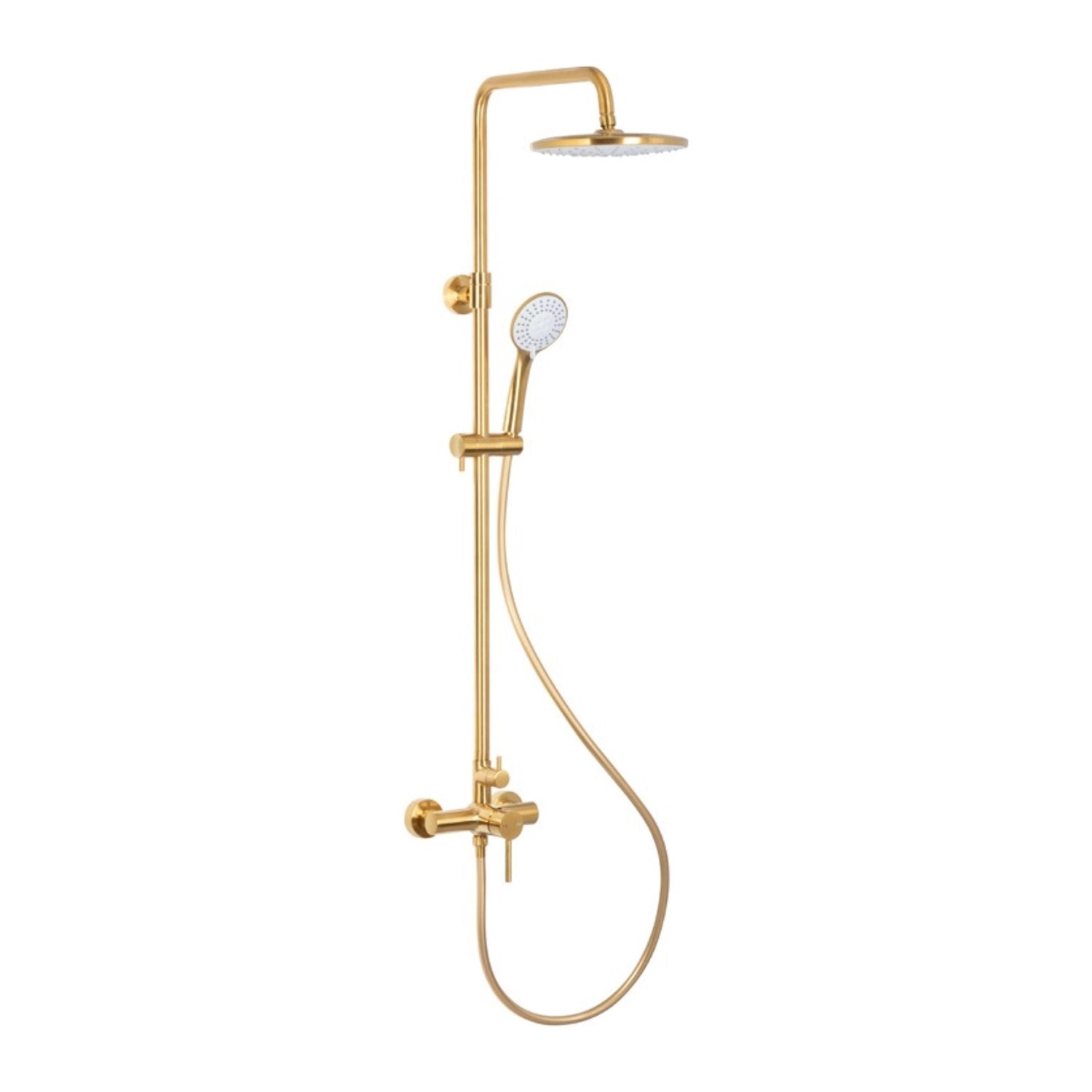

KFA Moza exposed rainshower set with manual mixer in brushed gold

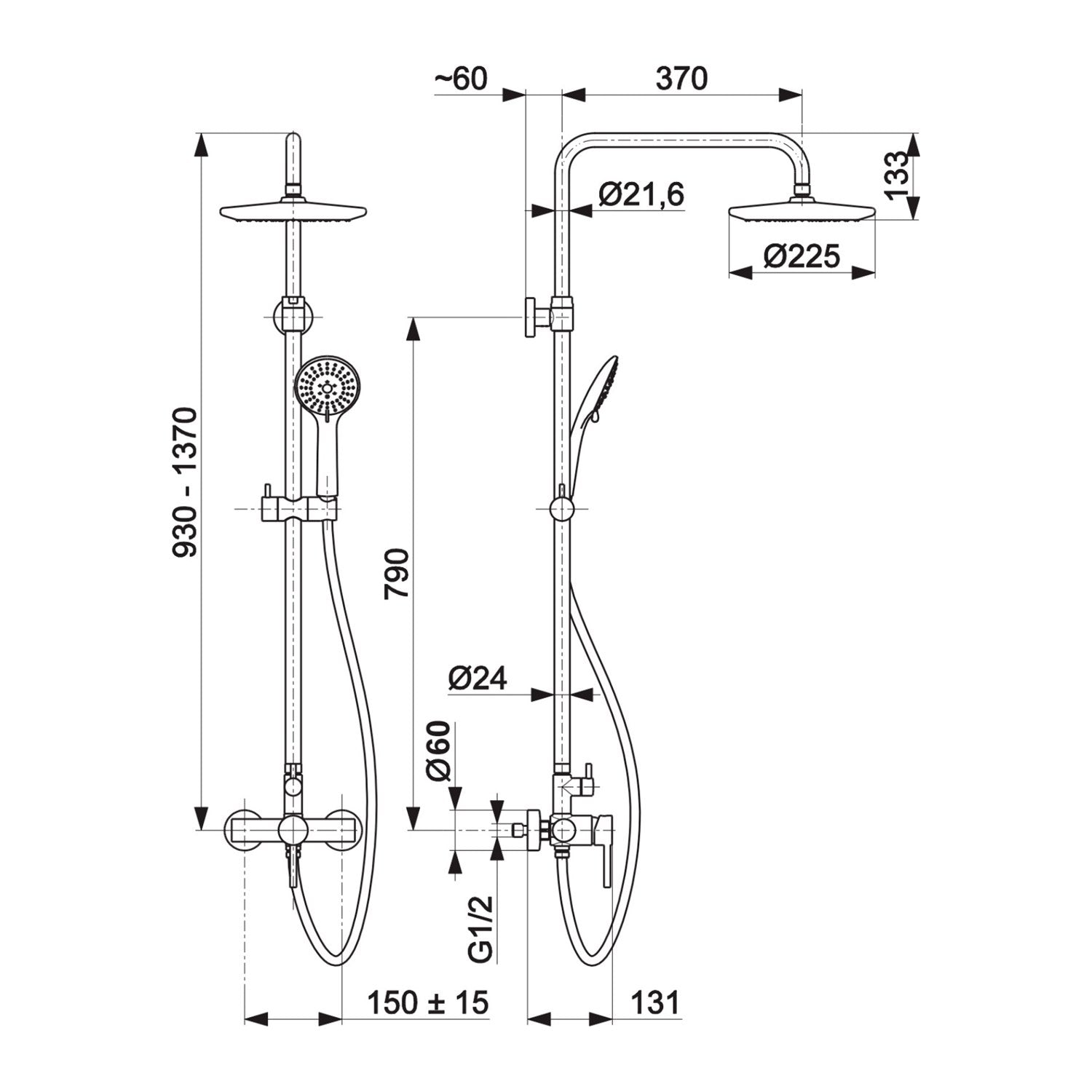

KFA Moza rainshower set 5036-910 technical drawing with dimensions

Moza Rainshower Set with Manual Shower Mixer

Name: Moza Rainshower Set with Manual Shower Mixer
Brand: KFA
SKU: 65698603008349
Price: 260.00 EUR
Availability: InStock

SKU: 5036-910-00

€260

VAT included. Shipping calculated at checkout.

Available to order Estimated delivery: 2–3 weeks

Delivery from €13.95

Colour

Chrome Black Brushed Gold

Have a question before ordering? Message our bathroom experts on WhatsApp. Ask a Question on WhatsApp

Moza Rainshower Set with Manual Shower Mixer Description

A complete exposed shower column in the Moza range: a 225 mm articulated rain head on a rigid bar, a three-spray hand shower on a 1500 mm hose, and a manual single-lever mixer at the bottom. It bolts onto existing 150 ± 15 mm shower feeds, so it replaces an old bar shower in an afternoon with no tiling — eccentrics, rosettes, the bar wall bracket and even assembly gloves are in the box.

This is the manual version: you set the temperature by hand, and it will move if a tap runs elsewhere in the house. If anyone using the shower is very young or elderly, take the thermostatic Moza set instead. Flow is 11.7 l/min at the head and 8.5 l/min at the handset, so it works on a modest system rather than needing a pump. Ø35 mm ceramic cartridge, brass mixer body.

Specification

Product code	5036-910
Material	Brass
Type	Wall-mounted exposed rainshower set, manual mixer
Control element	Ø35 mm ceramic cartridge
Shower head diameter	225 mm, articulated
Hand shower	3 spray patterns
Flow rate	Shower head 11.7 l/min / hand shower 8.5 l/min
Hose	PVC, 1500 mm
Working pressure	3 bar
Max water temperature	90 °C (65 °C recommended)
Connector centres	150 ± 15 mm
Acoustic group	II
Supplied with	Mixer, upper and lower shower bar, articulated head, hand shower, mounting set (2 eccentrics with gaskets and rosettes, 1 bar wall bracket), PVC hose 1500 mm, assembly gloves
Warranty	24 months statutory + KFA 10 years for tightness of the mixer and failure-free operation of ceramic cartridges
Certification	PN-EN 817 / PN-EN 1112 / PN-EN 1113, Construction sign, Hygienic Attestation, National Declaration of Performance

Downloads

Technical datasheet (PDF) — dimensions, EAN and certification. The dimension drawing is also in the gallery. See our returns and warranty policy for how to make a claim.

Part of the Moza range — basin, bidet, bath and shower mixers in matching finishes.
