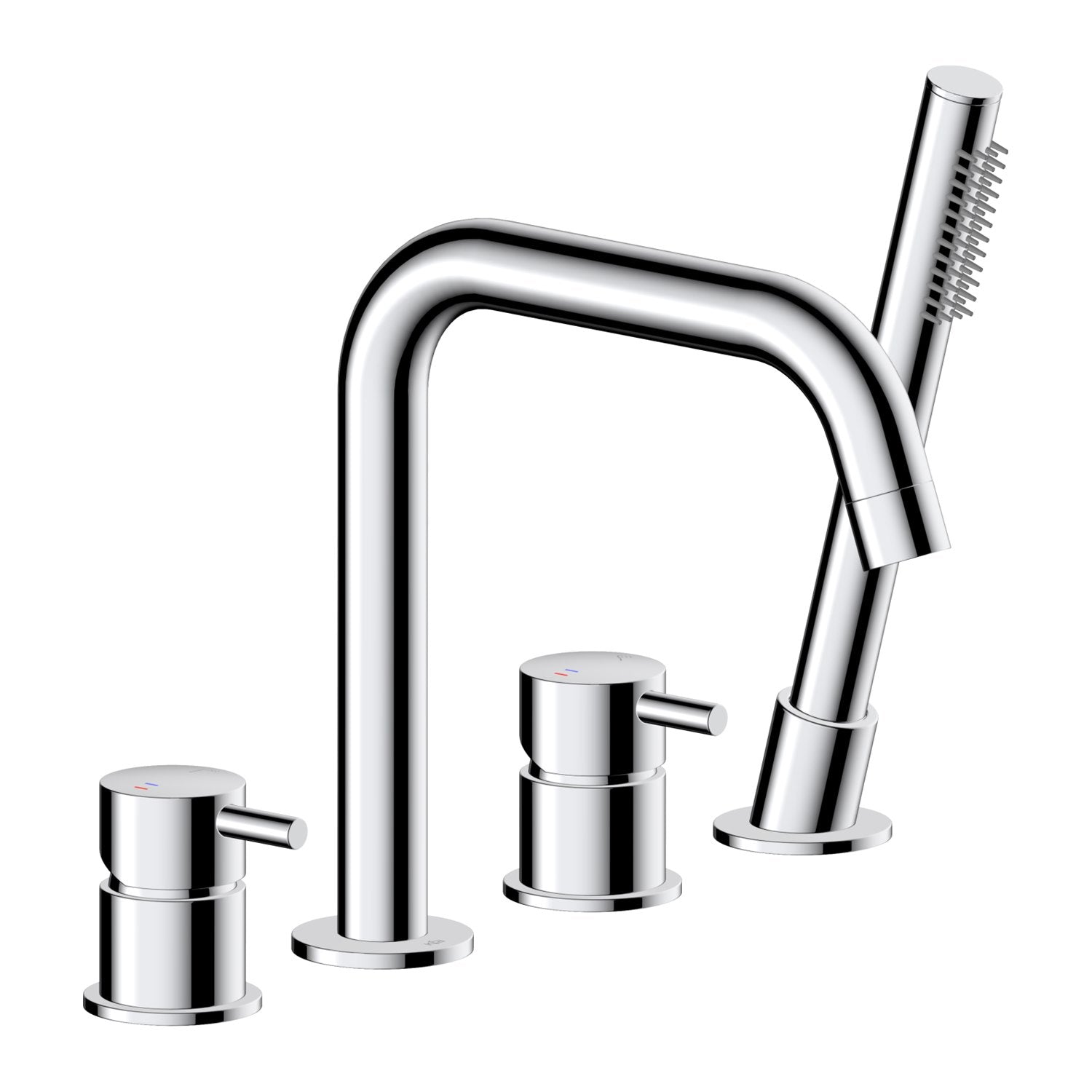

KFA Moza 4-hole deck-mounted bath mixer with hand shower in chrome

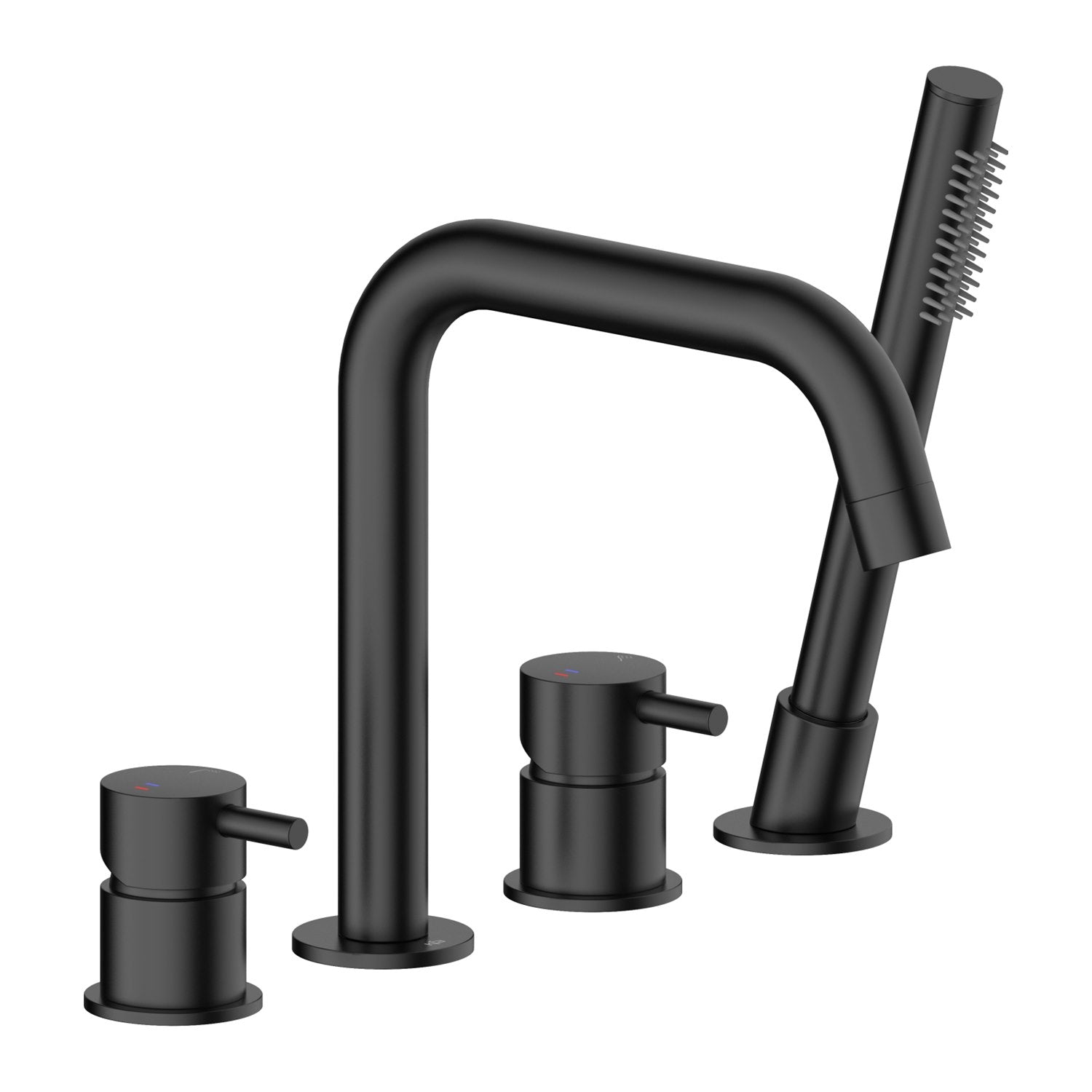

KFA Moza 4-hole deck-mounted bath mixer with hand shower in matt black

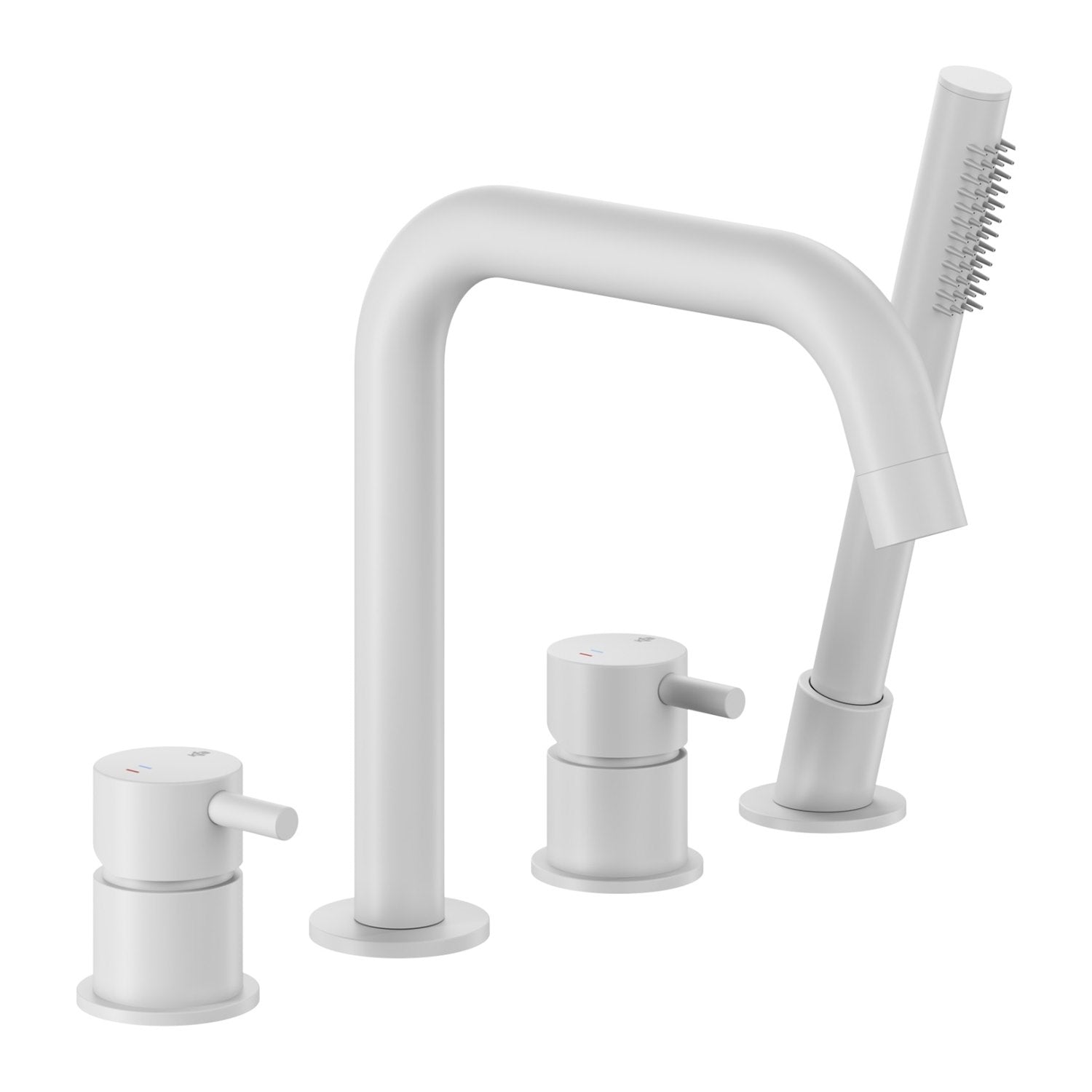

KFA Moza 4-hole deck-mounted bath mixer with hand shower in matt white

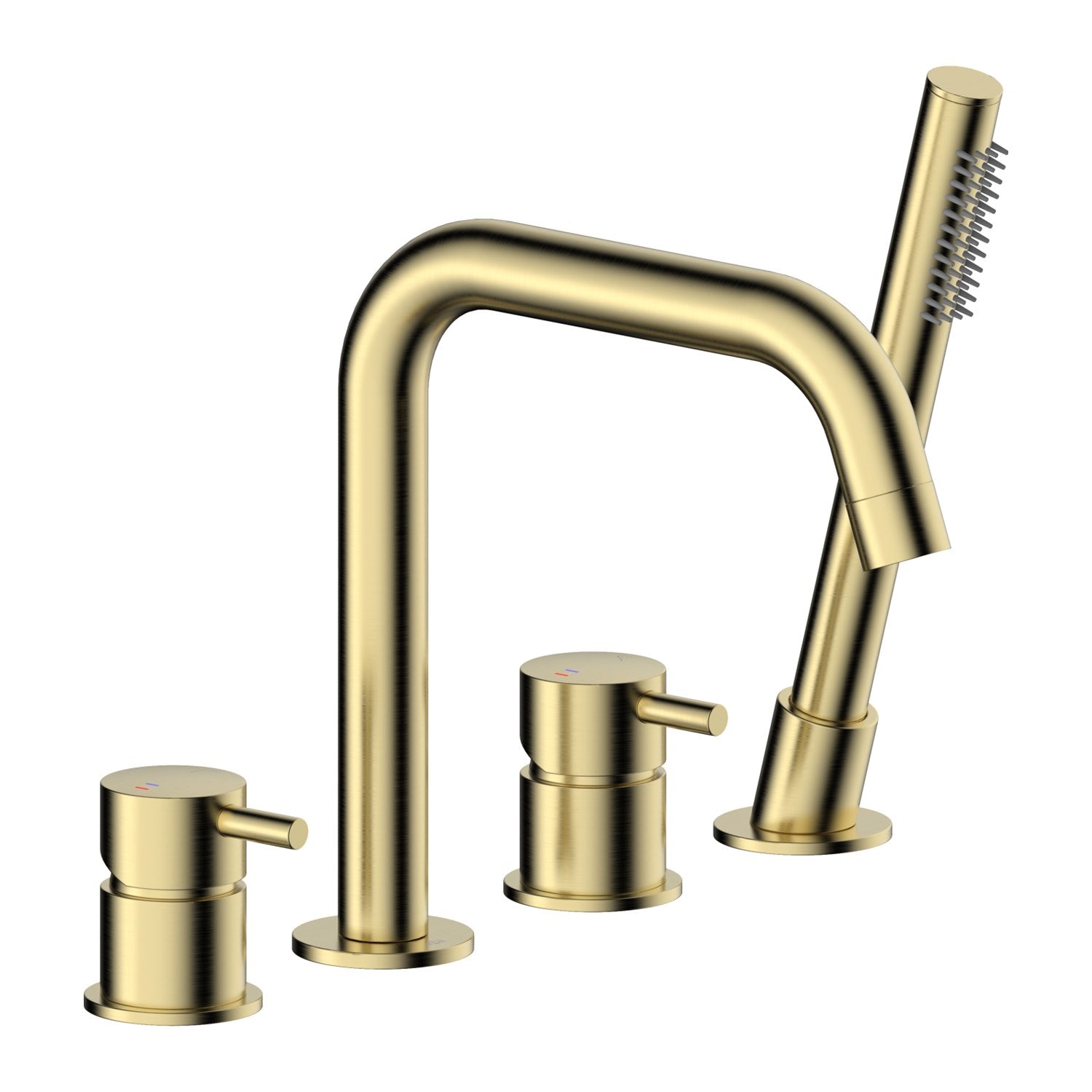

KFA Moza 4-hole deck-mounted bath mixer with hand shower in brushed gold

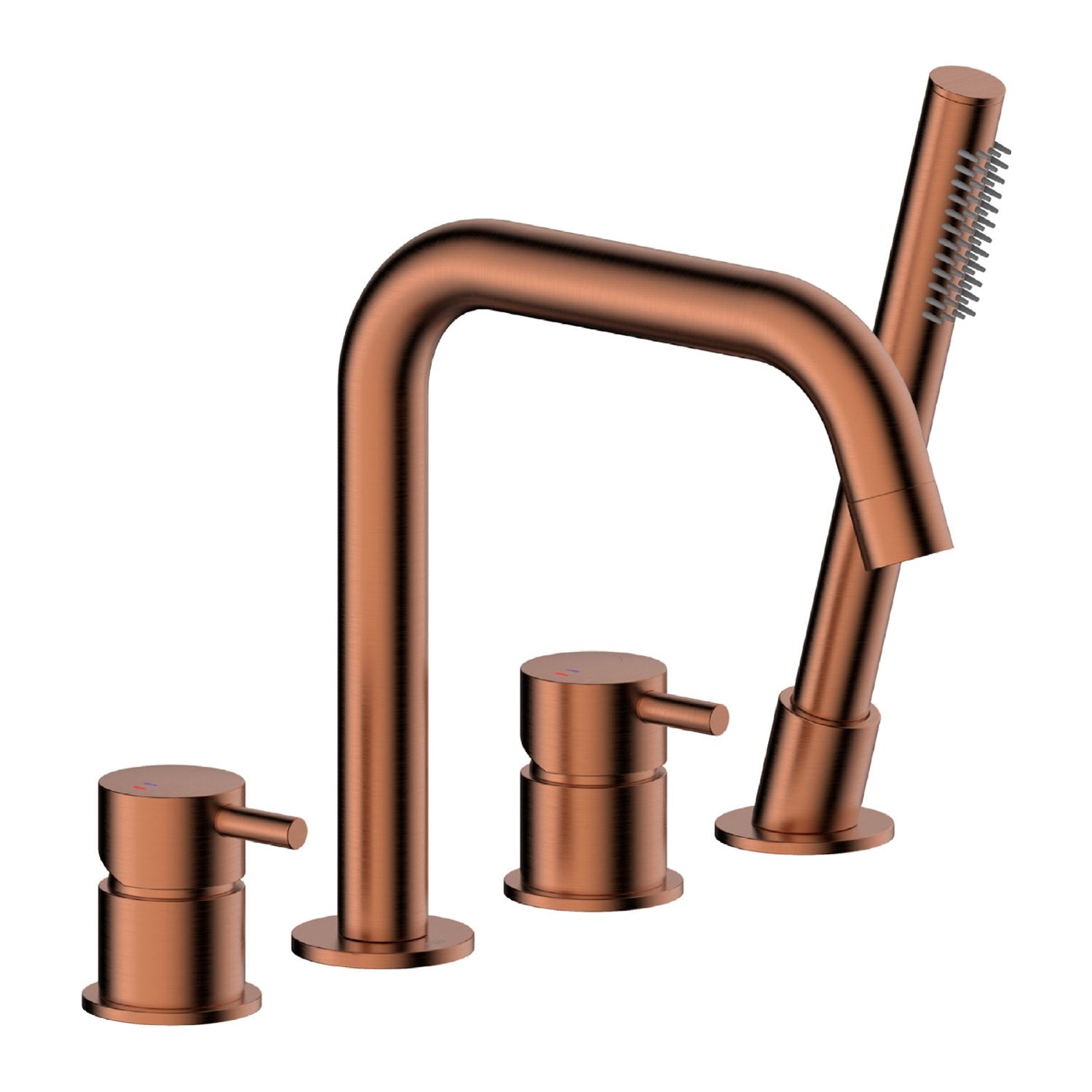

KFA Moza 4-hole deck-mounted bath mixer with hand shower in brushed rose gold

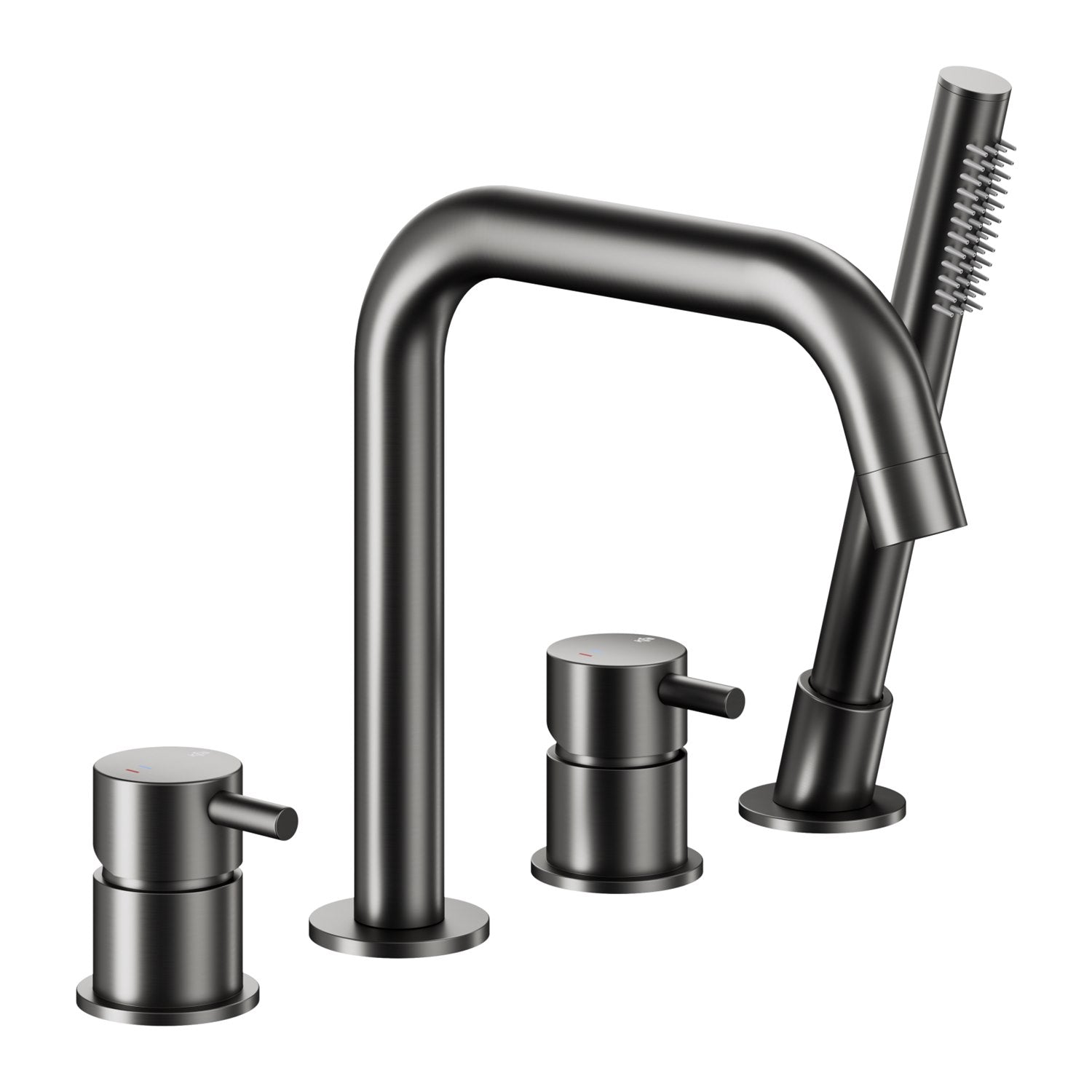

KFA Moza 4-hole deck-mounted bath mixer with hand shower in gun metal grey

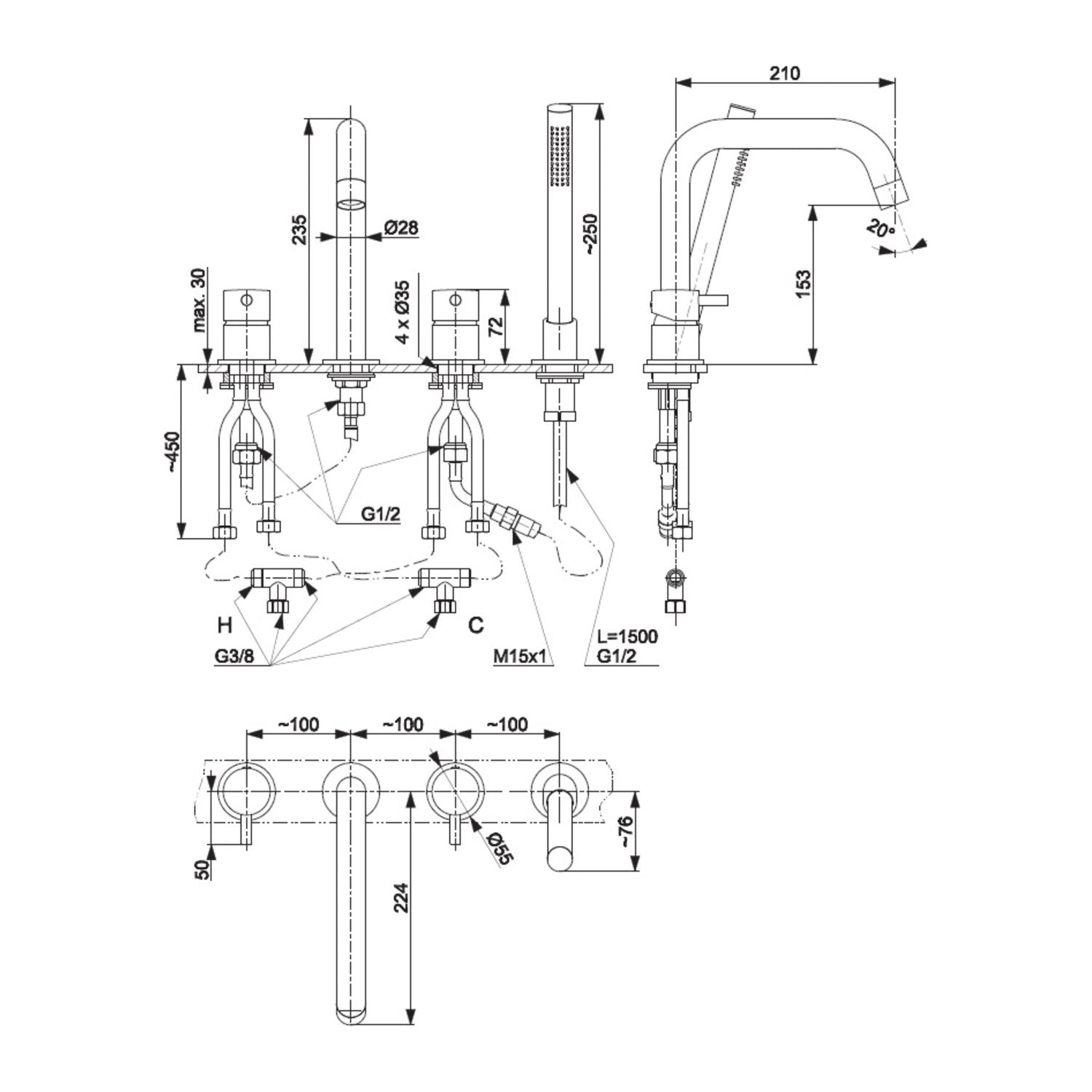

KFA Moza 4-hole bath mixer 5035-210 technical drawing with dimensions

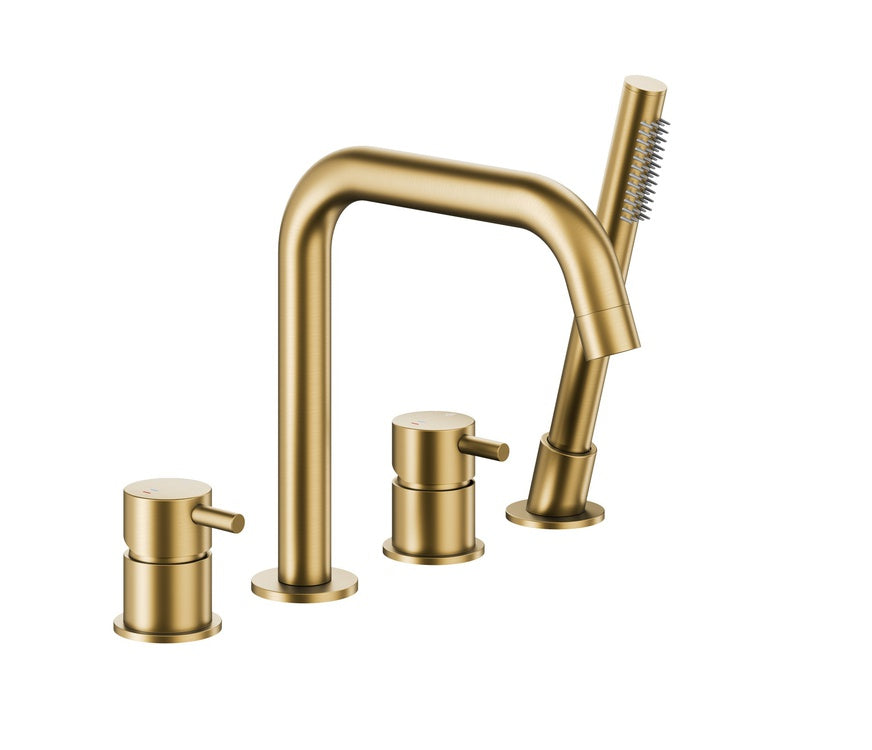

KFA Moza 4-hole deck-mounted bath mixer in brushed light gold

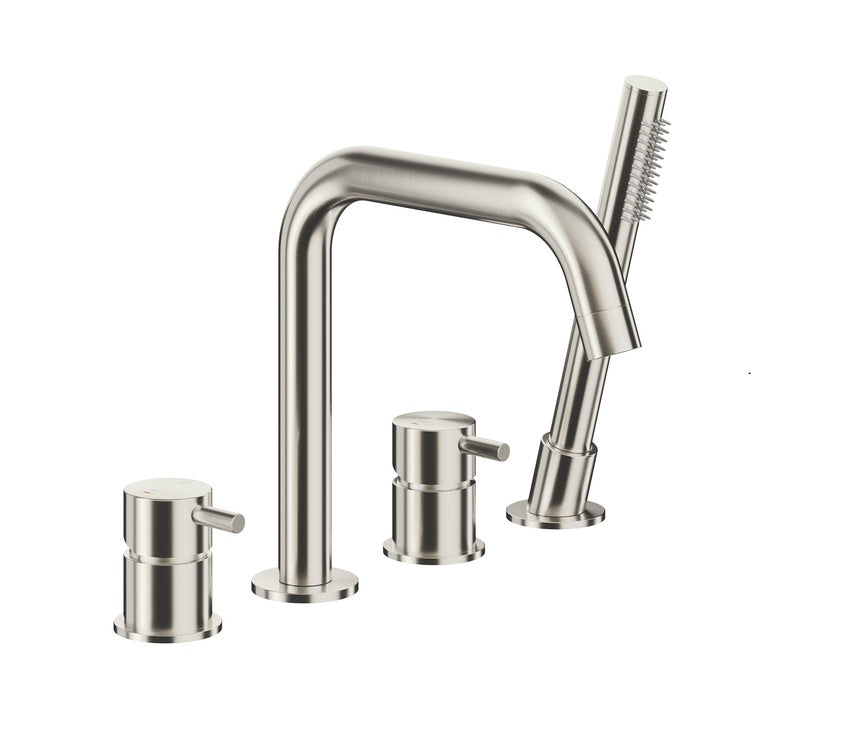

KFA Moza 4-hole deck-mounted bath mixer in brushed nickel

Moza 4-Hole Deck-Mounted Bath Mixer with Hand Shower

Name: Moza 4-Hole Deck-Mounted Bath Mixer with Hand Shower
Brand: KFA
SKU: 65698580988253
Price: 327.00 EUR
Availability: InStock

SKU: 5035-210-00

€327

VAT included. Shipping calculated at checkout.

Available to order Estimated delivery: 2–3 weeks

Delivery from €13.95

Colour

Chrome Black White Mat Brushed Gold Brushed Rose Gold Gun Metal Grey Brushed Light Gold Brushed Nickel

Have a question before ordering? Message our bathroom experts on WhatsApp. Ask a Question on WhatsApp

Moza 4-Hole Deck-Mounted Bath Mixer with Hand Shower Description

The four-hole Moza bath set, mounted through the bath rim or a tiled surround instead of the wall: a 210 mm spout, a single lever, a diverter and a hand shower on a 1500 mm nylon hose. Everything you need is in one box — spout, diverter body, handset, hose, mounting kit, flexible connectors, holders, hose guide and the weight for the hose.

Two things to check before ordering. It needs four holes drilled at 100 mm centres, which a standard acrylic bath will not have: you need a bath with a tap ledge, or a tiled surround. And access underneath afterwards — the connectors and the hose weight all sit below the deck, so a fully boxed-in bath needs a removable panel. Ø35 mm ceramic cartridge, brass body, M22x1 aerator. Six finishes matching the Moza basin and shower mixers.

Specification

Product code	5035-210
Material	Brass
Type	Deck-mounted bath mixer with hand shower
Installation	4-hole
Control element	Ø35 mm ceramic cartridge
Aerator	M22x1
Spout	Fixed, 210 mm
Inlet centres	100 mm
Flow rate	Hand shower 22 l/min / spout 11 l/min
Hose	Nylon, 1500 mm
Working pressure	3 bar
Max water temperature	90 °C (65 °C recommended)
Acoustic group	II
Supplied with	Spout, diverter body, hand shower, shower hose, mounting kit, flexible connectors, holders, hose guide, hose weight
Warranty	24 months statutory + KFA 10 years for tightness of the mixer and failure-free operation of ceramic cartridges
Certification	PN-EN 817:2008, Construction sign, Hygienic Attestation, National Declaration of Performance

Downloads

Technical datasheet (PDF) — dimensions, EAN and certification. The dimension drawing is also in the gallery. See our returns and warranty policy for how to make a claim.

Part of the Moza range — basin, bidet, bath and shower mixers in matching finishes.
