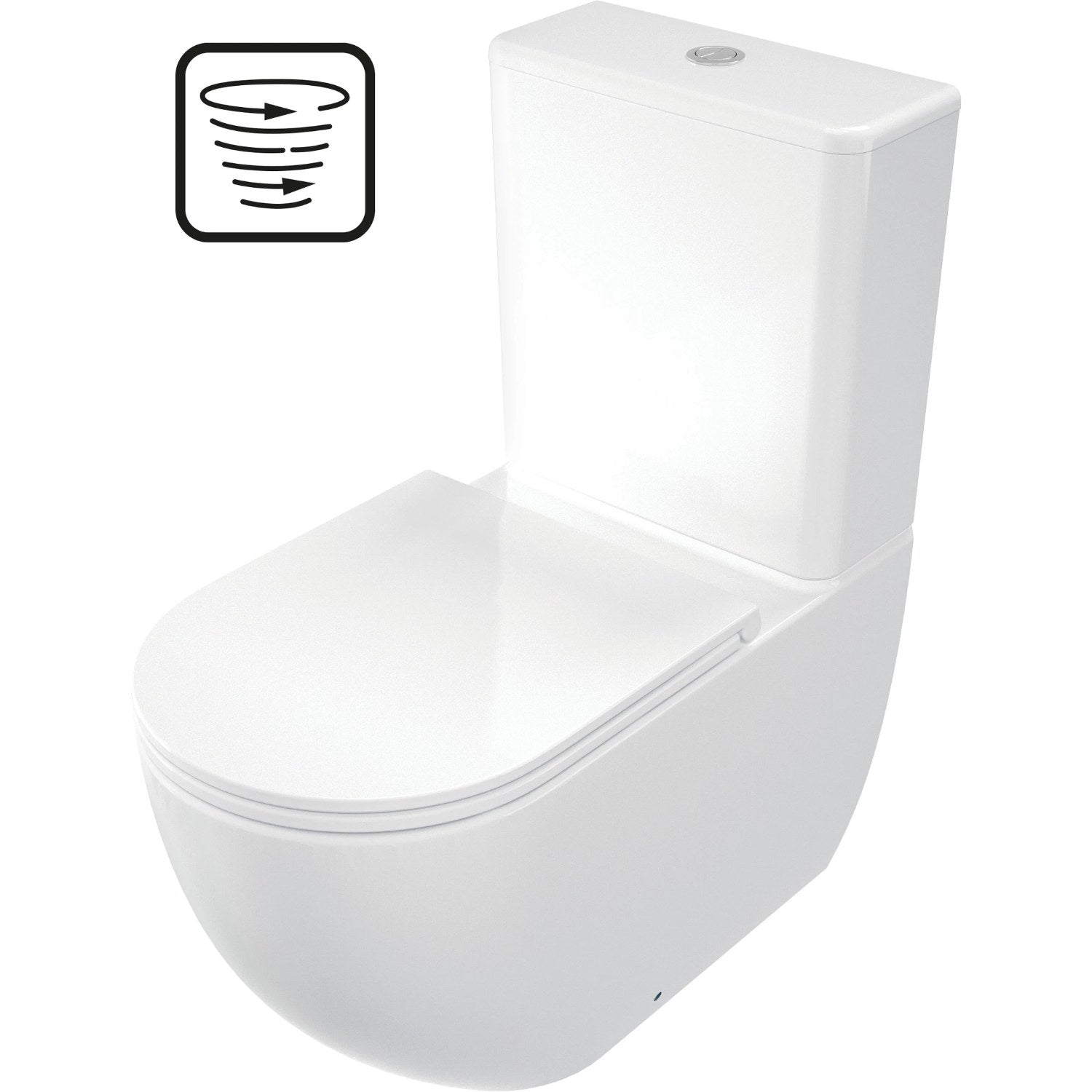

Jasmin Close Coupled Toilet, Rimless, with Soft-Close Seat - 680x380mm

The Deante Jasmin is a close-coupled toilet with a fully shrouded, back-to-wall pan. The ceramic runs right back to the wall, so there's no exposed trap or pipework to clean around, only one smooth surface. The bowl is rimless, with no hidden rim channel for limescale and bacteria to build up in. It comes with a slim soft-close seat that lifts off with a quick-release for cleaning, plus the fixing kit.

Will it fit? Check your soil pipe before you order. The pan has a horizontal outlet (Ø102 mm) centred 180 mm above the floor, so it suits a soil pipe coming through the wall behind the toilet. A floor (vertical) soil pipe needs a suitable pan connector, which isn't included. It projects 680 mm from the wall. The rim sits at 400 mm, which is standard height rather than comfort height. The cold supply connects at the side of the cistern (G 3/8"). The dual flush uses 3 or 4.5 litres, and the flush volume can be adjusted (see the instructions below). It pairs with the Jasmin taps and accessories from the same range.

Specification

• Type: Close-coupled, back-to-wall (fully shrouded)
• Dimensions (L × W × H): 680 × 380 × 810 mm
• Rim height: 400 mm
• Outlet: Horizontal, Ø102 mm, centre 180 mm from floor
• Water inlet: G 3/8", side entry

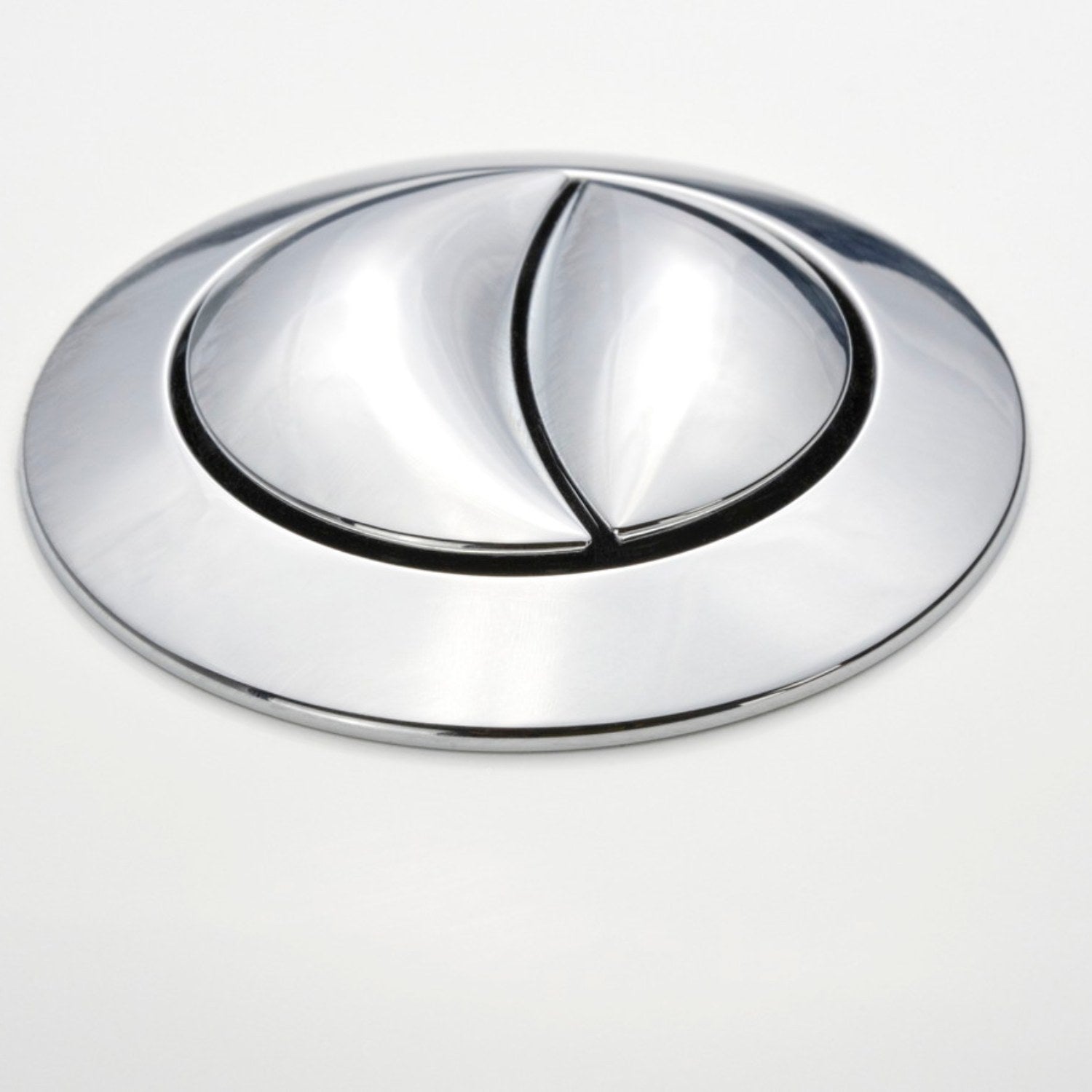

• Flush: Dual, 3 / 4.5 L
• Bowl: Rimless
• Material: Ceramic with antibacterial coating, white

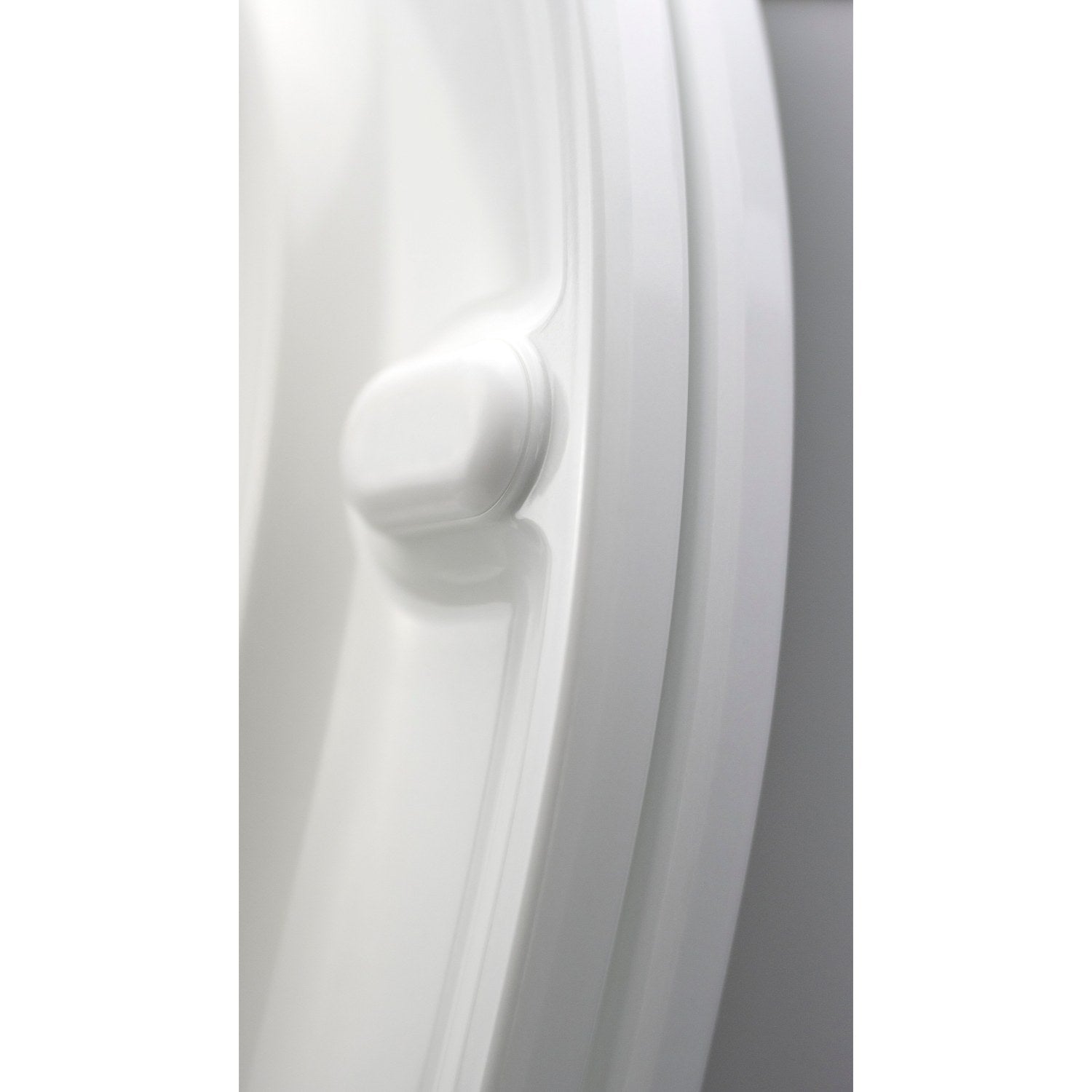

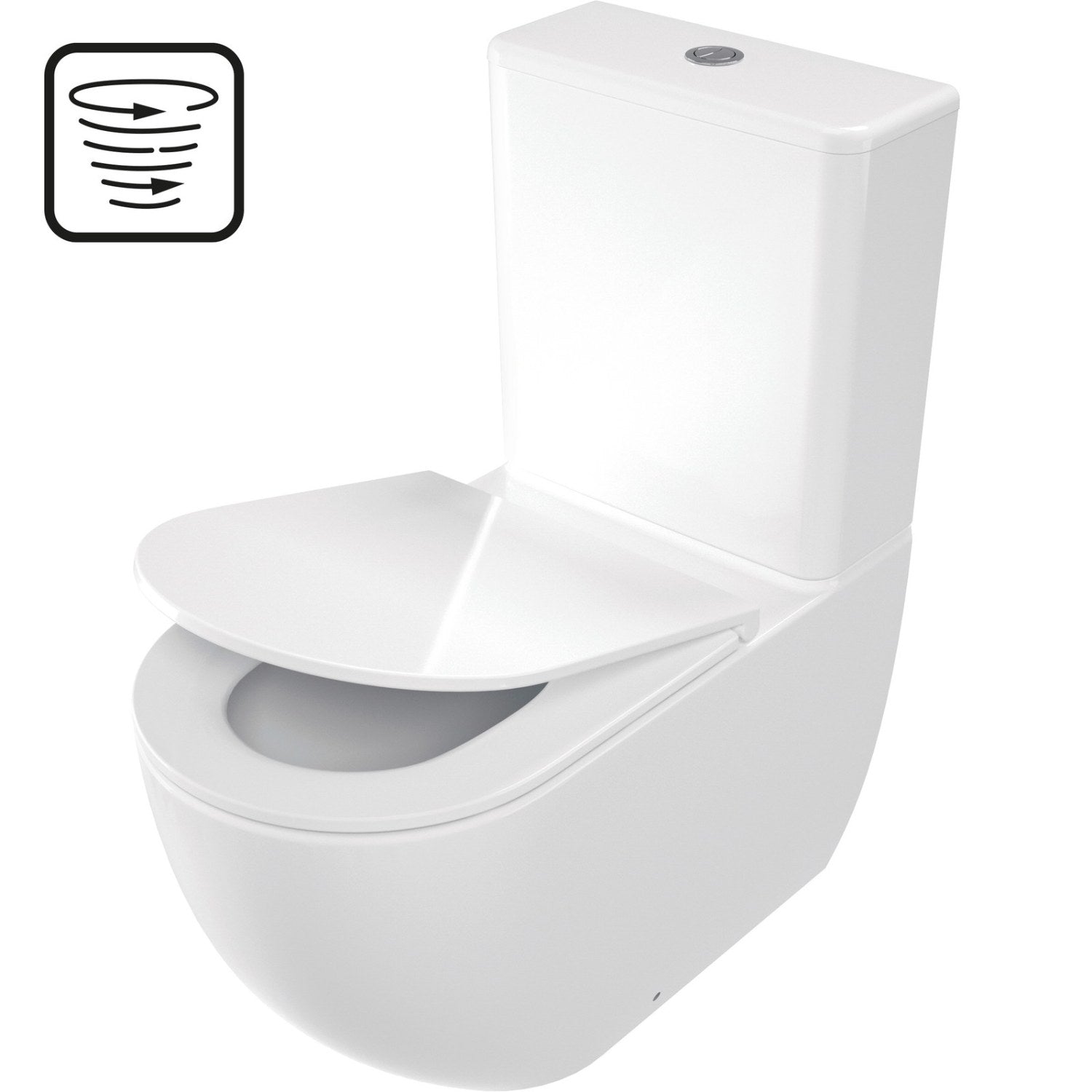

• Seat: Soft-close, quick-release, included
• Fixing kit: Included
• Warranty: 10-year Deante manufacturer warranty (terms in the warranty card), on top of your 24 months' statutory rights. Claims are handled through our returns & warranty policy.
• Certification: PZH hygiene certificate (National Institute of Public Health, Poland)
• Product code: CDJD6RRS · EAN 5908212040638

Downloads

• Technical drawing (PDF)
• Installation manual (PDF)
• Flush volume adjustment (PDF)
• Toilet seat instructions (PDF)
• PZH hygiene certificate (PDF)

Part of the Deante Jasmin range.
