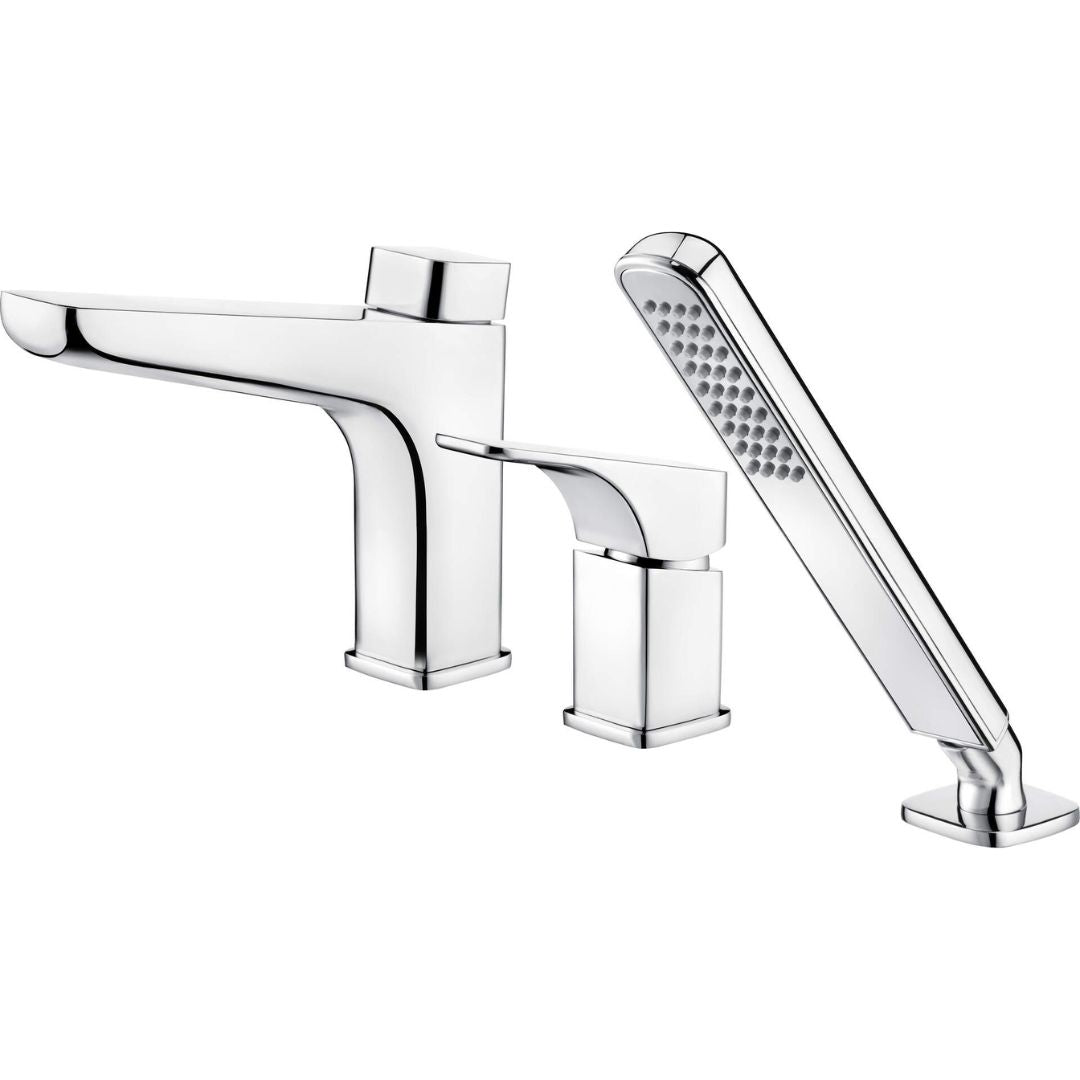

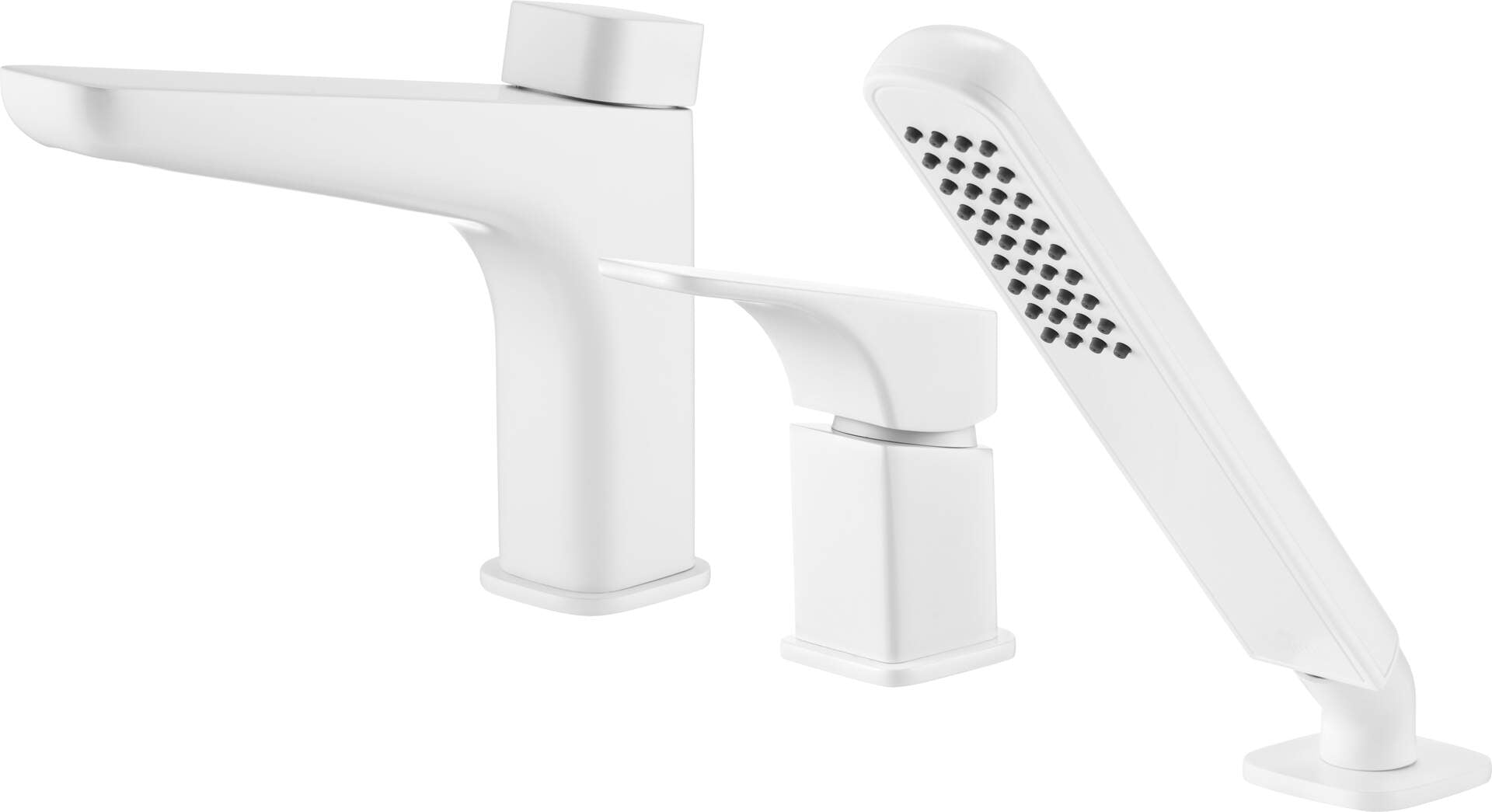

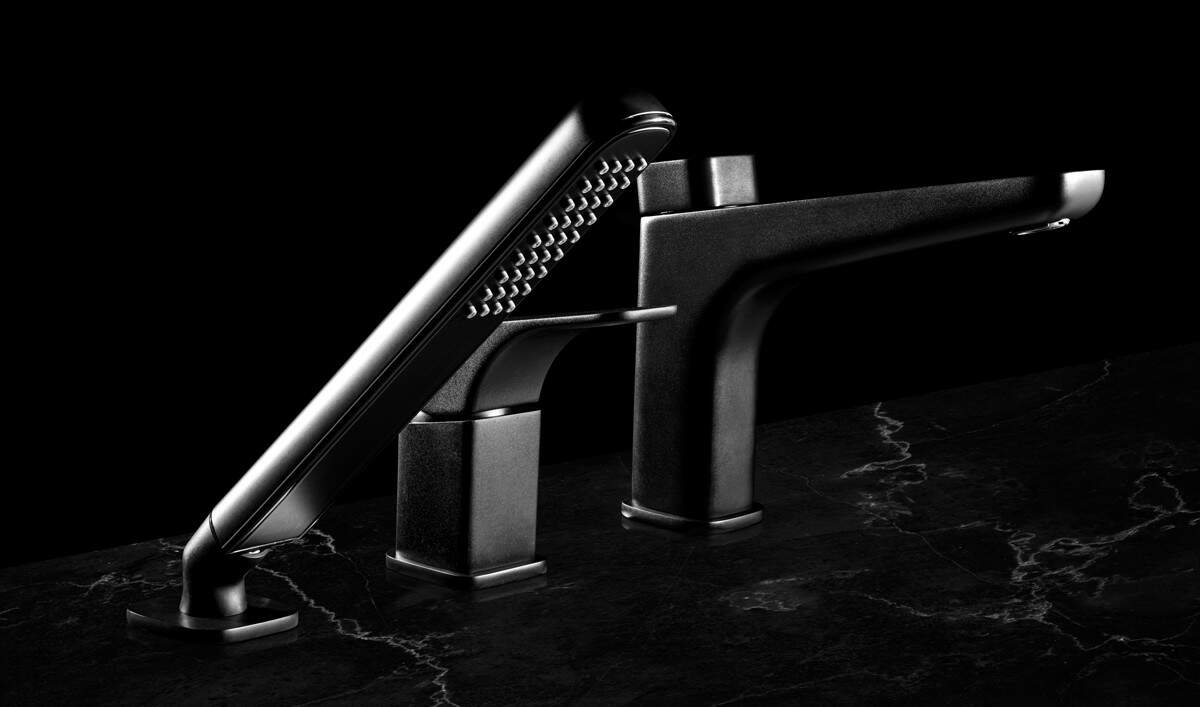

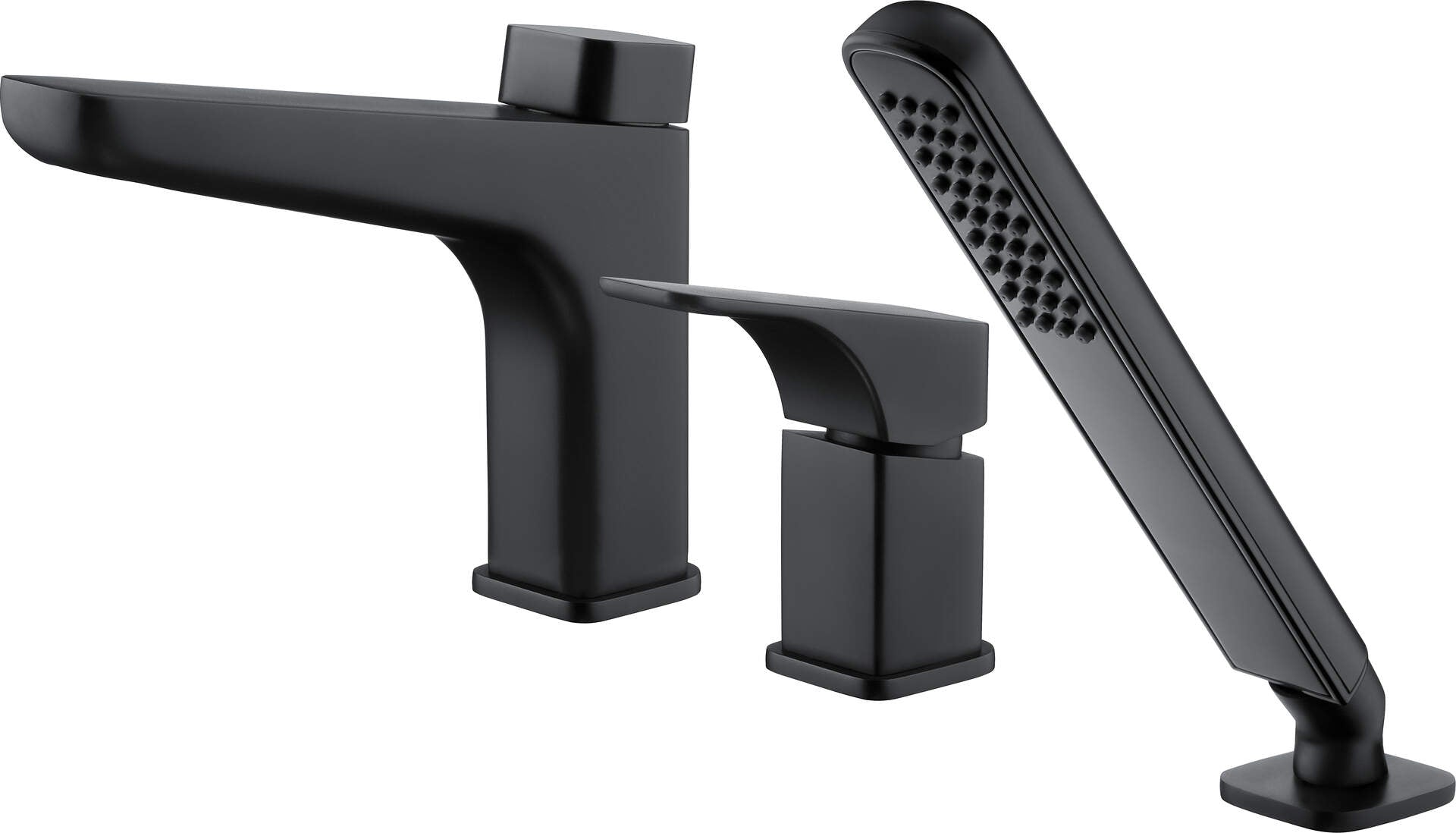

Hiacynt Bath mixer 3-hole

SKU: BQH_013M

Description

• The mixer body is made of the highest quality brass
• The mounting sleeve facilitates the installation of the mixer
• 45 cm connection hoses included
• Only the best materials, the quality of which has been confirmed by laboratory tests
• Durable hose ends made of brass

Modern design with a hint of timelessness

Hiacynt is an original collection designed with attention to detail. The author of the series, Małgorzata Płoskońska, managed to combine modern design with a hint of timelessness. Hiacynt mixers are like elegant and subtle jewelry for the home, whose shapes will add splendor to bathroom interiors. The series is characterized by a dynamic form - soaring arches balanced with straight planes.

The mixer is equipped with a stream aerator

The tap is equipped with an aerator, thanks to which the water stream is perfectly aerated and soft. This solution improves the comfort of use, while limiting water consumption, which translates into lower utility bills. You are also contributing to taking care of our planet.

The movable aerator allows you to direct the water stream

The movable aerator allows you to direct the stream of water and aerates it at the same time. This translates into less use of this valuable resource, while maintaining the comfort of using the mixer.

Mechanical ceramic function switch

Discreet and at the same time a very ergonomic function switch that allows you to change the flow of the water stream even at low pressure.

Anti-calc hand shower

Silicone tabs prevent limescale build-up and thus extend the durability and reliability of the shower head. Just wipe them with your finger and scale deposits disappear in the blink of an eye.

Innovative, durable and easy to clean Nero coating

The black, matte surface of Deante Nero fittings is the result of the use of innovative technology. Its special properties mean that there are no fingerprints on the tap. The surface structure is durable and easy to clean. To remove any dirt, just wipe the tap with a soft cloth. What's more, arranging the interior using a deep black fittings makes the colors surrounding it brighter, fuller and more expressive.

Product specification

Series	Hiacynt
Finish	nero
Mixer type	single-handle, mixer
Installation method	standing
Total mixer height [mm]	164
Flow class [l/min]	S - 15.1-19.8 l/min
Acoustic group [db]	I (x ≤ 20)
Ceramic cartridge size	35 mm
Spout type	still
Mixer spout range [mm]	178
Material	brass
Switch type	ceramic mechanical
Aerator type	flat, laminar
Aerator size	M24
Length [mm]	500
Installation thread	3/8''
Connection thread	M12
Length [mm]	1500
Braid type	double braided
Number of functions	1
Anti-calc	Yes

Files to download

File type	File name	Extension	Download
technicalDrawing	BQH_X13M.pdf	pdf	Download
instruction	Instrukcja_baterie-mixer_manual.pdf	pdf	Download
model3d	BQH_N13M.3ds	3ds	Download
model3d	BQH_N13M.dxf	dxf	Download
model3d	BQH_N13M.obj	obj	Download
model3d	BQH_x13M.skp	skp	Download
warrantyCard	Deante_Gwarancje_Warranty-od-18_05_2021-_19287.pdf	pdf	Download
hygienicCertificate	Atest-PZH-Baterie.pdf	pdf	Download
declaration	Declaration of performance BMIX D6 2020.pdf	pdf	Download
