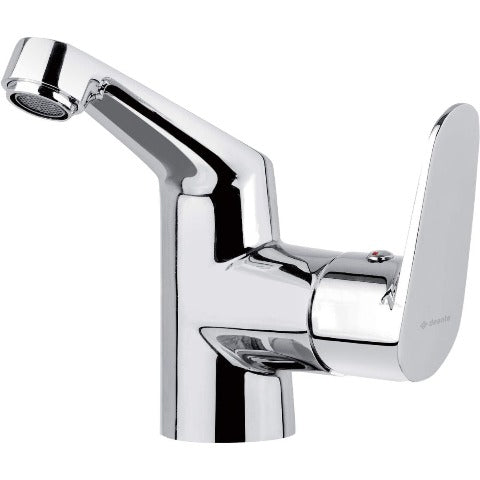

Chaber Washbasin tap with side lever

SKU: BGC_021N

Description

• The mixer body is made of the highest quality brass
• 45 cm connection hoses included
• Only the best materials, the quality of which has been confirmed by laboratory tests

The mixer is equipped with a stream aerator

The tap is equipped with an aerator, thanks to which the water stream is perfectly aerated and soft. This solution improves the comfort of use, while limiting water consumption, which translates into lower utility bills. You are also contributing to taking care of our planet.

Functional click-clack plug included

The Click-Clack plug is a convenient and very elegant way of closing the drain. Unlike manual plugs with a cable, it is not connected to the tap. To close or open the drain, just press the plug with your finger. Simple? Simple as Click-Clack! When choosing a tap with a click-clack plug, remember to pay attention to whether you have a sink with or without an overflow and whether the plug you chose is suitable.

The lever on the side makes it easier to keep the spout clean

The handle located on the side ensures that the tap is kept clean during everyday use. There are fewer stains and lime sediment on the tap. It is also a good solution for low-suspended cabinets, shelves or mirrors.

Product specification

Series	Chaber
Colour	chrome
Mixer type	single-handle, mixer
Installation method	standing
Total mixer height [mm]	145
Flow class [l/min]	A ≤ 15 (9.1 - 15)
Acoustic group [db]	I (x ≤ 20)
Plug included in the set	Yes
Ceramic cartridge size	35 mm
Spout type	still
Mixer spout range [mm]	96
Material	brass
Aerator type	honeycomb
Aerator size	M24
Length [mm]	450
Installation thread	3/8''
Connection thread	M10
Type	click-clack
Type	with overflow

Files to download

File type	File name	Extension	Download
technicalDrawing	BGC_021N.pdf	pdf	Download
instruction	Instrukcja_baterie-mixer_manual.pdf	pdf	Download
model3d	BGC_021N.3ds	3ds	Download
model3d	BGC_021N.dxf	dxf	Download
model3d	BGC_021N.obj	obj	Download
model3d	BGC_021N.dae	dae	Download
model3d	BGC_021N.mtl	mtl	Download
model3d	BGC_021N.STL	STL	Download
warrantyCard	Deante_Gwarancje_Warranty-od-18_05_2021-_19287.pdf	pdf	Download
hygienicCertificate	Atest-PZH-Baterie.pdf	pdf	Download
declaration	Declaration of performance BMIX D5 2020.pdf	pdf	Download
